4Kx2K 4x4 HDMI Splitter - Not a Matrix

4Kx2K 4x4 HDMI Splitter - Not a Matrix
4Kx2K 4x4 HDMI Splitter - Not a Matrix
4Kx2K 4x4 HDMI Splitter - Not a Matrix - Extra Image 1
4Kx2K 4x4 HDMI Splitter - Not a Matrix

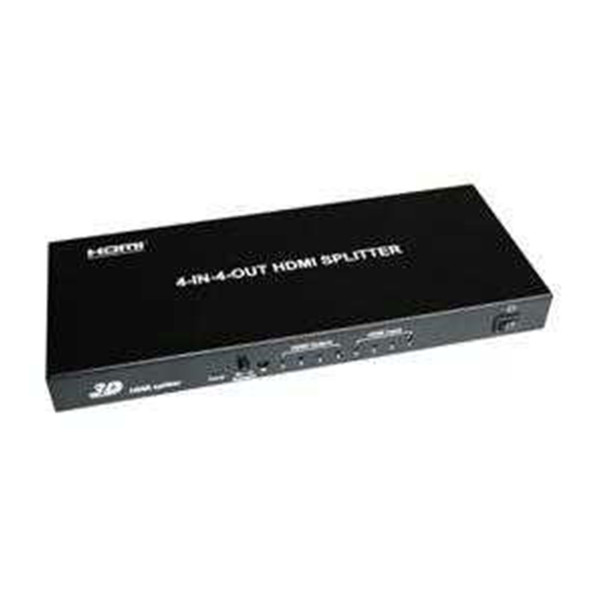

4K 4x4 HDMI Splitter

Switch between 4 devices & send the HDMI video & audio signal to 4-HDMI widescreens all having the same audio & picture

Part # HDTVSXMX41
Usually ships the same business day
Today's Price: $125.00
Ask Our WolfPack Experts

Features

This 4K 4x4 HDMI Splitter allows 1 of 4 HDMI source devices to be switched to 4 HDMI monitors with all 4 showing the same picture. The audio will be the same also. The four inputs accommodate the simultaneous connection of up to four high definition video sources, such as satellite systems and HD DVD players. The four inputs sends the high definition audio/video signals to up to 4 mirrored high definition displays.

When should I buy a 4x4 HDMI Splitter & when should I buy a 4x4 HDMI Matrix Switch?

Buy this 4x4 HDMI Splitter if:
  • Your applications requires all audio and video outputs to be the same
  • You have a limited budget
  • You want the simplest operation
Buy a 4x4 HDMI Matrix switcher if:
  • Your applications requires audio & video outputs to be mixed
  • Your user can learn how to operate and change the ins and outs
  • You need 4K Ultra HD
  • You have more money to spend
This 4x4 HDMI Switcher is equipped with four HDMI female inputs and 4 HDMI female outputs. The 4 outputs are identical and are what you have manually switched from one of the 4 the video inputs on the front panel. The picture is the same on all 4 HDTVs.

4X4 HDMI Splitter Features:

  • Inputs: 4 - HDMI female connectors
  • Outputs: 4 - HDMI female connectors
  • Optional stand alone HDMI extenders over CAT5e/6 composed of a transmitter & AC adapter & a Receiver & an AC adapter
  • Connects up to 4 - HDMI displays at the same time from a digital video source.
  • 4 input selectable by front buttons or the remote control.
  • 2D and 3D compliant.
  • Supports high resolution: 480i、480p、720p、1080i、1080p @24/50/60Hz
  • Supports DTS-HD、Dolby True HD、LPCM 7.1
  • Supports HDCP 1.3a and is HDCP compliant
  • Easy to Use: Install in seconds, no need for setting
  • Support resolution up to Ultra HD 4Kx2K @30Hz 4). Support Dolby True-HD , DTS-HD Master Audio 5).
  • Support bandwidth up to 6.75 Gbps 7).
  • Support 3D
  • Supports 30/36bit deep color display
  • Supports the Video Amplifier Bandwidth up to 2.25Gpbs/225MHz
  • 2D and HDMI 1.3b compliant. FCC CE Certified, RoHS compliant.
  • Input video signal: 0.5-1.0 volts p-p
  • Input DDC signal: 5 volts p-p (TTL)
NOTE: This 4X4 HDMI splitter is not an HDMI matrix switcher and all 4 outputs show the same picture and are dependent of which one of the 4 video inputs you have chosen.

Why not buy this 4x4 HDMI Splitter today?

Reviews

Refurbished

HDTV Supply received back to our company today this 4x4 HDMI Splitter of which the buyer did not want it and did not open the box. It is new and sold with a 1 year warranty, a 30 day No-Hassle return and Free U.S. Based Lifetime Telephone Tech support from us. You can buy it for 5% off of the above already discounted price. First-Come-First-Serve and it won't last long so call 800-841-9238 right now and place your order.

You might also want to consider our 3 and 5 year extended warranty for the 4x4 HDMI Splitter.
Make Offer

Videos

Manuals

3D

HDTV Supply is a leader in supplying 3D equipment for this new, fast growing 3DTV market. Our test lab includes the latest equipment for designing, testing and supporting 3D video equipment. The chips sets we use support the below 3D formats and work with many of our HDMI 1.3 and HDMI 1.4 compliant devices. This 4x4 HDMI Splitter supports these 3D formats:
  • Side-by-Side 3D Format
  • Top-and-Bottom 3D Format
  • Blu-ray 3D Format
  • Frame packing
  • and more
We not only test this 4x4 HDMI Splitter with lab equipment we also test many of our 3D devices with 3D products you are likely to use. The products used for the test are:
  • Sony PS3 with the 3D 3.41 firmware
  • Samsung model PN50C7000YF 3DTV
  • Samsung model BD-C6900 3D Blu-ray player FORCED to 1080p
  • Samsung model SSG-P2100T 3D glasses
  • DirecTV models HR21-100 and the HR24 high definition receiver.
  • HDTV Supply's true HDMI 1.4 cables
  • It works with all HDMI devices including the new 3D units.
The 3D viewing results were awesome in our lab and did not have any picture or audio degradation. The normal and standard (2D) results equally exhibited a superb picture quality.
Q/A

Q: Does this HDMI Switch support remote IR?
A:
No. We recommend using RF remote controls, see the ACCESSORIES Tab.

Q: I see the the HDMI extenders come with 2-remote IR cables, will the remote IR work with this HDMI switch?
A:
No, the cables are used when the application has one source and one widescreen. They can't be used with this switch and need to be set aside and not used.
