4x10 Network HDMI Matrix Switcher with WEB GUI & Remote IR

WolfPack

4x10 Network HDMI Matrix Switcher with WEB GUI & Remote IR
$1,775.00
Part Number:
HDTVSXEX22-04x10
UPC:
613460879699
Condition:
New
Availability:
Discontinued
1:
4x10 Network HDMI Matrix Switch over CAT6
2:
Extends HDMI Signals 300'
3:
Grow with more Transmitters & Receivers
4:
WEB GUI or optional Wireless Control
5:
Remote IR to control source devices from TVs
6:
Includes a 24-port Gigabit Ethernet switch

Out of stock

WolfPack HDMI Switchers HDTV Supplys Wolfpack 4x10 Network HDMI Matrix Switcher is an easy to use HDMI video switching and distribution system that allows the design of multi-source to multi-video display systems using standard Ethernet cables. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination. It is controlled by a PC or MAC via its LAN port with the supplied Browser Based WEB GUI and optionally via a WEB GUI on a cascaded wireless Router.

HDTV Supplys Wolfpack HDMI over IP products, like this one, lets you create 1080p HDMI matrix systems using a dedicated Gigabit network and CAT-5e/6 cabling. Many combinations of HDMI inputs and HDMI outputs is possible that can be easily expanded for additional HDMI sources and HDMI TVs and projectors given ports are available on the supplied 24-port Gigabit Ethernet switch.

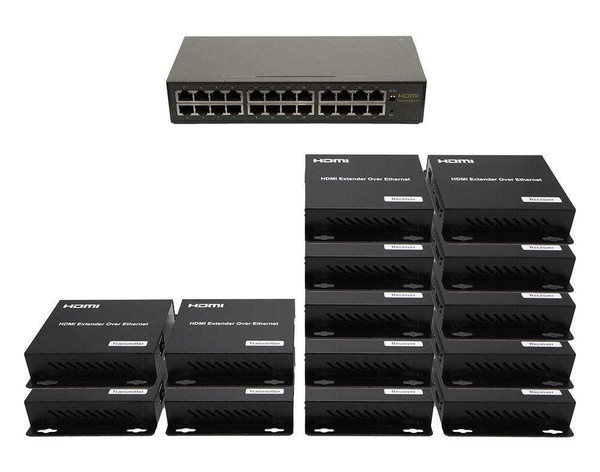

Our Wolfpack 4x10 Network HDMI Matrix Switch is a preconfigured matrix switch using 4 - Transmitters and 10 - Receivers and our 24 - port Ethernet Switch. It uses CAT 5e/6 cables and a Gigabit Ethernet LAN switch with MJPEG techniques and an industry standard IP protocol to deliver 1080p video from sources that are 300 feet away from the Ethernet switch and another 300 feet away to the TVs. It also allows the system to grow in the field as its design allows you the flexibility of adding more video sources or more displays to the system based upon the number of unused Ethernet ports available.

4x10 Network HDMI Matrix Switcher Configuration:

  1. 4 - Transmitters with their AC adapters
  2. 10 - Receivers with their AC adapters
  3. 1 - 24-port Gigabit Ethernet switch

4x10 Network HDMI Matrix Switcher Features:

  • Supports 720p and 1080p HDMI video plus 2-channel audio
  • Plug-and-play operation - no programming or setup required
  • Extends 1080p HDMI signals up to ~300 feet over a single CAT6/7 cable
  • Traffic can be unicast, multicast or broadcast for different applications
  • Allows Wideband IR remote control of sources devices
  • Control from a Browser Based GUI
  • Compliant with HDCP 1.2
  • Uses our Gigabit IP switches for extension and distribution
  • Extends 1080p HDMI signals up to 300 feet over a single UTP CAT6/7 cable
  • Flexible and scalable 1080p HDMI broadcasting via an included Gigabit Ethernet switch (LAN)
  • Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading .
  • Supports Point-to-Point, Point-to-Many and Many-to-Many network configurations.

CAUTION: This HDMI Matrix Switcher Over a LAN system requires a dedicated HDMI video system using the supplied Ethernet switch and not attached to any existing LAN system due to the unknown bandwidth impact on the HDMI video from that network. A single, dedicated, LAN must be used to keep it from interfering with the rest of an existing LAN or vice versa. With all devices in a single LAN, switching sources involves modifying the IP of the Receiver rather than actively manipulating the LAN configuration of the managed switch. The design needs to meet these specs:

  1. One Dedicated LAN
  2. No other network appliances in the LAN
  3. Unique subnet
  4. No other network appliances in the subnet

NOTE: This Network Matrix comes with HDMI Transmitters and HDMI Receivers and each of them needs the IP address to be setup based upon your needs. The MAC address also needs to be setup based upon your unique system configuration. Please see the above VIDEOS on how to do it.

Why not buy this 4x10 Network HDMI Matrix Switcher today?

4x10 Network HDMI Matrix Switcher Specs:

  • Supports default configuration which can be restored to overwrite the current configuration which is working on via Web GUI and Reset button of the switch.
  • Supports user management and limits one user to login.
  • 8K MAC addresses.
  • Full-duplex flow control (IEEE802.3x) and half-duplex backpressure.
  • Supports Unknown Unicast / Broadcast / Multicast Storm Control.
  • Input Video Signal: 0.5-1.0 Volts P-P
  • Input DDC Signal: 5 volts p-p (TTL)
  • Support Video Format DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
  • Video: HDMI
  • Transmission Distance: 1080p 8-bit 120m (Maximum) via Single CAT6/7 24AWG/Solid
  • Power Consumption: TX: 3watts; RX: 3 watts (Maximum)
  • IR Wavelength: 940nm
  • Operating Temperature Range: -5degree +35degreeC (+23 to 95degree F)
  • Operating Humidity Range: 5 to 90% RH (No Condensation)
  • Dimension (LxWxH): 103.5*93.5*24.6mm
  • Net Weight: Receiver: 220g Transmitter: 220g
The base model of this 4x10 Network HDMI Matrix Switch is at WolfPack Network HDMI Matrix Switchers.

Why not buy this 4x10 Network HDMI Matrix Switcher today?

Q: I don't see a picture, what do I do?
A: Did you change the MAC addresses of the transmitters and receivers? Also in the switch do you have the ports setup to inputs and outputs?

Q: I cannot get logged into the matrix switch. I've assigned an IP address as described in the instructions but cannot get the GUI to load on the browser.
A: We have found Firefox works best to get to the GUI.

Q: Does a HDMI Over IP Network Matrix come with a remote control or front panel switches?
A: No, it is controlled by a PC or a MAC only via its LAN port or optionally wirelessly via the above Wireless WEB GUI Control option.

Q: How do I wire it?
A: Here are the steps:

  1. Connect the HDMI signal sources (Such as DVD, STB etc) to the HDMI Transmitter
  2. Connect CAT6 or 6 cables to both the Ethernet of the transmitter and Ethernet port of the Receiver. (The cables must follow the standard of EIA-TIA 568B).
  3. Connect the HDMI output (Such as HD-LCD, HD-DLP) into the Receiver
  4. Plug in all the power supplies
  5. Connect the IR TX receiving cables into IR TX port on the back panel and affix the emitter onto the source IR windows.
  6. Connect IR-RX cable into IR-RX port on the receiver and affix the IR receiver in direct line of site with the handheld remote control. It is recommended to affix the receiver on the display frame /bezel or the display stand

What Is a WolfPack Fixed HDMI Matrix Switcher?

A WolfPack Fixed HDMI Matrix Switcher is a single-chassis device that routes any HDMI source — such as a cable box, satellite receiver, streaming player, or computer — to any TV or display in a building, simultaneously and independently. Unlike an HDMI splitter (which sends one source to many screens) or a simple HDMI switch (which selects one source for one screen), a matrix switcher lets you show a different channel on every TV at the same time. HDTV Supply has sold WolfPack fixed matrix switchers to sports bars, restaurants, hotels, churches, schools, and commercial AV integrators since 2000.

Fixed vs. Modular: Which Do You Need?

WolfPack comes in two families: Fixed and Modular. Fixed matrix switchers have a set number of inputs and outputs built into one box — for example, 4 inputs × 4 outputs (4×4) or 8 inputs × 8 outputs (8×8). They are plug-and-play, rack-mountable, and the right choice when your input/output count won't change. Modular matrix switchers use a chassis with swappable I/O cards, scaling from a few ports up to 80×80 or beyond. If you know exactly how many sources and screens you need today, a fixed unit is typically lower cost and simpler to deploy.

Available Fixed WolfPack Configurations

HDTV Supply offers WolfPack Fixed HDMI Matrix Switchers in the following sizes:

  • 4Ă—2 — 4 sources to 2 displays
  • 4Ă—4 — 4 sources to 4 displays
  • 8Ă—8 — 8 sources to 8 displays
  • 8Ă—9 — 8 sources to 9 displays
  • 16Ă—16 — 16 sources to 16 displays
  • 16Ă—32 via CAT6 — extends signal up to 450 feet over CAT6 cable

Select models include built-in video wall processing, multiview, and picture-in-picture (PIP) — allowing two or more sources to display on a single screen simultaneously.

Control Options for Fixed Matrix Switchers

Every WolfPack Fixed HDMI Matrix Switcher supports multiple control methods so you can integrate it into any environment:

  • Front-panel buttons — manual source switching directly on the unit
  • IR remote control — included with most models
  • RS-232 serial control — for integration with Crestron, Control4, AMX, and similar systems
  • TCP/IP (LAN) control — send hex commands over your network from any device
  • Web GUI — browser-based interface for switching without additional software
  • Free iOS and Android apps — available for select WolfPack models

For RS-232 hex command strings and TCP/IP control protocols, see our WolfPack HEX Code Reference and TCP/IP Control Guide.

Frequently Asked Questions

What is the difference between a fixed HDMI matrix switcher and a modular HDMI matrix switcher?

A fixed HDMI matrix switcher has a set number of HDMI inputs and outputs built into a single unit — for example, 8 inputs and 8 outputs. A modular matrix switcher uses a chassis with interchangeable I/O cards, so you can configure it for many different port counts and expand it later. Fixed units are simpler and more affordable; modular units offer flexibility for larger or changing installations.

Can a WolfPack fixed matrix switcher show different channels on different TVs at the same time?

Yes. A matrix switcher routes any input to any output independently. In an 8×8 configuration, all 8 displays can show 8 completely different sources simultaneously, or multiple displays can share the same source — in any combination you choose.

Can I control a WolfPack fixed matrix switcher from a Crestron or Control4 system?

Yes. WolfPack Fixed HDMI Matrix Switchers support RS-232 and TCP/IP control, which are standard integration protocols supported by Crestron, Control4, AMX, and other third-party control systems. HDTV Supply provides hex command strings and driver documentation to support custom integrations.

What resolution do WolfPack Fixed HDMI Matrix Switchers support?

Resolution support varies by model. WolfPack fixed matrix switchers are available in 1080p (Full HD) and 4K 30Hz configurations. Select 4K models also support HDR and HDCP 2.2. Always check the individual product specification sheet for confirmed resolution, color depth, and HDCP version.

How far can I run HDMI from a WolfPack fixed matrix switcher?

Standard HDMI outputs on fixed matrix switchers support runs up to approximately 25–50 feet depending on cable quality and resolution. The WolfPack 16×32 model transmits over CAT6 cabling for distances up to 450 feet per run. For longer distances with other fixed models, HDMI extenders can be added at each display.

What is the best HDMI matrix switcher for a sports bar?

For sports bars with up to 16 TVs, a WolfPack Fixed 16×16 HDMI Matrix Switcher is a popular choice — it handles 16 independent sources (cable boxes, satellite receivers, streaming devices) and routes any of them to any TV. For larger venues with 20–80+ TVs, HDTV Supply's WolfPack Modular Matrix Switchers or AV Over IP systems are typically the better fit. Call 833-WOLFPACK (833-965-3722) for a free consultation.
