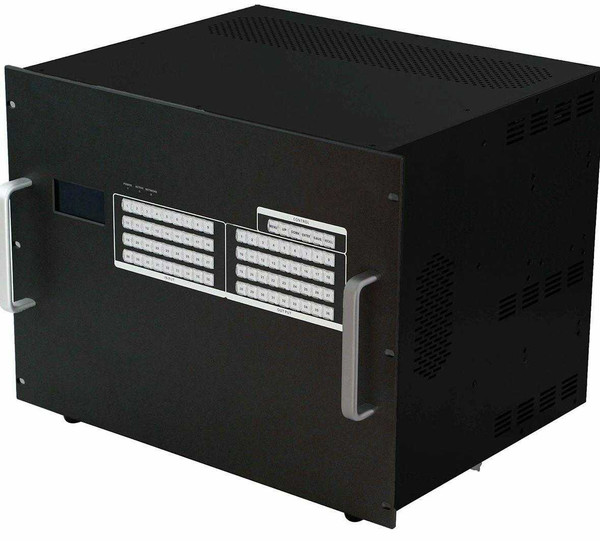

WolfPack 16x32 HDMI Matrix Switcher with Video Wall Processor

Control via an iPad, Android, Web GUI, RS232 & Front Buttons

Instant 100ms Seamless Switching

Create Multiple Video Wall Layouts with a WEB GUI

Embedded Audio Inputs Cards

Input Cards have 8-pin DIP Switch for Resolution Adjustments

Order Information
Part Number:MM16x32VW
Price:$6,100.00
Availability:Usually ships in 1-2 weeks
Quantity:
Show All Tabs

Features

WolfPack HDMI Switchers HDTV Supply's WolfPack™ 16x32 HDMI Matrix Switcher with Video Wall is a preconfigured HDMI video & HDMI audio modular HDMI matrix Switcher. The 36x36 chassis back plane allows HDMI to be converted & switched eliminating external converters. It allows any input to be routed to any output, or the same input to be routed to all outputs. The internal Video Wall processor allows you to create custom video wall layouts via our easy to use WEB GUI. The HDMI input card has built-in 8-pin DIP Switch for resolution adjustment and supports a 3.5mm audio embedded input.

The core of the WolfPack 16x32 HDMI Matrix Switcher with Video Wall consists of a 36x36 Modular Matrix chassis & its highly configurable backplane that supports 36 input cards & 36 output cards. You can control the 16x32 HDMI Matrix Switcher with Video Wall via front panel buttons, WEB GUI control, TCPIP, the RS-232 serial port & the supplied iOS/Android App. The matrix does not have IR nor a remote control.

Reasons that set our 16x32 HDMI Matrix Switcher with Video Wall apart from others:

  1. Built-in Video Wall Processor with WEB GUI Control
  2. Instant (100ms) Seamless Switching
  3. Inputs cards have separate 3.5mm embedded audio input
  4. 1080p/60 4:4:4 cards for the best picture
  5. HDCP compliant
  6. 40 - Preset scenes that can be Saved and Recalled
  7. Closed Caption (CC) Pass-through
  8. Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons
  9. No latency
  10. 2-Power Supplys w/automatic switch-over if a problem occurs
  11. 2-Year WolfPackCare™ Advance Replace Warranty
  12. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support

By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair.

WolfPack™ 16x32 HDMI Matrix Switcher with Video Wall Configuration:

  • 1 - 36-card in and 36 card out 1080p card cage chassis
  • 16 - 1-port 1080p HDMI input cards = 16 HDMI inputs
  • 32 - 1-port 1080p HDMI output cards = 32 HDMI outputs
  • 20 additional 1080p input slots for future card expansion to 36-inputs
  • 4 additional 1080p output slots for future card expansion to 36-ouputs

The WolfPack 16x32 HDMI Matrix Switcher with Video Wall manages HDMI input signals for the inputs and female HDMI outputs for HDMI cabling. This WolfPack 16x32 HDMI Matrix Switcher with Video Wall support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our WolfPack 16x32 HDMI Matrix Switcher with Video Wall also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between multiple different modes or copied from the attached displays.

WolfPack 16x32 HDMI Matrix Switcher with Video Wall Features:

  • Chassis size: 36 input and 36 outputs cards
  • Input Cards Supported:
    • 16 - 1080p female HDMI single port cards = 16 - HDMI inputs
  • Output Cards:
    • 32 - 1080p female HDMI single port cards = 32 - HDMI inputs
  • Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
  • Output HDMI cable distance: ~50 feet AWG24 HDMI 2.0 high speed cables
  • 1080p HDMI 1.4 Compliant on all inputs and outputs
  • 1080p HDCP 1.4 Compliant on all inputs and outputs
  • Flexible card type design supporting 36 input cards and 36 output cards
  • Hot Swappable with easy plug n play
  • RS232 serial control port, using serial commands
  • TCP/IP control via Ethernet
  • Global presets to save and recall the function
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel push buttons for local switching
  • IP controlled via built-in web server and LAN
  • RS-232 Serial interface for remote control
  • Supports seamless switching, no black/ blue/ split screen while switching
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Uses a dual control system
  • Control via Web / RS232 and Front Buttons control (no remote control)
  • Rack-mountable

The heart of the WolfPack 16x32 HDMI Matrix Switcher with Video Wall is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.

Free Android and iOS App: The IOS App for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.

For the Android App click the following link and download it. Go to Android App for control of this HDMI matrix switch.

EDID Explained: The WolfPack 16x32 HDMI Matrix Switcher with Video Wall EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.

Why not buy this 16x32 HDMI Matrix Switcher with Video Wall today?



Specs

100ms Seamless HDMI Switching: This WolfPack™ Seamless 16x32 HDMI Matrix Switcher with Video Wall Processor delivers 100ms instantaneous video switching with full 1080p/60 video at each port. This high-performance engine processes HDMI signals by executing EDID hops & HDCP handshakes simultaneously at both the source input, the display outputs & scales the inputs for the best output resolution. It sets the output clock timing & uses a frame buffer to retain the input signal information for the fastest output.

The Seamless 2x2 HDMI Matrix Switcher with Video Wall Processor allows switching between inputs via a clean video cut & frame-to-frame switching without glitches. The WolfPacks HDMI Matrix Switcher advanced processor allows it to process live signals simultaneously which means it can seamlessly & instantly switch (~100ms or 0.1 second) between HDMI inputs & outputs. Most non-seamless HDMI matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.

Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.

Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply will seamlessly take over the matrices power needs.

16x32 HDMI Matrix Switcher with Video Wall Specs:

  • Chassis Input: 16 - HDMI Input Cards
  • Chassis Output: 32 - HDMI Output Cards
  • Input/ output impedance: 75 ohms
  • Gain: 0 dB
  • Maximum delay: 5nS (+/- 1nS)
  • Maximum pixel clock: 165 MHz
  • Control: RS-232, 9-pin female D connector
  • Pin Configurations: 2 = TX, 3 = RX, 5 = GND
  • Modular Configuration: Up to 36 inputs & 36 outputs
  • Supported Input & Outputs Signals:
    • HDMI and Display Port: up to 1080p
    • Optional CATx HDBaseT technology 70/100m Extension (work with extenders)
  • Control: iPad, Android, TCP/IP, RS232 and front buttons
  • Power Consumption: 50W 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: -25℃ to 55℃
  • 36x36 Card Cage Chassis Size: 8U - 482 x 90 x 55mm or 18.97 x 15.35 x 13.98 inches (L/W/H)

    Why not buy this 16x32 HDMI Matrix Switcher with Video Wall today?

  • Compatibility

    HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

    These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

    For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

    • AMX™
    • Control4™
    • Creston™
    • RTI™
    • DTVGameControl™
    • Elan g!™
    • Media Switcher™
    • OnControls™
    • Savant™
    • SimpleControl™
    • SwitchItUp™
    • SAVI Control™
    • URC Control™
    ...and we have created a simple and very easy to use RS232 script to write your own drivers.

    EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and "Failed" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

    How to use the info:

    END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
    1. Call us for a quote
    2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
    CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 User's Manual has and will work to control the matrix directly.

    Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants

    Why not buy this 16x32 HDMI Matrix Switcher with Video Wall today?
