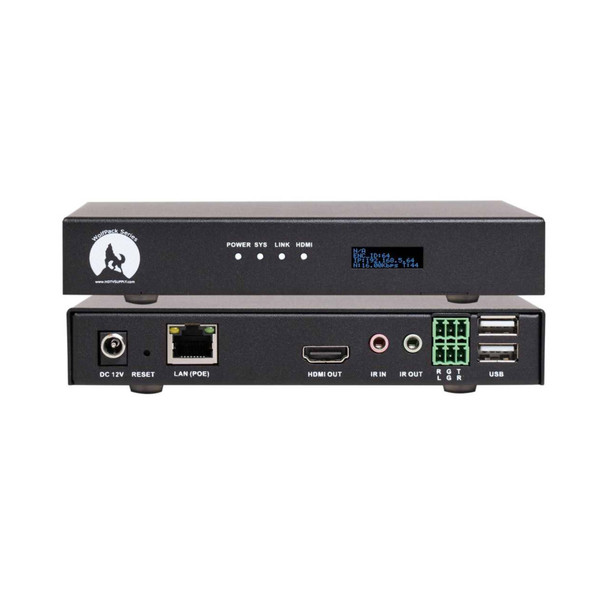

The 1080p AV Over IP Matrix Receiver with PoE is designed to receive and display high-quality HDMI signals over an IP network. It works as part of an AV over IP matrix system, allowing flexible video distribution, extension, and management for commercial and professional AV applications. With PoE support, the receiver can be powered through the network connection, simplifying installation and reducing the need for additional power supplies.
With Power over Ethernet (PoE) capability, the receiver can receive both power and data through a single network cable, making installation cleaner and more efficient. It is ideal for applications that require flexible video distribution, including digital signage, video walls, conference rooms, education facilities, and large-scale commercial AV environments.
Features:
- Supports up to 1080p Full HD HDMI video transmission over IP network
- Receives HDMI signals through RJ45 network connection and outputs HDMI to displays
- Power over Ethernet (PoE) support for simplified installation
- Extends HDMI signals up to approximately 330 feet (100 meters) over CAT6/CAT7 cable
- Supports point-to-point and multi-point AV distribution setups
- Compatible with managed network switches supporting IGMP for larger AV over IP systems
- Supports web-based GUI management and system control
- Designed for scalable multi-display and matrix switching applications
Specifications:
- Product Type: AV Over IP HDMI Receiver
- Video Resolution: Up to 1920 x 1080 (1080p)
- Input: RJ45 Ethernet (IP Network)
- Output: HDMI
- Transmission Distance: Up to 330 ft / 100 m over CAT6/CAT7 cable
- Audio Support: HDMI embedded audio including 5.1 audio support
- Compression Format: H.264-based video transmission
- Control: Web GUI management, switching, and configuration
- Network Compatibility: Ethernet, LAN, and managed network environments
- Power: PoE or optional external power supply
- HDCP Compliance: Supports HDCP-compliant HDMI distribution
