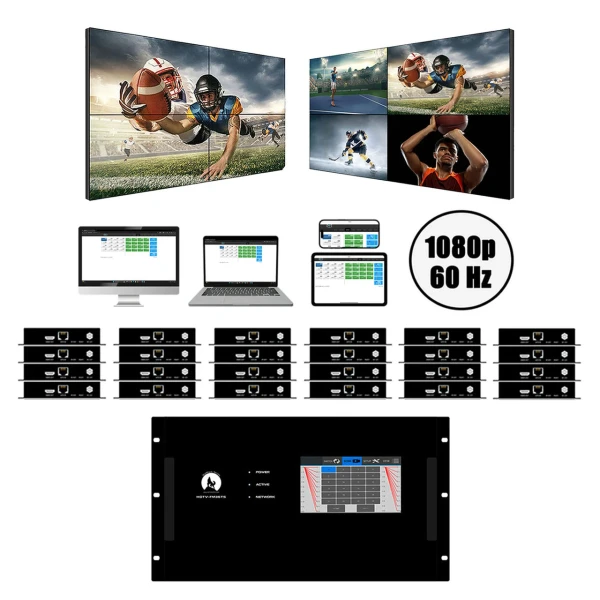

The WolfPad 1080p 28x32 HDMI Matrix Switcher routes any input to any output over CAT6 up to 450 ft, with a modular design and no need for external converters.
HDMI EXTENSION (POE): HDTV Supply’s LHDT extends HDMI over CAT5e/6/7 up to 450 ft with near–3 ft cable quality and uses PoE to power receivers, eliminating AC adapters.
These systems support HDMI 2.0 and HDCP 2.3 devices, including DirecTV receivers, cable boxes, Firesticks, Roku, and Apple TV.
IN & OUT CONTROL (ALL FREE): This HDMI Matrix Switch can control the Ins and Outs the following ways:
- Front Panel Control
- iPad or iPhone apps
- Android phone or Android tablet apps
- Samsung Galaxy phone or Galaxy tablet apps
- WEB GUI
- IR Remote Control aimed at the front panel
- Windows Software
- Dual RS-232 and
- Dual TCP/IP control
NOTE: The above control sends any input, to any output, in any combination on a tablet. If you want to, say, change the channels on a cable box or DirecTV receiver, see our WolfPad TV Control Systems.
Reasons that sets this 1080p 28x32 Modular HDMI Matrix Switcher supporting CAT6 up to 450 feet apart from others:
- 32x32 Chassis Size
- Sends 1080p video over a CAT5e/6/7 cable to 450 feet.
- Built-in Video Wall Processor
- Fast 80ms Switching & 80ms Latency
- All TVs in synch with each other
- Resolution Scaling on all Out Cards
- Separate Audio on all Cards
- Optional HDMI Quad-View Card (4-Pics on 1-Display)
- Uses 4-port IN & OUT Cards
- Uses 4-Port LHDT HDMI to CATx w/POE to 450 feet
- 40-Preset Scenes that can be Saved and Recalled
- Optional cards available like SDI, Fiber, and more
- Rack-mountable
- Optional Crestron, RTI, Elan & 2-Way Control4 Drivers
Internal Video Wall Processing: Not only is this product an HDMI matrix switch, but it is also designed to support multiple video wall configurations. Your tablet is used to create video walls and the number of video walls is only limited by the number of outputs that you have. It supports Drag-N-Drop Video Wall Processing & setups and any TV can be rotated. To set up video walls all you need to use is a PC so you can then change the sources using a tablet. See the examples below:
Example 1: Create a 2x2 Video Wall using 4-TVs with either one large picture or 4-individual pictures at one, or multiple locations.
Example 2: Create a 3x3 Video Wall using 9-TVs with either one large picture or 9-individual pictures at one, or multiple places.
Separate Embedded Audio In and De-embedded Audio Out: The matrix allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the input cards 3.5mm audio connector and then de-embedding the audio on the output cards 3.5mm audio.
Seamless Switching: Our WolfPackGold Modular HDMI Matrix Switcher can be configured with instantaneous video switching which delivers full 1080p video powered by our WolfPack engine implemented at each output port. It switches instantly taking only 80ms or 0.08 seconds.
Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the up/down manual scaling of resolutions. Each HDMI card has an 8-pin DIP switch to select multiple resolution settings to conform to your HDMI source devices and the HDMI destination devices.
1080p 28x32 Modular HDMI Matrix Switcher supporting CAT6 up to 450 feet Configuration Example:
- 1 - 32-card in and 32-out chassis
- 6 - 4-port 1080p HDMI input cards = 28-1080p HDMI inputs
- 9 - 4-port RJ45 Ethernet output cards = 32-1080p CAT6 outputs to 450'
- 32 - 1080p CAT6 to HDMI Receivers to 450'
By having 4-port slide in cards the matrix is exceptionally reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent in for repair.
The heart of this 1080p 28x32 Modular HDMI Matrix Switcher supports HDMI over CAT6 up to 450 feet is the WolfPad chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix supports hot plugs, and you can change the cards while the equipment is still working.
Why not buy this 1080p 28x32 Modular HDMI Matrix Switcher supports HDMI over CAT6 up to 450 feet today?
These WolfPad HDMI Matrix Switcher Chassis Specifications:
- Product Type: Modular HDMI Matrix Switcher
- Model: 28x32-MATRIX-CAT6
- Video Resolution: Up to 1080p
- Inputs: 28 HDMI inputs
- Outputs: 32 CAT6 outputs
- Transmission Distance: Up to 450 feet over CAT5e/CAT6/CAT7
- HDMI Version: HDMI 2.0
- HDCP Support: HDCP 2.3
- Video Wall Processing: Built-in video wall processor
- Switching Speed: Approximately 80ms
- Latency: Approximately 80ms
- Video Wall Configurations: Supports configurations such as 2x2 and 3x3 video walls
- Audio: Separate audio embedding and de-embedding through 3.5mm connections
- Resolution Scaling: Hardware resolution scaling through DIP switches
- Control Methods: Front panel, iOS/iPad, Android, Web GUI, IR remote, Windows software, RS-232, and TCP/IP
- Chassis: 32-card modular chassis
- Input/Output Cards: 4-port modular cards
- PoE: Powers compatible CAT6 receivers without separate AC adapters
- Preset Scenes: Up to 40 scenes can be saved and recalled
- Mounting: Rack-mountable
- Optional Expansion: SDI, fiber, and other cards available
- Control System Compatibility: Optional Crestron, RTI, Elan, and two-way Control4 drivers
- Hot-Swappable Design: Cards can be replaced or changed while the system is operating
