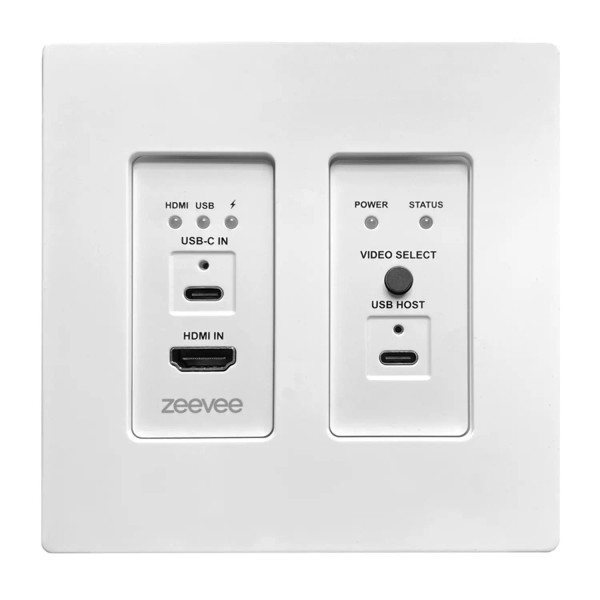

This ZeeVee ZUHD60-1WE 2x1 Switching Wall Plate Encoder is an HDMI 2.0a, Switching, dual−input wallplate Encoder (HDMI and USB−C) that is part of the ZUHD60 product line.
It supports IP streaming up to 4KP60 4:4:4 resolution with embedded and AES67 audio support; HDCP 2.3 and AES−256 encryption.
Other features include USB and RS−232 (via 3−pin Phoenix/Euroblock). The ZUHD60−1WE requires a ZUHD60 Decoder for operation.
Ethernet, HDMI, USB, and audio/serial cables are not included. Power supply sold separately. (Only needed for charging over USB−C port)
ZeeVee ZUHD60-1WE 2x1 Switching Wall Plate Encoder Features:
- Compressed 4K
- HDMI 2.0
- Video Wall
- AES Encryption
- HDCP 2.3
- AES67
- USB 2.0, 802.1x compatible
Why not buy this ZeeVee ZUHD60-1WE 2x1 Switching Wall Plate Encoder from HDTV Supply today?
ZeeVee ZUHD60-1WE 2x1 Switching Wall Plate Encoder Specifications:
- Video: HDMI 2.0a and USB-C: HDMI type A and USB–C
- Serial: Full Duplex up to 115.2 kbps: 3–pin Phoenix
- USB: USB 2.0: 2x USB Type C
- Ethernet (PoE): 1 Gb for Video/Audio/Control: 1Gb RJ45 port
- Formats:
- Supports all major VESA resolutions and variations including:
- VGA: 640x480 (4:3)
- SXGA: 1280x1024 (5:4)
- 1080p/i: 1920x1080 (16:9)
- SVGA: 800x600 (4:3)
- WXGA: 1366x768 (16:9)
- QXGA: 2048x1536 (4:3)
- XGA: 1024x768 (4:3)
- SXGA+: 1440x1080 (4:3)
- Ultra HD: 3840x2160 (16:9)
- HDTV: 1280x720 (16:9)
- UXGA: 1600x1200 (4:3)
- 4K: 4096x2160 (16:10)
- Video Other: Color Depth: 24 bit, 30 bit
- Maximum Distance: Cat6a: 328 ft (100 m)
- Copy Protection/Security:
- HDCP 2.3
- 802.1X compatible
- Power Consumption: Approximately 7W
- Temperature:
- Operating Temperature: +32°F ~ +113°F (0°C ~ +45°C)
- Storage Temperature: –4°F ~ +158°F (–20°C ~ +70°C)
- Humidity: 10% ~ 90%, non–condensing
- Accessories:
- ZUHD60RACK: 6RU Rack mount chassis. Holds up to 10 ZyPerUHD60 encoders/decoders. Includes 4 blank panels
- ZUHD60BP: Spare blank panel for ZUHD60RACK
- 12V2APS: 12 Volt, 2A Power Supply for UHD60 units. (Not compatible with 2E, 2EA, 2EMP and 1WE encoders) Not required if using PoE for power
- 20V6APS: 20 Volt, 6A Power Supply for UHD60 Encoder units. (Only compatible with 2E, 2EA and 2EMP units)
- U60WPPS: ZUHD60 20V 6A power supply with 2–pin phoenix connector for UHD60 Wallplate, with US power cable. (Only compatible with Wallplate Encoder)
- Product Dimension: Standard 2–Gang box (90mm Wide x 105.6mm High x 47mm Deep)
