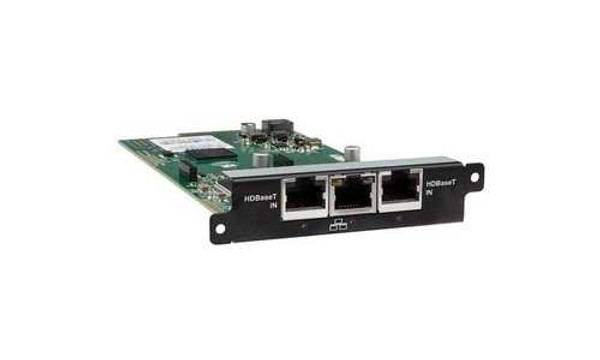

This tvONE CM-HDBT-X-2IN-1ETH 2x HDBaseT Input Module for CORIOmatrix Systems is a 2-receiver HDBaseT twisted-pair input module for installation in the tvONE CORIO matrix system matrix switcher chassis.
Equipped with two HDBaseT twisted-pair inputs and an Ethernet port on RJ45 connectors.
Uses HDBaseT 5Play technology for HDMI / DVI twisted-pair transmission, HDCP compliant.
Reception distance - up to 100 m.
tvONE CM-HDBT-X-2IN-1ETH 2x HDBaseT Input Module for CORIOmatrix Systems Features:
- Reception distance - up to 100 m
- 2-Receiver HDBaseT Twisted-Pair Input Module
- The module is designed to work with transmitters that support HDBaseT, HDBaseT-Lite and HDBaseT-Extended
- Maximum HDBaseT cable length 100m
- Compatible Models: tvONE 1T-CT-651, 1T-CT-653 (-USWP); Magenta HD-One DX, DX500, LX and LX500)
Why not buy this tvONE CM-HDBT-X-2IN-1ETH 2x HDBaseT Input Module for CORIOmatrix Systems today?
tvONE CM-HDBT-X-2IN-1ETH 2x HDBaseT Input Module for CORIOmatrix Systems Specifications:
- Inputs: 2 – HDBaseT twisted pair, RJ45 connector (female)
- Ports: 1 - Ethernet, RJ45 connector (socket)
- Maximum Resolution: 1080p
- Maximum Resolution: 1920x1200 (WUXGA)
- Twisted pair extension: up to 100 m
- HDBaseT Convergence: 5Play: HD video and audio, 100Mbps Ethernet, control signals (IR/RS-232) and power
- Dimensions (WxDxH): 96 x 170 x 21mm
- Weight: 0.16 kg
Why not buy this tvONE CM-HDBT-X-2IN-1ETH 2x HDBaseT Input Module for CORIOmatrix Systems today?
tvONE CM-HDBT-X-2IN-1ETH Specifications
Why not buy this tvONE CM-HDBT-X-2IN-1ETH 2x HDBaseT Input Module for CORIOmatrix Systems today?
How many HDBaseT inputs and what connector does it use?
A: It provides two HDBaseT twisted-pair inputs using RJ45 connectors.
Does the module include an Ethernet port and does HDBaseT carry network?
A: Yes; the module includes one Ethernet RJ45 port, and the HDBaseT convergence lists 100Mbps Ethernet as part of 5Play.
What maximum video resolutions does this module support?
A: The product lists maximum resolution support up to 1080p and also lists 1920x1200 (WUXGA).
What distance can HDBaseT signals reach to this module?
A: Reception distance is specified up to 100 m.
Will this accept signals from HDBaseT, HDBaseT-Lite, or HDBaseT-Extended transmitters?
A: Yes; the module is designed to work with transmitters that support HDBaseT, HDBaseT-Lite and HDBaseT-Extended.
Can I get Ethernet over the HDBaseT link with this module?
A: Yes; the HDBaseT convergence lists 100Mbps Ethernet as part of 5Play and the module also provides an Ethernet RJ45 port.
Can this module receive 4K signals?
A: No; this HDBaseT input module lists maximum resolutions up to 1080p (and 1920x1200 WUXGA) rather than 4K.
How do I physically connect an HDBaseT transmitter to this module?
A: Connect the transmitter's HDBaseT twisted-pair output to one of the module's RJ45 HDBaseT inputs; the module provides two RJ45 HDBaseT input ports and supports twisted-pair extension up to 100 m.
