This Turtle AV TAV-USBEXTKIT1-PROMO USB 3.2 Gen 1 Extender Kit (328 Feet, 6-Pack) delivers high-speed performance across distances of up to 328' over a single Cat 6/6a/7 cable.

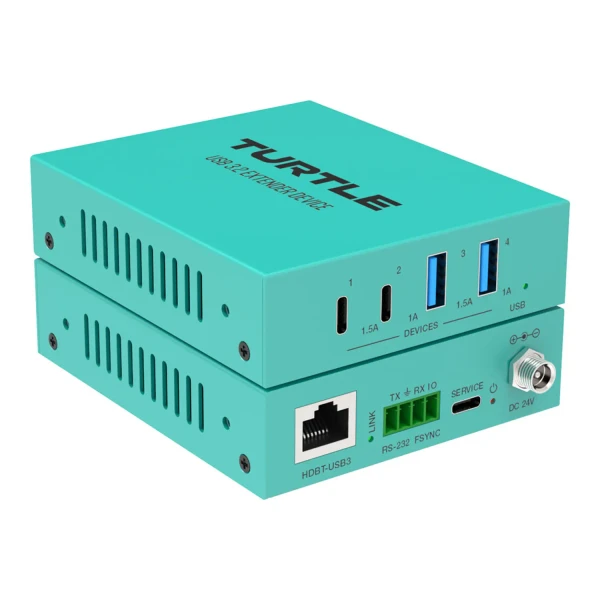

The USB Extender Kit comes with host and device extenders housed in compact, all-metal chassis, making them resilient and easy to install.
Each extender incorporates an HDBaseT-USB3 connection through a standard RJ45 port.
The HDBaseT connection supports USB 3.2 Gen 1 data transfer speeds of up to 5 Gb/s and the transfer of power, which means you only need to hook up the included power supply to one of the extenders.
Connect to a host device through a single USB-C 3.2 Gen 1 port, then connect up to seven peripheral devices through the remaining three USB-C and four USB-A 3.2 Gen 1 ports.
The remaining USB-C connector port on each extender is a service port dedicated to firmware updates.
Both extenders are equipped with RS-232 3-pin and FSYNC 1-pin options on a 3.5mm phoenix connector to reliably control AV, network, healthcare, or other peripheral equipment.
This kit is TAA compliant, ensuring it can confidently be used in confidential or high-profile situations, such as federal contracts.
The plug-and-play design means there is no need to install any drivers or software.
TAA Compliant: Turtle AV products, sold by HDTV Supply, and sold in the USA are TAA compliant, meeting U.S. government standards for procurement.
This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
Turtle AV TAV-USBEXTKIT1-PROMO USB 3.2 Gen 1 Extender Kit (328 Feet, 6-Pack) Features:
- Includes Host and Device Extenders
- Supports up to Cat 6/6a/7
- HDBaseT-USB3 RJ45 Ethernet Ports
- USB-C and USB-A 3.2 Gen 1 Ports
- RS-232 and FSYNC Support
- 5 Gb/s Data Transfer Speed
- Plug-and-Play Design
- TAA Compliant
Why not buy this Turtle AV TAV-USBEXTKIT1-PROMO USB 3.2 Gen 1 Extender Kit (328 Feet, 6-Pack) from HDTV Supply today?
Turtle AV TAV-USBEXTKIT1-PROMO USB 3.2 Gen 1 Extender Kit (328 Feet, 6-Pack) Specifications:
- Technical
- USB Protocol: USB 3.2 Gen 1
- Transmission Rate: Up to 5Gbps
- Transmission Distance: 100m/328ft via CAT6a (F/FTP) cable
1.5m/4.9ft via USB cable - ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
- Connections
- Transmitter
- Input: 1 × HOST [USB Type C, 24-pin female]
- Output:
- 1× USB-C DEVICE [USB Type C, 24-pin female]
- 2 × USB-A DEVICE [USB Type A, 9-pin female]
- 1 × HDBT-USB3 [RJ45 connector, 24V PoC]
- Control:
- 1× RS-232 [3pin-3.5mm phoenix connector]
- 1 × FSYNC [1pin-3.5mm phoenix connector]
- 1× SERVICE [USB Type C, firmware update port]
- Receiver
- Input: 1× HDBT-USB3 [RJ45 connector, 24V PoC]
- Output:
- 2× USB-A DEVICE [USB Type A, 9-pin female]
- 2 × USB-C DEVICE [USB Type C, 24-pin female]
- Control:
- 1× RS-232 [3pin-3.5mm phoenix connector]
- 1× FSYNC [1pin-3.5mm phoenix connector]
- 1× SERVICE [USB Type C, firmware update port]
- Transmitter
- Mechanical
- Housing: Metal Enclosure
- Color: Turtle Aqua
- Dimensions: TX / RX: 100mm [W] × 85mm [D] × 25.5mm [H]
- Weight: TX: 265g; RX: 275g
- Power Supply
- Input: AC 100~240V 50/60Hz
- Output: DC 24V/3.75A
- Power Consumption:
- TX: 23W (Max)
- RX: 35W (Max)
- TX+RX: 68W (Max, including line loss)
- Environmental
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing
Why not buy this Turtle AV TAV-USBEXTKIT1-PROMO USB 3.2 Gen 1 Extender Kit (328 Feet, 6-Pack) from HDTV Supply today?
Turtle AV TAV-USBEXTKIT1-PROMO User Manual
Why not buy this Turtle AV TAV-USBEXTKIT1-PROMO USB 3.2 Gen 1 Extender Kit (328 Feet, 6-Pack) from HDTV Supply today?
What is the TAV-USBEXTKIT1-PROMO?
A: The TAV-USBEXTKIT1-PROMO is a long-distance USB extension solution designed to transport USB 3.2 Gen 1 connectivity between a host computer and remote USB devices.
It is intended for professional AV, conferencing, control, and peripheral-extension installations where the USB source and connected devices need to be separated by a substantial cable distance.
What USB standard does it support?
A: The extender supports USB 3.2 Gen 1, providing higher-bandwidth USB connectivity than USB 2.0 extenders.
This makes it suitable for compatible USB peripherals that require faster data transfer, subject to the capabilities of the connected host, devices, and installation.
What is the maximum extension distance?
A: The promotional kit is specified for USB extension up to 328 feet, allowing USB devices to be located far from the host computer.
The achievable distance depends on the complete cable path and installation conditions. Use the recommended cabling and follow the manufacturer's distance limits for reliable operation.
What type of applications is this USB extender designed for?
A: It is designed for professional AV environments, including conference rooms, classrooms, control rooms, digital signage, and other installations requiring remote USB connectivity.
The long-distance architecture allows USB peripherals to be positioned near the user or equipment while the host computer remains in a separate equipment location.
Can it be used with USB peripherals at the remote end?
A: Yes, the extender is designed to provide USB connectivity at a remote location so compatible peripherals can communicate with the host computer.
Typical uses include keyboards, mice, touch interfaces, cameras, storage devices, and other USB equipment supported by the host operating system and available USB bandwidth.
Does the extender require a direct host-to-device connection?
A: The extender uses transmitter and receiver endpoints to create the extended USB link rather than relying on a standard short USB cable.
This architecture is intended for longer installations and helps separate the computer from the remote USB equipment while maintaining a logical USB connection.
Is USB 3.2 Gen 1 backward compatible with USB 2.0 devices?
A: USB 3.2 Gen 1 is designed within the USB ecosystem and can operate with compatible lower-speed USB devices.
When a USB 2.0 peripheral is connected, its performance remains limited by the USB device and host capabilities rather than the maximum rate of the extender.
What cabling should be used for long-distance operation?
A: The extender should be installed using the cable type and termination method specified for the system and its rated distance.
Cable quality, connector termination, routing, and electromagnetic conditions can affect USB performance, so structured-cabling best practices should be followed for professional installations.
Is this extender suitable for centralized equipment rooms?
A: Yes, its long-distance USB capability is useful when computers or other USB hosts are located in a centralized equipment area.
Remote peripherals can then be placed at desks, operator stations, conference tables, or other user locations without moving the host computer to the endpoint.
Why use the TAV-USBEXTKIT1-PROMO for a multi-room AV project?
A: The 6-pack configuration provides multiple extender kits for projects requiring several independent USB extension links.
It can simplify deployment across multiple rooms or endpoints where long-distance USB 3.2 Gen 1 connectivity is required from centralized or distributed host systems.
