This Thor Broadcast Maximus4kFly-B 4 Channel Bidirectional SD/HD 3G-SDI Over Single Fiber CWDM Uncompressed Rack-Mountable is a 4K ePTZ camera that has a built-in microphone making it ready to operate out of the box.
This minimal design and compact structure has Sony's new generation of 1/2.5-inch 4K Exmor image sensor with a built-in ultra-wide-angle 130-degree autofocus lens. Easy to operate and includes USB3.0 and HDMI dual interface simultaneous video output, the maximum resolution is 4K@30FPS, and 1080P video that has 4X Digital zoom. The built-in high-fidelity microphone has a maximum pickup distance up to 25 feet. Built in features like low illumination, low latency, clear picture quality, and delicate video quality means you can be set up and running in no time without fussy software and difficult attachments.
Comes equipped with an adjustable bracket to put on a desktop PC, laptop/notebook, large screen, monitor, and other video capture and application. Ideally used in, but not limited to, teleconferencing, telemedicine, education, remote meetings, remote classrooms, live event streaming, church streaming, house of worship, court systems & virtually any live streaming application.
Thor Broadcast Maximus4kFly-B 4 Channel Bidirectional SD/HD 3G-SDI Over Single Fiber CWDM Uncompressed Rack-Mountable Features:
- Sony 1/2.5 Exmor 4K CMOS sensor
- Video Output support Max 4K@ 30fps; 1080p, 720p, 960×540, 848×480, 800×448 640×480, 640×360, 424×240, 320×240, 320×180 at 60, 30, 15 fps
- 4K with 130° Horizontal of View, 1080P with 68°HOV
- USB3.0, HDMI Simultaneous Video Output, USB3.0 Support( Voice+Video+Communication function+Power Supply)
- Built in microphone array, with omnidirectional pickup, pickup distance up to 25 feet
- H265/H264/MJPEG Support and 4x digital zoom at 1080P60fps
- 2D/3D digital noise reduction
- Compatible with virtually any video of conferencing systems and software
- USB suppport for Windows 7 / 8 / 8.1 / 10 & MAC OSX 10.7 or newer
- Remote Control Included; Tripod is not included with purchase(shown for accessibility)
Why not buy this Thor Broadcast Maximus4kFly-B 4 Channel Bidirectional SD/HD 3G-SDI Over Single Fiber CWDM Uncompressed Rack-Mountable today?
Thor Broadcast Maximus4kFly-B 4 Channel Bidirectional SD/HD 3G-SDI Over Single Fiber CWDM Uncompressed Rack-Mountable Specifications:
- Camera
- Video System: Sony 1/2.5" CMOS, Effective Pixel 4k@3820*2160
- Video Output Format: 4k@30fps; 1920*1080P@60fps/50/30/25fps;1080I@60fps/50fps; 720p@60fps/50fps: 320*480
- Lens 1: F=3,5mm FOV 110°
- Lens 2 (Default): F=2,8mm FOV 130°
- Auto Focus: Support
- Min Illumination: 0,02Lux@F1,8, AGC ON
- Shutter: 1/30s ~ 1/10000s
- White Balance: Auto / Indoor / Outdoor / ONE PUSH, Manual
- Camera Brackets: Brackets with Damper Support ± 30° adjustment
- Digital Noise Reduce: 2D, 3D
- BLC: Support
- WDR ON/OFF: Support
- USB Function
- Video Output: 4K@30fps; 1920*1080p@60fps/50/30/25fps; 1080i@60fps/50fps; 720p
- Encoding: H.265 / H.264 / MJPEG
- UVC Protocol: Support
- Video Communication: UVC1.0-UVC1.5
- Audio Function
- Built-in Microphone: Yes
- Audio Transmission: USB 3.0
- Voice Pickup Range: 8 Meters
- HDMI Interface
- Video Output: 4k@30fps / 1920x1080@60fps/50/30/25 ; 108i@60fps/50/ ; 720p@60fps/50fps ; 320x480
- Encoding: H.265 / H.264 / MJPEG
- Audio Output: N/A
- ePTZ: Support, 4x Digital Zoom @ 1080P
- Interface:
- USB3.0 Type B Female (Compatible with all interfaces below USB 3.0 support video, control, power, supply, audio input, and output)
- HDMI 2.0 (Compatible with HDMI 2.0, 1.4, 1.3A, 1.3 and other interfaces, only supports video transmission)
- Generic
- Input Voltage: 5V(USB 3.0)
- Operation Temperature: -10°C -+ 50c°C (14)
- Storage Temperature: -40°C ~ 60°
- Power Consumption: TBD
- MTBF: 50000 hours
Why not buy this Thor Broadcast Maximus4kFly-B 4 Channel Bidirectional SD/HD 3G-SDI Over Single Fiber CWDM Uncompressed Rack-Mountable today?

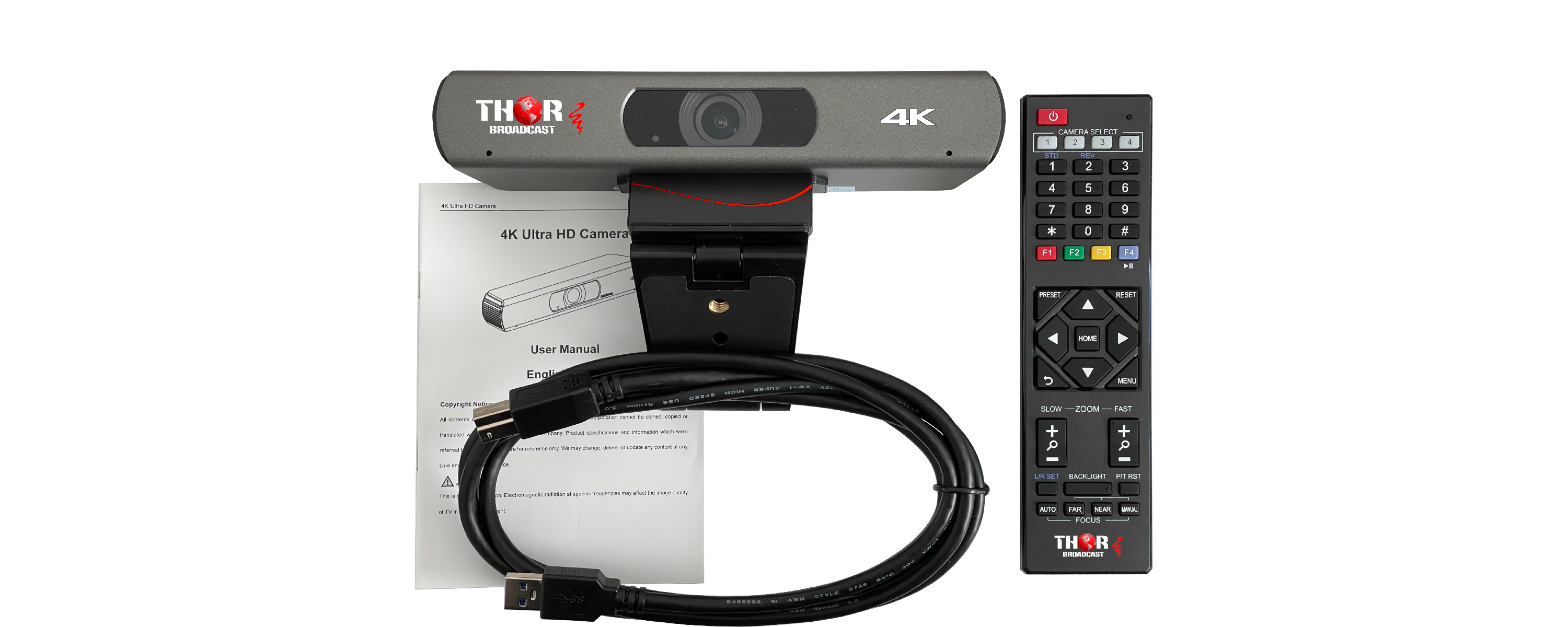

Thor Broadcast Maximus4kFly-B 4K HDMI and USB E PTZ Compact Camera Manual
Why not buy this Thor Broadcast Maximus4kFly-B 4 Channel Bidirectional SD/HD 3G-SDI Over Single Fiber CWDM Uncompressed Rack-Mountable today?
What video resolutions and frame rates does the Maximus4kFly-B support?
A: The maximum output is 4K at 30 fps. Documented HD formats include 1920 × 1080 progressive at 60, 50, 30, or 25 fps, plus HDMI output at 720p at 60 or 50 fps.
Can the camera send video over USB and HDMI at the same time?
A: Yes. USB 3.0 and HDMI support simultaneous video output, allowing connections to a USB computer and an HDMI video destination at the same time.
Does HDMI carry audio from the built-in microphone?
A: No. The HDMI connection is documented as video-only; audio from the built-in microphone is transmitted over USB 3.0. Plan to use USB when your application needs the camera's microphone audio.
What USB connection and power source does the camera use?
A: The camera has a USB 3.0 Type-B female connector and uses 5V power through USB 3.0. That USB connection also supports video, audio, and control.
At what resolution is 4× digital zoom supported?
A: The documented 4× digital zoom operates at 1080p, including 1080p at 60 fps. It is an ePTZ digital zoom feature; the supplied specifications do not establish 4× zoom operation at 4K.
Which USB video standards and operating systems are documented?
A: The camera supports UVC 1.0 through UVC 1.5. Listed USB operating systems are Windows 7, 8, 8.1, and 10, plus Mac OS X 10.7 or newer; compatibility with a particular conferencing application should be checked against that application's requirements.
How can the camera be positioned on a computer or display?
A: The adjustable bracket supports placement on a desktop PC, laptop, monitor, or large screen. Its damped bracket provides ±30° adjustment to help aim the camera.
Is the Maximus4kFly-B a good option for fitting a group into a meeting-room shot?
A: Its default lens provides a documented 130° horizontal field of view at 4K, making it a useful option when a wide group shot is the priority. The listed horizontal field of view at 1080p is narrower at 68°, so resolution choice affects how much of the room is captured.
Can I use this camera for remote classes or worship livestreams?
A: Yes. Remote classrooms, education, church streaming, and other live-streaming applications are documented uses. USB provides camera video and microphone audio to a computer, while HDMI offers a simultaneous video feed for an HDMI destination.
Is this camera suitable for a room with limited or uneven lighting?
A: The camera has documented low-light capability, with a minimum illumination specification of 0.02 lux at F1.8 with AGC on. It also supports 2D/3D noise reduction, backlight compensation, and switchable wide dynamic range, providing image controls relevant to dim or unevenly lit rooms.
