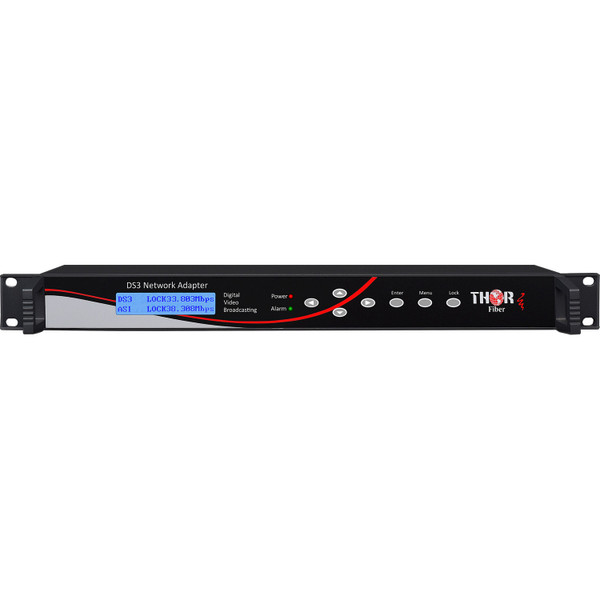

Thor Broadcast H-ASI-DS3-B ASI MPEG Transport Stream over DS3 / T3

Thor Broadcast

Was: $3,180.00
Now: $2,650.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
Thor-H-ASI-DS3-B
UPC:
793132855432
Condition:
New
Availability:
In Stock
1:
ASI over DS3 Gateway
2:
Transport over TDM Connections
3:
Highest Reliability Video Link Over TDM Connections
4:
Full Duplex Link In Both Directions Up To 44 Mbps
5:
Free USA Insured Shipping
6:
Ships with the latest firmware
7:
2-Year Warranty
ADD OPTIONS:

This Thor Broadcast H-ASI-DS3-B ASI over DS3 Gateway for Transport over TDM connections is highly reliable contribution feed links. Allows a full rate duplex TDM carrier signal with dedicated bandwidth at synchronous clock speeds, for ultra reliable contribution feed transport of encoded DVB-ASI programs in full duplex mode. The Thor Gateway system transmits up to 44 Mbps of ASI content in both directions over a Third Layer T-Carrier type TDM coaxial connection. High speed Layer 3 TDM connections have guaranteed bandwidth through a synchronous full duplex link and are therefore much more reliable than Internet based cloud solutions. At least two Thor Gateway units are needed to make a connection. For most installations, no configuration is needed.

System can be configured to either strip or insert null packets to provide either VBR or CBR MPEG-TS over DVB-ASI Output. Provides direct optical fiber type reliability when optical fiber access is not available. When configured properly at the encoders, this system can reliably transport 4 HD or 10 SD programs over MPTS ASI bi-directionally via BNC terminals. Each Gateway has a Tx and Rx BNC terminal for outgoing and incoming DVB-ASI programs.

Thor Broadcast H-ASI-DS3-B ASI over DS3 Gateway for Transport over TDM connections Features:

  • Transport up to 44 Mbps MPTS ASI Over DS3 or T3
  • Network managed for remote monitoring and alarm
  • Highest reliability video link over TDM connections
  • Full duplex link in both directions up to 44 Mbps
  • Intelligent CPU removes null packets for transport

Why not buy this Thor Broadcast H-ASI-DS3-B ASI over DS3 Gateway for Transport over TDM connections today?

Thor Broadcast H-ASI-DS3-B ASI over DS3 Gateway for Transport over TDM connections Specifications:

  • DS3 Input: G.703 Standard
  • Connector: BNC
  • Impedance: 75 Ohm
  • TS Packet Format: 188/204 bytes
  • Input Bit Rate: 44.736Mbps(DS3)
  • Encoding: B3ZS(DS3)
  • ASI: DVB Standard
  • Connector: BNC
  • Impedance: 75 Ohm
  • TS Standard: ISO13818-1
  • Input Valid Bit Rate: 40 Mbps max
  • TS Packet Format: 188/204 bytes (automatic identification)
  • TS Input Formats: equality / packet burst / inequality
  • DS3 Output: G.703 Standard
  • Connector: BNC
  • Impedance: 75 Ohm
  • TS Packet Format: 188/204 bytes
  • Output Bit Rate: 44.736Mbps(DS3)
  • Encoding: B3ZS (DS3)
  • Transit Distance: >50m(75-3 coaxial line)
  • ASI: DVB Standard
  • Connector: BNC
  • Impedance: 75 Ohm
  • TS Standard: ISO13818-1
  • TS Packet Format: 188/204 bytes (RS encoding 204bytes)
  • TS Input Format: equality

Why not buy this Thor Broadcast H-ASI-DS3-B ASI over DS3 Gateway for Transport over TDM connections today?

Thor Broadcast H-ASI-DS3-B User Manual

Why not buy this Thor Broadcast H-ASI-DS3-B ASI over DS3 Gateway for Transport over TDM connections today?

Can this unit carry ASI MPEG transport streams in both directions?

A: Yes — the Thor Broadcast H-ASI-DS3-B supports full duplex ASI transport up to 44 Mbps in both directions.

What physical interfaces does the H-ASI-DS3-B provide for ASI and DS3?

A: The unit uses BNC connectors with 75 Ohm impedance for both its ASI and DS3 interfaces.

What DS3 bit rate and encoding does the gateway use?

A: The DS3 input and output operate at 44.736 Mbps and use B3ZS encoding under G.703.

What ASI transport stream packet formats are supported?

A: The gateway supports 188- and 204-byte TS packet formats and can automatically identify packet size.

How much ASI throughput can I expect per direction?

A: You can transmit up to 44 Mbps of ASI content per direction.

Does the device provide any packet handling for variable or constant bitrate streams?

A: Yes — the system can be configured to strip or insert null packets so you can transport either VBR or CBR MPEG-TS over DVB-ASI.

What MPEG-TS and DVB standards does this gateway support?

A: The gateway supports ISO13818-1 TS standard and DVB ASI signalling.

What cable type and minimum transit distance is specified for DS3/TDM connections?

A: A 75-3 coaxial line is referenced with a transit distance specified as greater than 50 m.

Do I need more than one Thor unit to make a DS3/T3 connection?

A: Yes — at least two Thor Gateway units are required to form a connection.

Will this gateway carry 4 HD or 10 SD programs as a guideline?

A: Yes — when configured properly at the encoders, the system can transport up to 4 HD or 10 SD programs bi‑directionally over MPTS ASI.

Is remote monitoring available for the H-ASI-DS3-B?

A: Yes — the device is network managed for remote monitoring and alarm.

Can this gateway be used where fiber access is not available?

A: Yes — it provides fiber‑type reliability over TDM coaxial links when optical fiber access is not available.

Will I usually need to do configuration after installing the Thor unit?

A: For most installations no configuration is needed, though the system can be configured where required.
