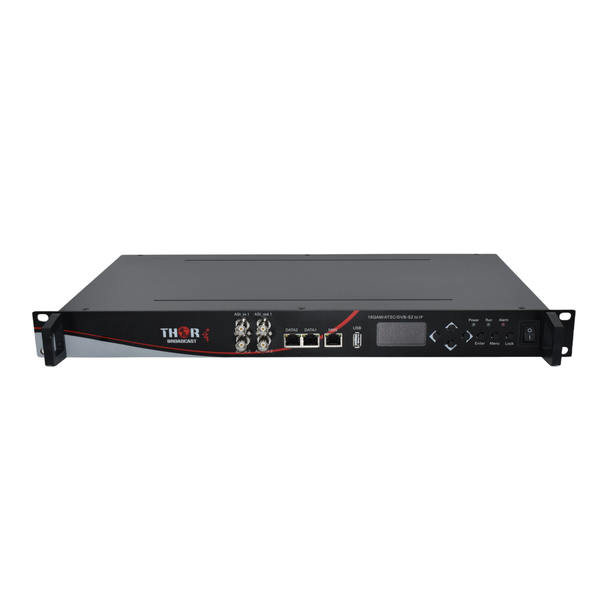

Thor Broadcast H-16ATSC-IP RF to IP Modulator

Thor Broadcast

Was: $5,394.00
Now: $4,495.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
Thor-H-16ATSC-IP
UPC:
00793132855364
Condition:
New
Availability:
In Stock
1:
512 IP SMPTS' Output Over UDP or RTP
2:
Accurate PCR Adjusting
3:
PSI/SI Editing & Inserting
4:
Web Management, Updates via Web
5:
Free USA Insured Shipping
6:
Ships with the latest firmware
7:
2-Year Warranty

This Thor Broadcast H-16ATSC-IP 16 x Off Air ATSC Inputs Tuners to IP Modulator. 16 Independent Off Air ATSC tuners input to IP TS SPTS multicast or unicast outputs. PN H-16ATSC-IP Each TS program - "subchannel" from any ATSC Channel can be converted to IP stream - UDP/RTP/RTSP , it could be used as an ATSC cherrypicker to IP gateway used to be the ATSC Lighthouse Station used during the ATSC3 Transformation The unit has also 2 ASI inputs for external TS's sources , also other models are available: H-16ATSC-IP-16ATSC 16 ATSC to 16 ATSC trans modulator with VCT edit, H-16ATSC-IP-16QAM : 16 ATSC to 16 DVB-C QAM- trans modulator with VCT.

This gateway and transmodulator is a unique device that can easily convert existing RF streams, up to 8 frequencies and convert to IP and RF channels. This will allow you to add any RF to existing RF channel bank as well as create IP streams for easy access via LAN. For consideration you can convert DVB-T to IP and QAM, or you can convert ATSC to IP and QAM, or also use it as a translator so you can take 8 QAM frequencies and convert to IP and 8 QAM (different frequencies, if you like to rearrange your channel lineup). The vast array of options make this an ideal headend piece to quickly and efficiently become more dynamic, add free OTA channels to a QAM headend, or simply create a RF to IP gateway with existing RF programs. This is the exact same unit that is mentioned above with the added benefit of transmodulation, we can essentially mix and match any RF to any RF with a couple exceptions. Please contact your local dealer or Thor directly for more information.

Thor Broadcast H-16ATSC-IP 16 x Off Air ATSC Inputs Tuners to IP Modulator Features:

  • 16 RF Tuners INPUT: ( ATSC, DVB-C Annex A/B QAM, DVB-S/S2)
  • 16 DVB-C RF output (ATSC or DVB-C A/B)  (model dependent)
  • Excellent RF output performance index, MER≥40db
  • 16 groups multiplexing +16 groups scrambling +16 groups QAM modulating
  • 1 IP(MPTS) output over UDP or RTP
  •  512 IP SMPTS' output over UDP or RTP
  • Accurate PCR adjusting
  • PSI/SI editing and inserting
  • VCT edit
  • Web management, Updates via web
  • 16 RF to IP or 16RF to IP+ 16RF ( any combination )

Why not buy this Thor Broadcast H-16ATSC-IP 16 x Off Air ATSC Inputs Tuners to IP Modulator today?

Thor Broadcast H-16ATSC-IP 16 x Off Air ATSC Inputs Tuners to IP Modulator Specifications:

Input

16 INPUT  FTA Tuner selection:: DVB-S/S2 OT ATSC or DVB-C Annex A/B QAM  (Model dependent)

512 IP (GE1only)input over UDP and RTP protocol

2 ASI input, BNC interface

Tuner Section

DVB-S

Input Frequency

950-2150MHz

Symbol rate

2-45Msps

Signal Strength

-65~-25dBm

FEC Demodulation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK

DVB-S2

Input Frequency

950-2150MHz

Symbol rate

QPSK 1~45Mbauds

8PSK 2~30Mbauds

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Demodulation Mode

QPSK, 8PSK

Multiplexing

Maximum PID Remapping

128per input channel

Function

PID remapping (automatically or manually)

Accurate PCR adjusting

Generate PSI/SI table automatically

Modulation Output

Modulation Output format

ATSC or DVB-C Annex A / B QAM ( model dependendt, please chek model selection)

Standard

EN300 429/ITU-T J.83A/B or 8VSB ( ATSC model )

MER

≥40db

RF frequency

50~960MHz, 1KHz step

RF output level

-20~+10dbm(87~107 dbµV),0.1db step

Symbol Rate

5.0Msps~7.0Msps, 1ksps stepping

Constellation

16/32/64/128/256QAM



J.83A

J.83B

Constellation

16/32/64/128/256QAM

64/256 QAM

Bandwidth

8M

6M

System

Remote management

Web NMS (10M/100M)

RF Out

16 DVB-C output or ATSC ( model dependendt, please chek model selection)

IP Out

1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only)

Mirrors one carrier

Language

English

Software Upgrading

Web

General

Dimension

(W*D*H)

482mm×300mm×44.5mm (1RU 19x8x3)

Weight

3.7kg

Temperature

0~45°C(Operation) ; -20~80°C(Storage)

Power

AC 100V±1050/60Hz;

AC 220V±10%, 50/60HZ

Consumption

25W

Why not buy this Thor Broadcast H-16ATSC-IP 16 x Off Air ATSC Inputs Tuners to IP Modulator today?

Thor Broadcast H-16ATSC-IP RF to IP Modulator Manual

Why not buy this Thor Broadcast H-16ATSC-IP 16 x Off Air ATSC Inputs Tuners to IP Modulator today?

Does this unit perform PID remapping, PCR adjustment, and PSI/SI editing?

A: Yes — it supports PID remapping (automatic or manual), accurate PCR adjusting, and PSI/SI table generation/editing.

What RF output modulation formats are available on this model?

A: RF output can be ATSC 8VSB or DVB-C (Annex A/B) QAM, but the exact RF output type is model dependent.

What RF output frequency range and output level adjustment does it offer?

A: RF output frequency is 50–960 MHz (1 kHz step) and output level can be set between -20 and +10 dBm (0.1 dB steps) corresponding to 87–107 dBµV.

Does the unit support web management and firmware updates via web?

A: Yes — the unit offers web management and software upgrading via the web (Web NMS and web-based updates).

What tuner input standards does this model accept?

A: Tuner inputs accept ATSC, DVB-C (Annex A/B QAM), and DVB-S/S2 depending on model configuration.

Can I use this as an ATSC-to-IP gateway for individual subchannels?

A: Yes — you can convert each ATSC channel’s individual TS program (subchannel) into an IP stream using UDP, RTP, or RTSP.

Will this unit let me mix RF-to-RF or RF-to-IP transmodulation?

A: Yes — the device is described as a gateway/transmodulator able to convert RF streams to IP and to other RF channels, with model-dependent options for RF outputs.

Can I get a mirrored carrier over IP from this unit?

A: Yes — the unit documentation includes a note that it can mirror one carrier over IP.

What are the unit's rack dimensions and weight for planning a rack space?

A: The chassis measures 18.98 inches × 11.81 inches × 1.75 inches (18.98 in × 11.81 in × 1.75 in) and it weighs 8.16 pounds (8.16 pounds).
