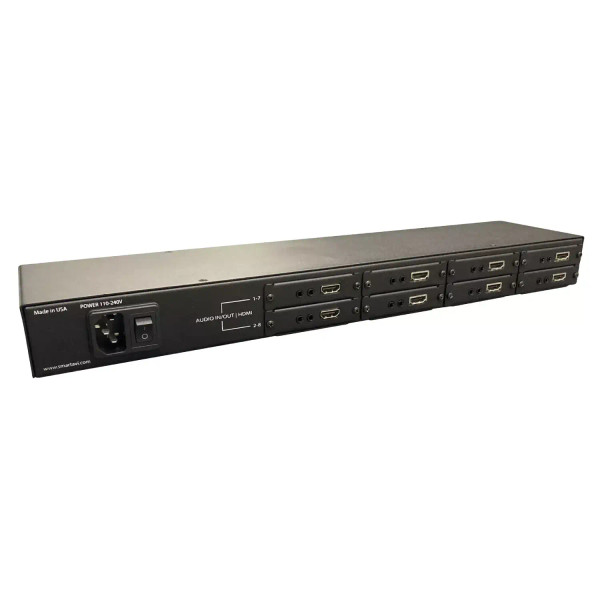

This Smart-AVI HDX-POE-S HDMI, IR and Power Extender Over Single CAT5e/6 Cable that injects power into HDBaseT cat5/cat6 cable that transports both HDMI and IR and picks it off at the load.
Watch and control HDTV 1080p video up to 250ft from the source via Cat5e/6 using HDBaseT and POE technology
Smart-AVI HDX-POE-S HDMI, IR and Power Extender Over Single CAT5e/6 Cable Feature:
- Supports POE: Can be powered by TX or RX
- Extends HDMI,IR and Power Output over one Cat5e/6 Cable
- Extends IR Control Signals for Remote Contro
- Uses HDBaseT Technology
- Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
- Data Signals up to 3.4Gbps
- HDMI 1.4 and HDCP Compliance
- Uses Bi-Directional IR Communication
- Transmits High-Quality Dolby TrueHD, DTS-HD MA Audio Signals
- Transmits 1080p Resolution Video up to 250 ft
Why not buy this Smart-AVI HDX-POE-S HDMI, IR and Power Extender Over Single CAT5e/6 Cable from HDTV Supply today?
Smart-AVI HDX-POE-S HDMI, IR and Power Extender Over Single CAT5e/6 Cable Specifications:
| Video | |
| Resolution | 800X600, 1024X768 , 1280X1024, 1366X768, 1920X1200, 480i, 720p, 1080i, 1080p and 3D |
| Transmission distance: | 70 meters |
| Color Depth | Deep Color 36/30/24 Bit at 1080p and 3D |
| Audio Format | Up to PCM 8 channel, Dolby Digital TrueHD,and DTS-HD Master Audio |
| IR Range | 38kHz, 56kHz |
| Video Bandwidth | 10.2Gbps |
| Input Video Signal | 1.2 Volts P-P |
| Input DDC Signal | 5 Volts(TTL) |
| I/O CONNECTOR (Transmitter) | |
| Input | 1 x HDMI-A 19PIN Socket 5 x 2.5mm 1 x 3.5mm Jack for IR Receiver |
| Output | 1 x RJ45 Jack 1 x 3.5mm Jack for IR Emitter |
| I/O CONNECTOR (Receiver) | |
| Input | 1 x RJ45 Jack 1 x 3.5mm Jack for IR Receiver 5 x 2.5mm |
| Output | 1 x 3.5mm Jack for IR Emitter 1 x HDMI-A 19PIN Socket |
| Mechanical-(transmitter/reciever) | |
| Dimensions | 0.9" x 2.9" x 3.7" |
| Weight | 0.26 lbs |
| Power | External 12V2.5A |
| Environmental | |
| Operating Temperature | +0 to +40° C (+32° to 104° F) |
| Operating Humidity | 10% to 85% (Non-condensing) |
| Storage Temperature | -20° to +60°C (-4° to +140° F) |
| Safety | |
| Certificate | FCC, CE, RoHS |
| Power Adapter | UL, CE, FCC, RoHS |
