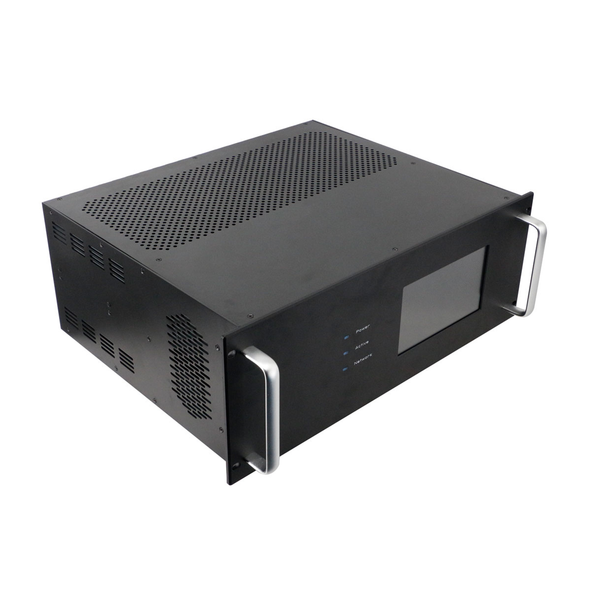

This HDTV Supply WolfPack Modular Secure 4K 60 Hz 16x16 4:4:4 18-GBPS HDR HDMI Matrix Switchers is an integrated HDMI video and HDMI audio modular HDMI matrix routers.
This Secure 16x16 Modular HDMI Matrix Switchers have been designed for installations where security is at its most highest need.
The core of the Secure 16x16 4K 60 Hz 4:4:4 18-GBPS HDR HDMI Matrix Switch consists of a Secure Modular Matrix chassis and its highly configurable backplane that supports 4K 60 Hz single port input cards and 4K 60 Hz single port output cards.
The heart of the Secure 16x16 Modular HDMI Matrix Router is the WolfPack secure chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix supports hot-plugs and you can change the cards while the equipment is still working.
This Secure 16x16 4K 60 Hz 4:4:4 18-GBPS HDR HDMI Matrix Switcher is secure because:
- Supports up to 16-TVs
- Secure and isolation between data paths
- Supports a Non-reprogrammable ROM
- Uses anti-tamper switches or a LCD Sceen to operate
- Signal encryption using HDCP 2.2 compliancy
- It can be only operated from the front display
- There is no WIFI
- There is no RS232 port
- Choice of front panel buttons or LCD Display
- There are no Apps
- There are no CAT6 cabling
- One HDMI connector on each single port board
- Backup Power Supplies on 16x16, 18x18 & 36x36
- The cabinet assembly uses secure screws
By having 1-port HDMI slide in cards the matrix is exceptionally reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.
WolfPack™ 16x16 Secure 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch Configuration:
- 1 - Secure 4K 60 Hz 16-card in and 16-card out chassis
- 16 - Secure 1-port 4K 60 Hz HDMI input cards = 16 - HDMI inputs
- 16 - Secure 1-port 4K 60 Hz HDMI output cards = 16 - HDMI outputs
- 0-additional Secure 4K 60 Hz input slots for future card expansion
- 0-additional Secure 4K 60 Hz output slots for future card expansion
- Choice of front panel buttons or LCD Display Controls
This Secure 16x16 Modular HDMI Matrix Router supports long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc.
This family of Secure Modular HDMI Matrix Routers Feature:
- Chassis sizes: 9x9, 16x16, 18x18 & 36x36
- Input HDMI cable distance: : ~12 feet AWG24 4K 60 Hz HDMI 2.0 high speed cables
- Output HDMI cable distance: ~30 feet AWG24 4K 60 Hz HDMI 2.0 high speed cables
- Support resolution exchanges with several resolutions can be chosen and used
- Hot-pluggable
- Rack-mountable
NOTE: For HDMI distances greater than 30 feet we recommend our Secure 4K 60 Hz Hybrid Fiber/Copper AOC HDMI cables. See the end of the page to buy them.
Why not buy this 16x16 Secure 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch today?
Supports Separate Embedded Audio In and De-embedded Audio Out: These 4K 60 Hz Matrix Switchers allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the HDMI input cards 3.5mm audio connector and then de-embedding the audio on the HDMI output cards 3.5mm audio.
Reasons that set our WolfPack Secure 16x16 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch apart from others:
- 4K 60 Hz HDMI 2.0 cards for the best picture
- Uses a 4K 60 Hz Card cage chassis
- Custom made to your needs
- Secure Control only from the front panel
- 2-Year WolfPack Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other Secure in & out cards available are VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
- Built-in Video Wall Processor
- ISO 9001 manufactured
Secure Modular HDMI Matrix Routers Specs:
- Resolution support: 4K/60, 4K/30, 1080p/60, 1080p/30, 1080i, 720p, 480p, but cannot support 480i
- Supported Input & Outputs Signals:
- HDMI Port: Up to 4K at 60 Hz In & Out
- Power Supply: 100 to 240VAC, 50-60Hz
- Power Consumption: 50W to 70W
- Operating Temperature: -10C to 50C
- Storage Temperature: -25C to 55C
Q: What are the dimensions of all your chassis?
A: They are:
9x9: 2U - 18.97x15.35x3.46 inches
16x16: 3U - 18.97x15.35x5.0 inches
18x18: 4U - 18.97x15.35x7.0 inches
36x36: 8U - 8.97x15.35x14.0 inches
80x80: 16U - 18.97x15.35x28 inches
160x160: 31.5U - 8.97x18.31x55.12 inches
Why not buy this Secure 16x16 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch?
9x9 Modular Matrix Switcher Brochure
Why not buy this Secure 16x16 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch today?
Benefits of Using HDR
Q: What is HDR?
A: HDR stands for High Dynamic Range, a technology used in TVs, monitors, cameras, and video content to deliver enhanced contrast, richer colors, and more lifelike images.
Q: How does HDR improve picture quality?
A: HDR enhances both the brightest and darkest parts of an image, allowing for more detail in shadows and highlights. It also makes colors appear more vivid and natural, improving overall image realism.
Q: What are the main benefits of HDR?
A: They are:
- Higher contrast – Brighter whites and deeper blacks.
- Wider color range – A broader spectrum of visible shades and tones.
- Greater realism – Especially noticeable in scenes like sunsets, fireworks, and nature landscapes.
Q: What are the common types of HDR formats?
A: They are:
- HDR10 – The most common format, widely supported across TVs and streaming platforms.
- Dolby Vision – A premium format that uses dynamic metadata for scene-by-scene optimization.
- HDR10+ – An enhanced version of HDR10 developed by Samsung and Amazon.
- HLG (Hybrid Log-Gamma) – Tailored for live TV broadcasts.
Dolby Vision
Q: What is Dolby Vision?
A: Dolby Vision is an advanced form of HDR (High Dynamic Range) technology developed by Dolby Laboratories. It enhances video quality by dynamically optimizing contrast, brightness, and color—scene by scene or even frame by frame.
Q: How does Dolby Vision improve your viewing experience?
A: Dolby Vision delivers a more lifelike and immersive picture by adjusting image settings in real time. It offers deeper contrast, richer colors, and greater detail compared to standard HDR formats.
Q: What are the key benefits of Dolby Vision?
A: They are:
- Dynamic Metadata – Automatically adjusts brightness and color settings for each scene or frame, unlike HDR10 which uses a static profile.
- Exceptional Picture Quality – Supports up to 12-bit color depth and higher peak brightness for improved contrast and subtle color variations.
- Wide Device Support – Compatible with select TVs, smartphones, tablets, laptops, and streaming platforms such as Netflix, Disney+, and Apple TV+.
- Filmmaker-Grade Precision – Used during post-production for precise color grading, ensuring accurate visual presentation on supported displays.
Still have questions? Reach out to our team for expert assistance.
