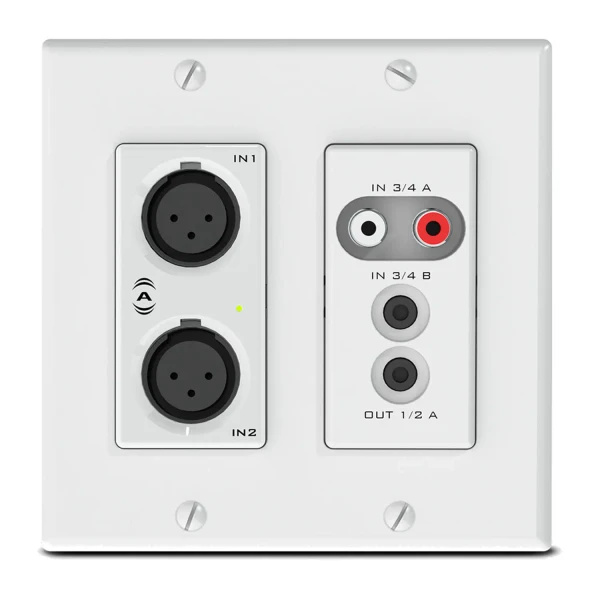

The QSC unD6IO AtteroTech Dante Networked 4x2 Audio Wall Plate is designed for in-wall installation in a 2-gang US junction box. It provides flexible Dante audio connectivity for professional AV installations.

Its compact form factor and versatile input/output options make it ideal for connecting microphones, line-level audio sources, and other devices close to where they are used.

By transmitting audio over a Dante network, the unD6IO helps reduce the need for long analog audio cable runs and separate power supplies, providing a clean installation and flexible audio routing.

Dante networked 4-input, 2-output audio wall plate in a 2-gang US form factor.
Dante Domain Manager ready.
Two balanced XLR mic/line inputs, two RCA inputs, and one 3.5 mm stereo input.
Two balanced line-level outputs via a detachable 6-pin Euroblock connector and two unbalanced outputs via a 3.5 mm TRS connector.
Software-controlled output volume and selectable input gain settings.
Switchable +48 V phantom power for XLR inputs 1 and 2.
Power over Ethernet (PoE) support using IEEE 802.3af.
Q-SYS control plugin support for integration with the Q-SYS ecosystem.
RCA and 3.5 mm inputs can be selected individually or combined as supported by the configuration.
Optional product accessory kit available separately.

Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Get the QSC unD6IO from HDTV Supply

Contact HDTV Supply for assistance with the QSC unD6IO and your professional Dante audio networking requirements.

Ask a Question About the QSC unD6IO

Need help with compatibility, installation, or Dante network integration? Contact our team.

Email HDTV Supply Customer Service

QSC unD6IO Specifications

Audio Inputs
Input Types	2 balanced, RF-filtered XLR; 2 stereo unbalanced RCA; 1 stereo unbalanced 3.5 mm
Selectable Gain (Inputs 1/2)	-18 dB, -3 dB, +25 dB, +40 dB; software selectable
Input Impedance	Greater than 1.8 kΩ at any gain for inputs 1/2; greater than 10 kΩ for inputs 3/4 A and B
Maximum Input Level (Inputs 1/2)	+20 dBu at -18 dB gain; +6 dBu at -3 dB gain; -23 dBu at +25 dB gain; -38 dBu at +40 dB gain
Maximum Input Level (Inputs 3/4 A and B)	+12 dBu
Phantom Power	+48 V, inputs 1 and 2 only
Audio Outputs
Output Types	2 balanced line-level outputs on 6-pin detachable Euroblock; 2 unbalanced outputs on stereo 3.5 mm TRS
Output Muting	Balanced outputs automatically mute when the Dante signal is lost
Attenuation Range	-60 to 0 dB, software controlled
Output Impedance	200 Ω balanced; 100 Ω unbalanced
Maximum Output Level	+12 dBu at 0 dB attenuation for output 1/2 A; +20 dBu at 0 dB attenuation for output 1/2 B
Audio Performance
Equivalent Input Noise (EIN)	-115 dBu, mic inputs 1/2
Input THD+N	Less than 0.02% at 1 kHz for mic inputs 1/2 with input signal 3 dB below maximum; less than 0.01% for line inputs 3/4
Input Frequency Response (Inputs 1/2)	20 Hz–20 kHz, ±1 dB at -18 dB and -3 dB gain; 50 Hz–20 kHz, ±1 dB at +25 dB and +40 dB gain
Input Frequency Response (Inputs 3/4 A and B)	20 Hz–20 kHz, ±1 dB
Output Dynamic Range	Greater than 97 dB
Output THD+N	Less than 0.01% at 1 kHz, with input signal 3 dB below maximum
Output Frequency Response	20 Hz–20 kHz, ±1 dB at -18 dB and -3 dB gain; 50 Hz–20 kHz, ±1 dB at +25 dB and +40 dB gain
Dante Networking
Physical Interface	Standard Ethernet
Connector	Single RJ45
Network Cable	Cat 5e or higher
Transmission Speed	100 Mb/s
Supported Sample Rates	44.1 kHz and 48 kHz
Minimum Dante Network Latency	1 ms
Power and Environment
Power Source	PoE, IEEE 802.3af
Power Consumption	Less than 5.5 W
Operating Temperature	32°F to 104°F (0°C to 40°C)
Compliance
Standards	FCC CFR 47 Part 15B Class A, ICES-003, CE (EN55022), RoHS, REACH
Physical
Unit Dimensions	4.2 × 3.5 × 2 in (10.7 × 8.9 × 5.1 cm)
Decora Wall Plate Dimensions	4.9 × 4.9 × 0.1 in (12.4 × 12.5 × 0.2 cm)
Product Weight	0.6 lb (0.3 kg)
Package Weight	1.15 lb
Box Dimensions (L × W × H)	6 × 5.9 × 3.9 in

QSC unD6IO Manuals

QSC unD6IO User Manual (PDF)

Frequently Asked Questions

Q1: What is the QSC unD6IO?

A: The QSC unD6IO is a Dante networked audio wall plate designed to connect local audio sources and outputs to a professional audio network.

Q2: How many audio inputs does the unD6IO provide?

A: It provides two balanced XLR inputs, two RCA inputs, and one 3.5 mm stereo input. The available audio channels and routing depend on the device configuration.

Q3: What output connections are available?

A: The unit provides two balanced line-level outputs through a detachable 6-pin Euroblock connector and two unbalanced outputs through a 3.5 mm TRS connector.

Q4: Does the unD6IO support phantom power?

A: Yes. It supports switchable +48 V phantom power on XLR inputs 1 and 2.

Q5: How is the QSC unD6IO powered?

A: The unit supports Power over Ethernet (PoE) compliant with IEEE 802.3af. Its specified power consumption is less than 5.5 W.

Q6: What network connection does it use?

A: It uses a single RJ45 Ethernet connection and supports Cat 5e or higher network cabling.

Q7: Is the unD6IO compatible with Q-SYS?

A: The product supports a Q-SYS control plugin for integration with the Q-SYS ecosystem. Confirm compatibility with your specific system software and configuration before deployment.

Q8: Can the input gain be adjusted?

A: Yes. Software-selectable gain settings are available for XLR inputs 1 and 2, including -18 dB, -3 dB, +25 dB, and +40 dB.

Q9: What sample rates does the unD6IO support?

A: The specified Dante sample rates are 44.1 kHz and 48 kHz.

Q10: Is the unD6IO suitable for wall installation?

A: Yes. It is designed for installation in a 2-gang US junction box and uses a Decora-style wall plate form factor.

Q11: How does the QSC unD6IO connect analog audio sources to a Dante network?

A: It accepts audio from its analog input connections and makes the configured audio available for routing over a Dante network through Ethernet.

Q12: What are the key benefits of using the unD6IO in a commercial AV system?

A: Its combination of local analog connections, Dante networking, PoE, and software-controlled settings can simplify audio distribution and reduce the need for long analog cable runs.

Q13: What network cabling is recommended for the QSC unD6IO?

A: Cat 5e or higher Ethernet cabling is specified. Ensure the network is configured for Dante audio and that the connected PoE equipment meets IEEE 802.3af requirements.

Q14: Can the unD6IO output volume be controlled remotely?

A: Yes. Its output attenuation is software controlled, with a specified range of -60 dB to 0 dB.

Q15: Where can I get help choosing or integrating the QSC unD6IO?

A: Contact HDTV Supply at customerservice@hdtvsupply.com for product guidance and assistance with your AV requirements.

QSC unD6IO Warranty

QSC warranty coverage is subject to the manufacturer's current terms, conditions, and eligibility requirements. Please confirm the applicable warranty period for the unD6IO with QSC or HDTV Supply before purchase.

For warranty questions or assistance, contact HDTV Supply Customer Service.
