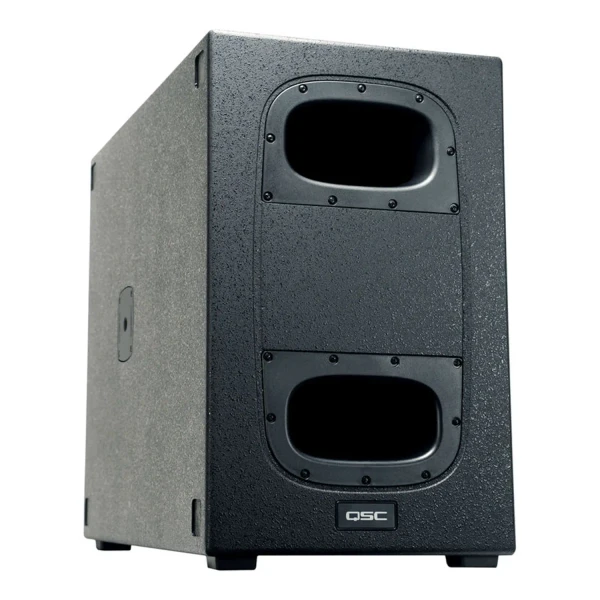

QSC KS212C 3600W Dual 12 Inch Cardioid Subwoofer

QSC

$2,740.29
Part Number:
QSC-KS212C
Condition:
New
Availability:
3-5 Days
1:
Compact Single-Box Cardioid Solution
2:
2 x 12 Inch Woofers
3:
3600 Watts Class-D Power Module
4:
Vertical or Horizontal Deployment
5:
Free USA Insured Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC KS212C 3600W Dual 12-Inch Cardioid Subwoofer is a single-enclosure powered cardioid subwoofer designed for mobile entertainers, AV production, rental professionals, and smaller performance venues.

The KS212C features a 3600W peak Class-D amplifier powering two 12-inch long-excursion drivers in a dual sixth-order bandpass design. Its cardioid configuration provides up to 15 dB of front-to-rear attenuation, helping reduce low-frequency energy behind the subwoofer.

The supplied specifications list a frequency response of 44 Hz to 104 Hz (-6 dB) and a peak maximum SPL of 132 dB at 1 meter.

Conventional subwoofers radiate low-frequency energy in multiple directions, which can create unwanted bass buildup on stage and behind the sound system. The KS212C's cardioid design helps control rearward low-frequency output without requiring a multi-enclosure subwoofer array.

The enclosure can be deployed vertically or horizontally and includes M20 threaded pole sockets for supported configurations. Its plywood construction and rugged finish are designed for professional use.

The rear control panel includes an LCD interface, adjustable crossover settings, recallable scenes, Intrinsic Correction tuning, and loudspeaker management features. Connections include two combo XLR-1/4-inch inputs and two XLR pass-through outputs. A locking IEC power cord is included.

READ MORE

QSC KS212C 3600W Dual 12-Inch Cardioid Subwoofer Features:

  • Compact, single-enclosure powered cardioid subwoofer
  • 3600W peak Class-D amplifier
  • Cardioid pattern provides up to 15 dB front-to-rear attenuation, as specified
  • Two 12-inch long-excursion drivers in a dual sixth-order bandpass design
  • Adjustable crossover settings and recallable scenes
  • Intrinsic Correction tuning and loudspeaker management
  • Professional enclosure design for performance and event applications
  • Rugged plywood enclosure with durable finish
  • Vertical or horizontal deployment, with M20 pole sockets for supported configurations
  • Optional KS-LOC security cover to help prevent unauthorized control adjustments
  • EASE and CAD information referenced in the supplied product details
  • Limited 6-year warranty, as stated in the supplied product information; confirm applicable terms

QSC Certified Expertise with Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why not buy this QSC KS212C 3600W Dual 12-Inch Cardioid Subwoofer from HDTV Supply today?

Choose HDTV Supply for the QSC KS212C powered cardioid subwoofer for professional sound reinforcement and event applications. Contact our team for product guidance and assistance with your order.

Ask a Question (0):

There are no questions for this product, click the button below to ask one.

QSC KS212C 3600W Dual 12-Inch Cardioid Subwoofer Specifications:

Specification Details
Type Active subwoofer
Enclosure Design Bandpass cardioid
Total Output Power 3600W peak, as supplied
Amplifier Class Class-D
Low-Frequency Drivers 2 x 12-inch (30.5 cm) cone drivers
Frequency Range (-10 dB) 39 Hz–118 Hz
Frequency Response (-6 dB) 44 Hz–104 Hz
Maximum SPL 132 dB peak at 1 meter, as supplied
Crossover Frequencies 80 Hz / 100 Hz, as supplied
EQ and Filters LF boost and low-pass filter
DSP Functions Crossover, delay, subwoofer throw pattern, user settings, venue settings, and voicing modes, as supplied
Inputs 2 x combo XLR-1/4-inch TRS
Pass-Through Outputs 2 x 3-pin XLR
Network I/O None listed
USB I/O None listed
Wireless None listed
Mobile App Compatibility None listed
AC Input 100–240 VAC, 50/60 Hz
Power Connector Locking IEC
Color Black
Mounting Two M20 threaded pole sockets, located on the side and top as supplied
Handles One top handle, as supplied
Construction Plywood
Environmental Resistance Not specified as weather-resistant
Dimensions 24 x 15 x 33.5 inches (609.6 x 381 x 850.9 mm)
Product Weight 88.4 lb (40.1 kg)
Box Dimensions (L x W x H) 38 x 27 x 20 inches

Why not buy this QSC KS212C 3600W Dual 12-Inch Cardioid Subwoofer from HDTV Supply today?

QSC KS212C 3600W Dual 12-Inch Cardioid Subwoofer Manuals:

QSC KS212C User Manual — Verify Model

The supplied manual link appears to reference a different model number. Please verify the document before publishing or using it as the official KS212C manual. Contact HDTV Supply for additional documentation or assistance.

What is the QSC KS212C?

A: The QSC KS212C is a powered cardioid subwoofer with two 12-inch drivers, designed for professional sound reinforcement and applications where control of rearward bass output is important.

How many drivers does the KS212C have?

A: The supplied specifications list two 12-inch low-frequency drivers.

What is a cardioid subwoofer?

A: A cardioid subwoofer is designed to direct more low-frequency energy forward while reducing output toward the rear, helping control bass behind the sound system.

How much rear attenuation does the KS212C provide?

A: The supplied product details state up to 15 dB of front-to-rear attenuation. Actual performance depends on operating conditions and setup.

What is the peak amplifier power?

A: The supplied listing describes a 3600W peak Class-D amplifier module. Verify the manufacturer's power-rating terminology when comparing products.

What is the frequency response of the KS212C?

A: The supplied specifications list 44 Hz–104 Hz at -6 dB and 39 Hz–118 Hz at -10 dB.

What is the maximum SPL?

A: The supplied specifications list a peak maximum SPL of 132 dB at 1 meter.

Can the KS212C be installed vertically or horizontally?

A: The supplied product information describes both vertical and horizontal deployment. Follow QSC's guidance for supported placement and pole use.

Does the KS212C have built-in signal processing?

A: Yes. The supplied details list crossover, delay, voicing modes, user and venue settings, and subwoofer throw-pattern functions.

What audio connections are available?

A: The supplied specifications list two combo XLR-1/4-inch inputs and two XLR pass-through outputs.

What applications is the QSC KS212C designed for?

A: It is described for mobile entertainment, AV production, rental use, and smaller performance venues.

Does the KS212C include pole-mount sockets?

A: The supplied specifications list M20 threaded pole sockets. Check the manufacturer's instructions for approved mounting configurations.

What material is used for the KS212C enclosure?

A: The supplied specifications identify plywood construction with a rugged finish.

Is the KS212C weather-resistant?

A: The supplied specifications do not identify the enclosure as weather-resistant. Confirm the manufacturer's environmental-use guidance before using it outdoors.

Where can I get help choosing the QSC KS212C?

A: Contact HDTV Supply at customerservice@hdtvsupply.com for assistance with product questions and application requirements.

Why not buy this QSC KS212C 3600W Dual 12-Inch Cardioid Subwoofer from HDTV Supply today?

QSC KS212C 3600W Dual 12-Inch Cardioid Subwoofer Warranty:

The supplied product information states a limited 6-year warranty. Warranty coverage, eligibility, registration requirements, and exclusions are subject to QSC's applicable manufacturer warranty terms. Please confirm the current warranty conditions with QSC or HDTV Supply before relying on the stated term.
