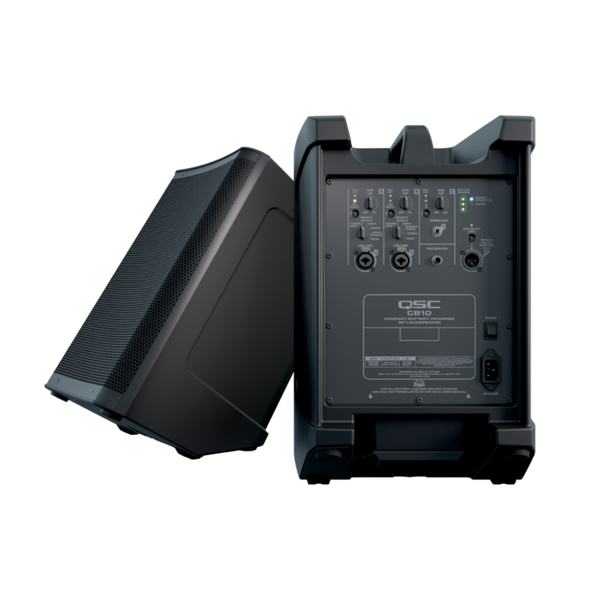

The QSC CB10 is a compact, battery-powered two-way loudspeaker system designed for professional events, DJs, mobile entertainers, musicians, and portable PA applications. It combines a 10-inch low-frequency driver, 1-inch compression driver, 440W peak Class-D amplification, and an integrated 3-channel mixer in a lightweight and portable enclosure.
The CB10 provides flexible operation with rechargeable battery or AC power, Bluetooth 5.1 audio and control, and remote system management through the QSC Loudspeaker Control app. With up to 12 hours of battery operation, integrated room delay, pole mounting, and a 30-degree tilt-back position, the CB10 is designed for convenient deployment in a wide range of professional and mobile applications.
- 10-Inch Woofer with 1-Inch Compression Driver
- 440W Peak Class-D Amplification
- Up to 12 Hours of Battery Operation
- Bluetooth 5.1 and 3-Channel Mixer
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying QSC solutions. When you purchase QSC products from HDTV Supply, you are working with a team that understands the QSC platform and can help you make informed product and system decisions.
Why not buy this QSC CB10 10-Inch Compact Battery-Powered Loudspeaker System today?
Ask a Question
Have a question about the QSC CB10? Our knowledgeable team is ready to help with specifications, battery operation, accessories, applications, compatibility, and purchasing information.
Contact HDTV Supply Customer Support
Why not buy this QSC CB10 10-Inch Compact Battery-Powered Loudspeaker System today?
Specifications
| Specification | Details |
|---|---|
| Model | CB10 |
| Configuration | Two-Way Rechargeable Loudspeaker System |
| Low-Frequency Transducer | 254 mm (10-inch) Cone |
| High-Frequency Transducer | 25.4 mm (1-inch) Compression Driver |
| Frequency Response (-6 dB) | 51 Hz - 18 kHz |
| Frequency Range (-10 dB) | 47 Hz - 20 kHz |
| Coverage Angle | 90° Axisymmetric |
| Maximum Rated SPL | 127 dB @ 1 m Peak |
| Amplification | Class D, 440W Peak |
| Cooling | Convection Cooling |
| Mixer | Integrated 3-Channel Mixer |
| Bluetooth | Bluetooth 5.1 Audio and Control with True Wireless Stereo |
| Battery | Rechargeable Lithium-Ion, 22.2V, 4400mAh, 97Wh |
| Battery Life | Up to 12 Hours |
| Battery Charging Time | Approximately 4 Hours |
| AC Power Input | 100-240 VAC, 50/60 Hz |
| Inputs | 2 x Locking XLR/F 1/4-Inch Combo; 1 x 3.5 mm TRS Stereo Input |
| Footswitch Input | 1 x 6.3 mm TS |
| Mix Output | 1 x XLR/M |
| Loudspeaker Control App | iOS and Android |
| Room Delay | Up to 200 ms |
| Enclosure Material | Polypropylene |
| Grille | Powder-Coated Steel with Internal Lining, 18 Gauge |
| Color | Black (RAL 9011) |
| Dimensions (H x W x D) | 18.3 x 12.3 x 11.3 in |
| Net Weight | 26.9 lbs |
| Shipping Weight | 32 lbs |
| Mounting | Integrated Pole Cup and 30° Tilt-Back Floor Deployment |
| Optional Accessories | CB10-CVR Weatherized Cover; CB10-BATTERY Rechargeable Battery Module |
Why not buy this QSC CB10 10-Inch Compact Battery-Powered Loudspeaker System today?
Manuals
Why not buy this QSC CB10 10-Inch Compact Battery-Powered Loudspeaker System today?
What is the QSC CB10?
A: The QSC CB10 is a compact two-way loudspeaker system that can operate from rechargeable battery power or AC power.
How powerful is the QSC CB10?
A: The CB10 uses a Class-D amplifier rated at 440W peak power and can produce up to 127 dB peak SPL at 1 meter.
What size woofer does the CB10 have?
A: The CB10 features a 10-inch low-frequency cone driver paired with a 1-inch high-frequency compression driver.
How long does the CB10 battery last?
A: The rechargeable battery can provide up to 12 hours of operation under appropriate operating conditions.
How long does it take to charge the CB10 battery?
A: The battery takes approximately 4 hours to recharge.
Does the QSC CB10 support Bluetooth?
A: Yes. The CB10 features Bluetooth 5.1 for audio and control, including True Wireless Stereo functionality.
Can the CB10 operate without AC power?
A: Yes. The CB10 includes a removable rechargeable 97Wh lithium-ion battery for portable operation without AC power.
Does the CB10 have a built-in mixer?
A: Yes. The CB10 features an integrated 3-channel mixer with inputs for microphones, instruments, and stereo audio sources.
Can the QSC CB10 be controlled from a phone?
A: Yes. The QSC Loudspeaker Control app for iOS and Android provides remote control of key audio settings and system functions.
Can the CB10 be mounted on a speaker stand?
A: Yes. The CB10 includes an integrated pole cup for stand or pole mounting and can also be deployed on the floor using its 30-degree tilt-back position.
What is the QSC CB10 best used for?
A: The CB10 is designed for DJs, mobile entertainers, event professionals, musicians, bands, presentations, and portable PA applications where battery-powered operation is useful.
Can the QSC CB10 be used for a small event without a power outlet?
A: Yes. Its rechargeable battery allows the CB10 to operate without an AC power connection, making it suitable for mobile events and locations where power access is limited.
Does the CB10 support True Wireless Stereo?
A: Yes. Bluetooth 5.1 supports True Wireless Stereo functionality for compatible CB10 systems and audio sources.
Can the QSC CB10 be used as a delay speaker?
A: Yes. The CB10 includes room delay of up to 200 ms, allowing it to be used for distributed PA and delay-line applications.
How long is the QSC CB10 warranty?
A: The CB10 has a 6-year warranty when the product is registered within 30 days of purchase. The battery is covered for 1 year.
Why not buy this QSC CB10 10-Inch Compact Battery-Powered Loudspeaker System today?
Warranty
The QSC CB10 is covered by a 6-Year Limited Warranty when the product is registered within 30 days of purchase. The rechargeable battery is covered by a 1-Year Warranty.
Warranty coverage is subject to QSC's current warranty terms and conditions. Product registration is required within 30 days of purchase to receive the extended 6-year coverage.
