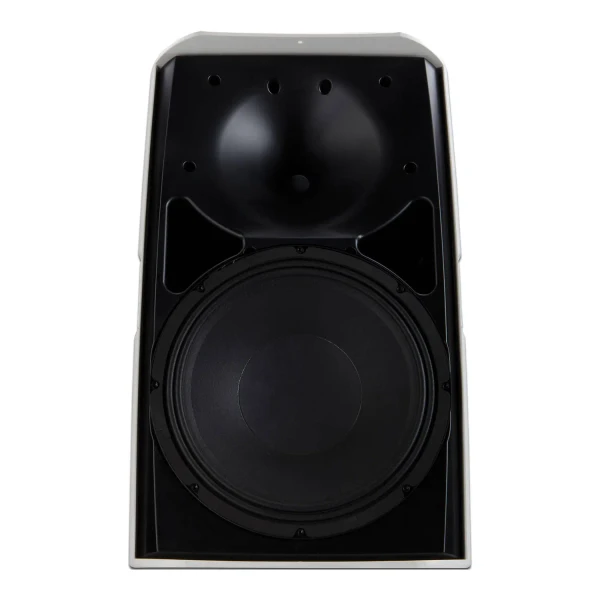

The QSC AD-S12-WH AcousticDesign Series 12-Inch 2-Way 300W Surface-Mount Loudspeaker (Single, White) is a passive, 8-ohm loudspeaker designed for foreground and background music applications. Featuring a 12-inch weather-treated woofer, a 1-inch exit compression driver, and QSC's Directivity Matched Transition (DMT) technology, it delivers consistent sound coverage for commercial and professional installations.
The AD-S12-WH provides 75-degree conical coverage, a frequency range of 52 Hz to 20 kHz at -10 dB, and a peak maximum SPL of 126 dB. Its DMT waveguide is designed to improve off-axis response and create a consistent transition between the low- and high-frequency drivers.
The included X-Mount system supports flexible horizontal and vertical positioning for wall or ceiling installations. Additional mounting options are available through separately sold M10-compatible accessories.
A rugged ABS enclosure, powder-coated aluminum grille, and sealed input cover help protect the speaker in demanding indoor and outdoor environments. The 4-pole Euroblock connector supports speaker input and loop-through wiring.
For optimized system performance, QSC Intrinsic Correction voicing filters are available through compatible Q-SYS processing or CXD amplifier platforms, sold separately.
QSC AD-S12-WH AcousticDesign Loudspeaker Features
- 12-inch, 2-way passive loudspeaker for foreground and background music applications.
- 300W RMS power handling with 8-ohm impedance.
- 75-degree conical coverage using QSC Directivity Matched Transition technology.
- Frequency range of 52 Hz to 20 kHz at -10 dB and peak maximum SPL of 126 dB.
- Weather-treated paper-cone woofer with a 2.5-inch voice coil and a 1-inch exit compression driver.
- Included X-Mount system supports horizontal, vertical, wall, and ceiling installations.
- Rugged ABS enclosure and powder-coated aluminum grille with dust and splash resistance exceeding IP54 ratings.
- 4-pole Euroblock input and loop-through connector under a sealed input cover.
- M10 mounting compatibility for separately available accessories, including the YMS12 yoke mount and Kit-C shoulder eyebolts.
- Compatible Q-SYS processing or CXD amplifier platforms can provide QSC Intrinsic Correction voicing filters.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC AD-S12-WH from HDTV Supply?
The QSC AD-S12-WH combines powerful audio performance, flexible mounting, and durable construction for commercial sound installations. Order from HDTV Supply for your restaurant, retail space, educational facility, worship venue, or other professional audio project.
Ask a Question About the QSC AD-S12-WH
Have questions about the QSC AD-S12-WH loudspeaker, its mounting options, amplifier compatibility, or installation requirements? Contact HDTV Supply for product assistance.
QSC AD-S12-WH AcousticDesign Series Loudspeaker Specifications
| General | |
|---|---|
| Model | QSC AD-S12-WH |
| Series | AcousticDesign |
| Speaker Type | Passive surface-mount loudspeaker |
| Quantity | Single loudspeaker |
| Speaker Configuration | 2-way |
| Impedance | 8 ohms |
| Power Handling | 300W RMS (2-hour rating, low impedance) |
| Recommended Amplifier Power | 600W |
| Enclosure Type | Sealed |
| Drivers | |
| Low-Frequency Driver | 1 x 12-inch / 30.48cm paper-cone woofer |
| LF Voice Coil | 2.5 inches / 6.35cm |
| High-Frequency Driver | 1 x 1-inch / 2.54cm exit compression driver |
| HF Voice Coil | 1.4 inches / 3.56cm |
| Performance | |
| Frequency Range | 52Hz–20kHz (-10 dB) |
| Maximum SPL, Continuous | 120dB |
| Maximum SPL, Peak | 126dB |
| Sensitivity | 95dB SPL |
| Coverage Angle | 75 degrees conical |
| Directivity Factor (Q) | 12 |
| Directivity Index | 11dB |
| Connectivity | |
| Speaker Connector | 1 x removable 4-pole Euroblock input/through connector |
| Physical and Environmental | |
| Color | White |
| Enclosure Material | ABS |
| Grille Material | Powder-coated aluminum |
| Environmental Resistance | Dust and splash resistant; exceeds IP54 ratings as specified |
| Operating Temperature | -4°F to 122°F / -20°C to 50°C |
| Mounting | Included X-Mount system; rear bracket point; two M10 suspension points on the bottom |
| Dimensions (W x H x D) | 23.4 x 13.9 x 12.7 inches / 59.44 x 35.31 x 32.26cm |
| Product Weight | 35.2lb / 16kg |
| Packaging Information | |
| Package Weight | 50.6lb |
| Box Dimensions (L x W x H) | 34.25 x 17.75 x 17.25 inches |
QSC AD-S12-WH Manuals and Documentation
QSC AD-S12-WH User Manual (PDF)
Refer to the documentation for installation guidance, connection details, mounting instructions, and product specifications.
Q/A
Q1: What is the QSC AD-S12-WH AcousticDesign loudspeaker?
The QSC AD-S12-WH is a single, white, passive 12-inch, 2-way surface-mount loudspeaker designed for professional foreground and background music systems.
Q2: How much power can the AD-S12-WH handle?
The supplied specifications list 300W RMS power handling for a 2-hour rating in low-impedance operation. The listed recommended amplifier power is 600W. Follow QSC's guidance when matching the speaker to an amplifier.
Q3: What is the impedance of the AD-S12-WH?
The AD-S12-WH has an 8-ohm nominal impedance and is designed for compatible low-impedance amplifier systems.
Q4: What is the frequency response of this loudspeaker?
The specified frequency range is 52Hz to 20kHz at -10 dB, making it suitable for a range of commercial music and sound-reinforcement applications.
Q5: How loud can the QSC AD-S12-WH play?
The supplied specifications list a maximum SPL of 120dB continuous and 126dB peak.
Q6: What coverage pattern does the AD-S12-WH provide?
It provides 75-degree conical coverage. QSC's Directivity Matched Transition technology is designed to help maintain consistent coverage and improve off-axis response.
Q7: Can the AD-S12-WH be installed outdoors?
The speaker has dust and splash resistance exceeding IP54 ratings as specified, and a weather-treated woofer. Confirm that the proposed location and exposure conditions are appropriate and follow QSC's installation instructions. It should not be assumed to be waterproof or suitable for every outdoor environment.
Q8: What mounting hardware is included?
The AD-S12-WH is supplied with QSC's X-Mount system for flexible positioning. Additional accessories, including the YMS12 yoke mount and Kit-C shoulder eyebolts, are available separately.
Q9: What connections does the AD-S12-WH use?
It uses a removable 4-pole Euroblock connector for speaker input and loop-through wiring. The connector is located under a sealed input cover intended to help protect the terminals from moisture.
Q10: Is the QSC AD-S12-WH an active or passive speaker?
The AD-S12-WH is a passive loudspeaker. It requires a compatible external amplifier and does not have a built-in powered amplifier.
Q11: What applications are suitable for the QSC AD-S12-WH?
It is designed for commercial sound reinforcement in locations such as restaurants, retail stores, educational facilities, worship spaces, concourses, casinos, transportation terminals, and other venues requiring foreground or background music.
Q12: What are the benefits of DMT technology in the AD-S12-WH?
Directivity Matched Transition technology is designed to align the coverage patterns of the woofer and high-frequency waveguide around the crossover region, supporting more consistent coverage and improved off-axis response.
Q13: Can the AD-S12-WH be mounted horizontally or vertically?
Yes. The included X-Mount system supports horizontal or vertical positioning for wall and ceiling installations at a variety of angles. Always follow the supplied mounting instructions and applicable safety requirements.
Q14: Can the AD-S12-WH use QSC Intrinsic Correction voicing filters?
QSC Intrinsic Correction voicing filter sets are available through compatible Q-SYS processing or CXD amplifier platforms, which are sold separately. Verify the selected processing and amplifier equipment supports the intended configuration.
Q15: Where can I buy the QSC AD-S12-WH loudspeaker?
You can order the QSC AD-S12-WH AcousticDesign Series 12-Inch 2-Way Loudspeaker from HDTV Supply. Contact the team for current availability, product questions, and assistance selecting compatible audio equipment.
QSC AD-S12-WH Warranty Information
Please contact HDTV Supply or QSC to confirm the applicable warranty coverage for the QSC AD-S12-WH and the terms associated with your purchase.
