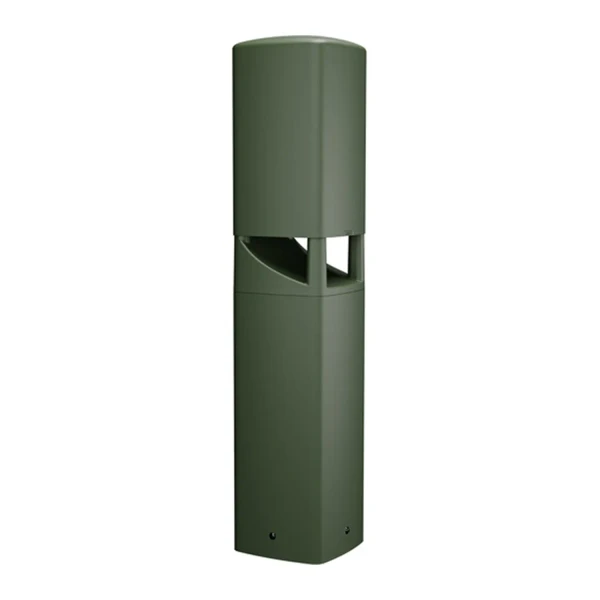

QSC AD-DWL.180 AcousticDesign Series 5.25 Inch 2-Way 60W Outdoor Landscape Loudspeaker (Green)

QSC

QSC AD-DWL.180 AcousticDesign Series 5.25 Inch 2-Way 60W Outdoor Landscape Loudspeaker (Green)
$755.00
Part Number:
QSC-AD-DWL.180
Condition:
New
Availability:
3-5 Days
1:
5.25 Inch Woofer
2:
60W RMS Power Handling
3:
110 dB Peak Maximum SPL
4:
Wire Pig-Tail Input
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC AD-DWL.180 AcousticDesign Series 5.25-Inch 2-Way 60W Outdoor Landscape Loudspeaker (Green) is a weather-resistant landscape loudspeaker designed to deliver high-quality audio in outdoor environments, including gardens, patios, parks, hospitality venues, and commercial landscapes.

Featuring a 5.25-inch weather-treated woofer and a 1-inch aluminum dome tweeter, the AD-DWL.180 delivers a frequency range of 55 Hz to 25 kHz. Its elevated bollard design and 180-degree coverage help distribute sound across outdoor listening areas.

The speaker supports 70V and 100V distributed audio systems, with a 16-ohm bypass option. It includes a concrete mounting collar, installation template, and mounting hardware. The AD-DWL.BASE accessory for in-ground installation is sold separately.

QSC AD-DWL.180 Features

  • Two-Way Outdoor Audio: Combines a 5.25-inch weather-resistant woofer and a 1-inch aluminum dome tweeter.
  • Wide Sound Coverage: Provides 180-degree coverage for outdoor listening areas.
  • Flexible Audio Integration: Supports 70V/100V transformer operation and a 16-ohm bypass option.
  • Durable Landscape Design: Features a green polypropylene/fiberglass-style exterior, tamper-resistant stainless-steel hardware, and an IP55 rating as specified in the product information.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why Buy the QSC AD-DWL.180 from HDTV Supply?

Shop HDTV Supply for the QSC AD-DWL.180 Outdoor Landscape Loudspeaker. Contact our team for product information and assistance choosing audio equipment for your outdoor installation.

Ask a Question

Have questions about the QSC AD-DWL.180 AcousticDesign Series Outdoor Landscape Loudspeaker? Contact HDTV Supply for product information and assistance.

Phone: 833-WOLFPACK

Contact HDTV Supply

QSC AD-DWL.180 Specifications

Speaker
Active/Passive Passive
Number of Included Speakers 1
Speaker Configuration 2-Way
Power Handling 60W RMS
70V Transformer Taps 60W / 30W / 15W / 7.5W
100V Transformer Taps 60W / 30W / 15W
Low-Impedance Bypass 16 Ohms (as listed in product features)
Impedance 8 Ohms (transformer bypassed, as listed in supplied specifications; verify with manufacturer)
Enclosure Type Sealed
Drivers
HF Driver 1 × 1-inch (2.5 cm) horn-loaded aluminum dome tweeter
LF Driver 1 × 5.25-inch (13.34 cm) paper woofer
Performance
Frequency Range 55 Hz–25 kHz (-10 dB)
Maximum SPL (Continuous) 104 dB
Maximum SPL (Peak) 110 dB
Sensitivity 84 dB SPL
Coverage Angle 180° conical
Connectivity
Speaker Input 1 × removable 2-pole speaker wire lead
Physical
Color Green
Mounting Bottom bracket point; concrete mounting collar included
Construction Material Polycarbonate and polypropylene (as listed in supplied specifications)
Ingress Protection IP55 (as stated in product features)
Operating Temperature 23°F to 122°F (-5°C to 50°C)
Dimensions 30.16 × 6.46 × 6.46 inches (76.61 × 16.41 × 16.41 cm)
Product Weight 10.4 lb (4.7 kg)
Environmental Resistance Supplied specifications list “No”; verify outdoor environmental rating with QSC before installation.
In-Ground Installation Accessory AD-DWL.BASE, sold separately

Specification note: The supplied information lists a 16-ohm bypass in the features and transformer section but also lists 8 ohms with the transformer bypassed. Confirm the correct impedance and wiring configuration against the official QSC documentation before installation.

Questions & Answers

The QSC AD-DWL.180 is a two-way outdoor landscape loudspeaker designed for outdoor audio installations in commercial and residential environments.

It has one 5.25-inch weather-treated woofer paired with a 1-inch aluminum dome tweeter.

The AD-DWL.180 is rated for 60W RMS power handling.

The listed frequency range is 55 Hz to 25 kHz at -10 dB.

The supplied specifications list a 180-degree conical coverage angle.

Yes. The supplied specifications list 70V and 100V transformer taps for distributed audio installations.

This model is listed in green to help it blend into landscape surroundings. The exterior is also described as paintable for further customization.

The supplied product information states that a concrete mounting collar, installation template, and mounting hardware are included.

The AD-DWL.BASE accessory is listed as the option for in-ground installation and is sold separately. Confirm installation requirements in the user manual.

The supplied specifications list 104 dB continuous SPL and 110 dB peak SPL.

Its key benefits include two-way audio, 180-degree coverage, 70V/100V transformer support, a landscape-friendly green finish, and included mounting hardware for concrete installation.

It is marketed as an outdoor landscape loudspeaker, and the product features state an IP55 rating. Because the supplied physical specifications conflict on environmental resistance, confirm the applicable outdoor installation limits with QSC before use.

The supplied specifications list one removable two-pole speaker wire lead. Verify wiring and impedance requirements in the official manual before connecting an amplifier.

The supplied specifications list dimensions of 30.16 × 6.46 × 6.46 inches and a product weight of 10.4 lb (4.7 kg).

Open the Manuals tab on this product page and select the QSC AD-DWL.180 / AD-DWL.360 User Manual PDF.

Warranty Information

For warranty coverage and service details for the QSC AD-DWL.180 AcousticDesign Series Outdoor Landscape Loudspeaker, contact HDTV Supply or consult QSC's official warranty terms. Please confirm the warranty that applies to this specific model before purchase or service.

For assistance, call 833-WOLFPACK.
