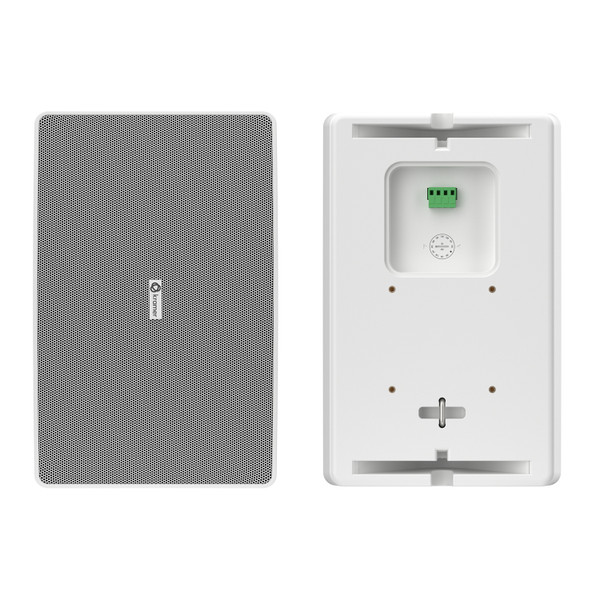

This Kramer WM-8P-W 8 Inch Two-way Wall Mounted Passive Speaker (White) deliver exceptional sound performance for commercial indoor applications. The WM−8P is a high−end 8” wall mounted passive speaker featuring exceptional sound, optimized for conferencing and background music. The speaker supports both 8?? low impedance as well as several 70V/100V high impedance modes. The speaker is supplied with Kramer’s EasyMount mounting bracket for horizontal and vertical installations as well as for installation in corners, in addition the speaker has standard 75mm VESA mount threads for additional installation options.
Kramer WM-8P-W 8 Inch Two-way Wall Mounted Passive Speaker (White) Features:
- Exceptional sound performance
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 60W continuous / 80W peak
- Sensitivity (1W@1m, free field): 90dB SPL
- Maximum SPL (@1m): Continuous 108dB SPL / Peak 109dB SPL
- UL1480A certified
- Industrial design: hidden wall–mount bracket for horizontal, vertical and cornet installation, standard 75mm VESA mount threads, removable logo, available in black & white colors
- Eco–friendly mono–material packaging
Why not buy this Kramer WM-8P-W 8 Inch Two-way Wall Mounted Passive Speaker (White) from HDTV Supply today?
Kramer WM-8P-W 8 Inch Two-way Wall Mounted Passive Speaker (White) Specifications:
- Driver
- LF Driver: 200 mm (8”) with polypropylene cone and rubber surround
- HF Driver: 25 mm (1”) liquid cooled soft–dome tweeter
- Frequency Characteristics
- Frequency Range (-10dB): 60Hz–20kHz
- Frequency Response (±3dB): 79Hz–20kHz
- Dispersion Angle: 124° (1 kHz to 4 kHz)
- Power Ratings
- @ 8?? Low Impedance: 60W continuous / 80W peak
- @ 100V High Impedance: 60W / 30W / 15W
- @ 70V High Impedance: 60W / 30W / 15W / 7.5W
- Sound Pressure Level (SPL)
- Sensitivity (1W@1m, free field): 90dB SPL
- Maximum SPL: Continuous: 108dB SPL / Peak: 109dB SPL
- Installation
- Type: Surface mounted vertical, horizontal or in corners
- Mounting: EasyMount bracket included, standard 75mm VESA mount threads
- Connectors: 4–pin pluggable Euroblock connector, 28–12AWG
- Weight per single speaker (including mounting bracket): 5.1kg (11.3lbs)
- Dimensions
- Without Bracket: 250mm x 222mm x 390mm (9.9” x 8.8” x 15.4”)
- With Bracket: 250mm x 306mm x 390mm (9.9” x 12.1” x 15.4”)
- Shipping Dimensions (single unit): 422mm x 332mm x 480mm (16.6" x 13.1" x 18.9")
- Shipping Dimensions (2 units in a Master box): 670mm x 430mm x 498mm (26.4" x 17" x 19.6")
- Shipping
- Shipping Weight (single unit): 7kg (15.5lbs)
- Shipping Weight (2 units in a Master box): 15kg (33lbs)
- Packaging: Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling
- Material
- Grill: Powder Coated Steel, removable logo
- Baffle: V–0 Flame Retardant
- Bracket: Aluminium
- Environmental
- Operating Temperature: –5° to +50°C (23° to 122°F)
- Storage Temperature: –10° to +55°C (14° to 131°F)
- Humidity: 30% to 85%, RHL non–condensing
- Regulatory
- UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces
- Environmental: RoHS, REACH, WEEE
Why not buy this Kramer WM-8P-W 8 Inch Two-way Wall Mounted Passive Speaker (White) from HDTV Supply today?
Kramer WM-8P Quick Start Guide
