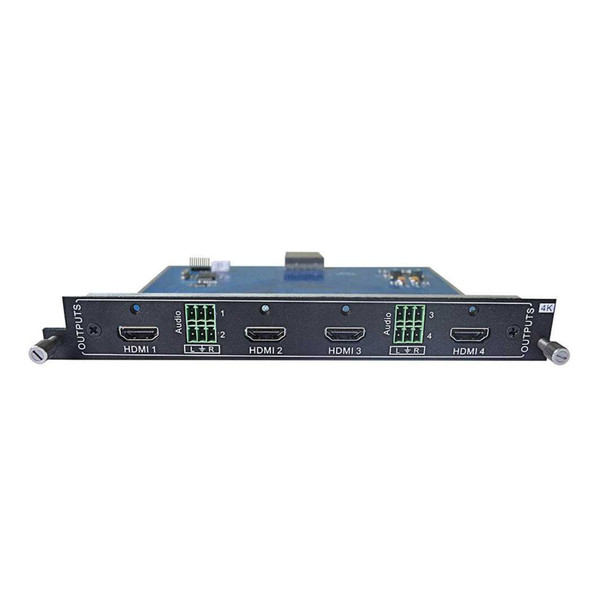

KanexPro 4-Output HDMI card with 4K for Modular Matrix Switcher
This KanexPro MOD-OUT-HDTV-4K 4-Output HDMI card with 4K for Modular Matrix Switcher is a 4K compliant, 4-Output card with analog audio de-embedder designed to work with the outputs of the HDMMX Modular matrix switchers. HDMI outputs provide UHD resolutions including 4K, 3D and up to 48-bit Deep Color at 1080p/60. The output card has the ability to de-embed analog audio from the HDMI and external audio can be supplied using the phoenix terminal blocks.
The output card also features advanced EDID management that ensures seamless video and audio for maximum interoperability with a wide range of sources.
Applications
Ideal for corporate facilities, government applications, churches, schools, conference centers, and any other application requiring HDMI connectivity
HDTV Supply is proud to be a Kanex Pro Authorized Reseller and provide a 3-YEAR WARRANTY at no cost to you. HDTV Supply also will Price Match if you find a lower price from an Authorized Kanex Pro Reseller conforming to the specs on this product page. All Kanex Pro products come with insured FREE SHIPPING together with Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support.
KanexPro 4-Output HDMI card with 4K for Modular Matrix Switcher Features:
4-Output HDMI card
Provisions 4K UHD resolutions
Supported resolutions: 4Kx2K, 1920x1200, 1080p & 3D
Stereo analog audio de-embedding on each output
High bandwidth up to 10.2 Gbps
Built-in HDCP internal management
Built-in EDID & DDC management
Up to 48-bit Deep Color & x.v color support
Supports 7.1 Dolby Digital,True HD, DTS-HD
Plug & play, easily integrates to the HDMMX series
Why not buy this KanexPro 4-Output HDMI card with 4K for Modular Matrix Switcher today?
Specs
KanexPro 4-Output HDMI card with 4K for Modular Matrix Switcher Specifications:
I/O Connections:
HDMI Output Four (4) HDMI Type A Receptacle Connector
Analog Audio out - Four (4) 3 pole Phoenix Connectors
Audio / Video:
Maximum Video Compatibility
Deep Color 48/36/30/24 Bit at 1080p, 3D
Video Compliance HDMI and HDCP (Selectable)
HDMI Audio Compatibility: Up to PCM 8 channel
Dolby Digital TrueHD, and DTS-HD Master Audio
Analog to Digital Conversion Audio Format: PCM 2 Channel 48kHz
Analog Audio:
Performance per Channel Unbalanced Stereo Audio, -10 dBV nominal
Pinout (Left to Right) Left (+), Ground, Right (+)
Input Impedance >10kO
Frequency Response 20 Hz to 20 kHz, ±0.5 dB
THD + Noise < 0.002% from 20 Hz to 20 kHz
HDMI Parameters:
Maximum Distance 5 m (pre-made cable)
Bandwidth 340 MHz (10.2 Gbps)
Gain 0 dB
Resolution Range Up to 4K & 1920x1200
Crosstalk < -50 dB at 5 KHz
Input Level TMDS 2.9V/3.3V
Chassis & Environmental Construction:
Plug-in card with keyed black metal plate
Shipping Weight 0.45 kg (1 lbs.)
Operating Temperature 0° to +40° C (+32° to +104° F)
Operating Humidity 20% to 90%, Non-condensing
Storage Temperature -10° to +60° C (+14° to +140° F)
HDTV Supply includes a 3 Year Limited Warranty on all Kanex Pro products. The warranty states that (a) its products (the will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the Product will be free from defects in materials & workmanship under normal use & service for a period of 3 years. In order to get a warranty replacement for a defective item, HDTV Supplys and Kanex Pros Support Team will verify the product is eligible for warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested and all components included.
HDTV Supply also sells a 5 Year Extended U.S. Warranty for this Long-Runner HDMI 100M Extender. Please go to Extended Warranties or see the above Options to purchase it.
