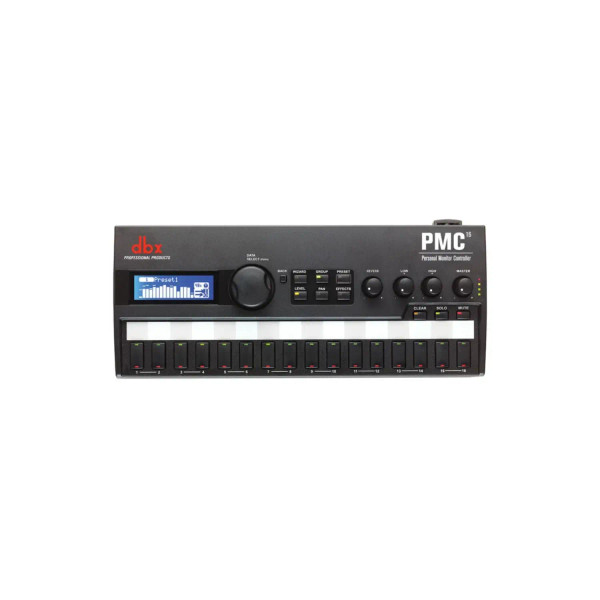

This DBX DBXPMCM-04 16-Channel Personal Monitor Controller by HARMAN International which allows the user to create a custom mix from 16 channels of digital audio, specifically from the dbx TR1616 or any other BLU link compatible device. It allows for monitoring with headphones, in-ear monitors, powered monitors, or traditional wedge monitors. Multiple PMC16s can be daisy chained using CAT5e cable allowing each user to receive 16 channels of high-end digital audio and create their own personalized mix to suit their monitoring needs.
The PMC16 offers full control of levels, panning, effect send levels, muting, and soloing of each channel, and the onboard Lexicon reverb brings the sound to life. It boasts an output processing section that includes stereo width control, wedge monitor compensation EQ, high and low master EQ, master level control, and dbx limiting. With a Setup Wizard for ease of configuration, full 16 channel level metering, channel grouping, 16 preset locations for future recall of configurations and mixes, and an intuitive yet powerful user interface, PMC16 gives you the power to dial in your mix exactly as you want it, in real time.
DBX DBXPMCM-04 16-Channel Personal Monitor Controller Features:
- 16-Channel remote personal monitor control
- Wizard Set-up and configuration
- Courtesy Lexicon Reverb w/type and wet/dry control
- dbx PeakStop Limiting
- 16 Presets locations
- All inputs and outputs included
- USB - For firmware update
- LCD Screen
- Works on standard BLU link Bus
- Sturdy mic-stand mount built-in
- Works as 48 kHz or 96 kHz Switchable D/A Conversion
- Up to 60 units can be chained together with no loss of controller fidelity
Why not buy this DBX DBXPMCM-04 16-Channel Personal Monitor Controller from HDTV Supply today?
DBX DBXPMCM-04 16-Channel Personal Monitor Controller Specifications:
- Frequency Response: +0/-0.2 dB 20 Hz – 20 kHz (Measured at 0 dBu output level)
- Dynamic Range:
- 108 dB unweighted 22 Hz – 22 kHz bandwidth
- 112 dB A-weighted
- THD+N: < .005% 20 Hz – 20 kHz (Measured at 0 dBu output level)
- Crosstalk: < 97 dB 20 Hz – 20 kHz
- BLU link Digital Audio Bus
- Bit-Depth: 24-bit
- Sample Rate: 48 kHz or 96 kHz
- Connectors: 2 x RJ45 Ethernet connectors
- Maximum Cable Length: 100 m/300 ft between devices (Category 5e cable)
- Maximum Number of Nodes: 60
- Latency Per Node: 4/Fs [0.08 ms @ 48 kHz, 0.04 ms @ 96 kHz]
- Analog Outputs (XLR & 1/4")
- Maximum Output Level: 20 dBu
- Output Impedance: 40 Ω
- Headphone Outputs (1/8" & 1/4")
- Power/Impedance: 900 mW per channel at 50 Ω (1/8" and 1/4" jacks are in parallel)
- Power
- Adapter: PS0920DC-01 (100-240 V AC, 50/60 Hz)
- Power Consumption: 18 W
- Power Requirements: 9 V DC 2.0 A
- Weight /Dimensions
- Product Weight: 2.26 lb (1.03 kg)
- Power Supply Weight: 0.31 lb (0.14 kg)
- Dimensions (H x W x D): 2.125" x 11.3125" x 4.8125" (5.4cm x 28.7cm x 12.2cm)
