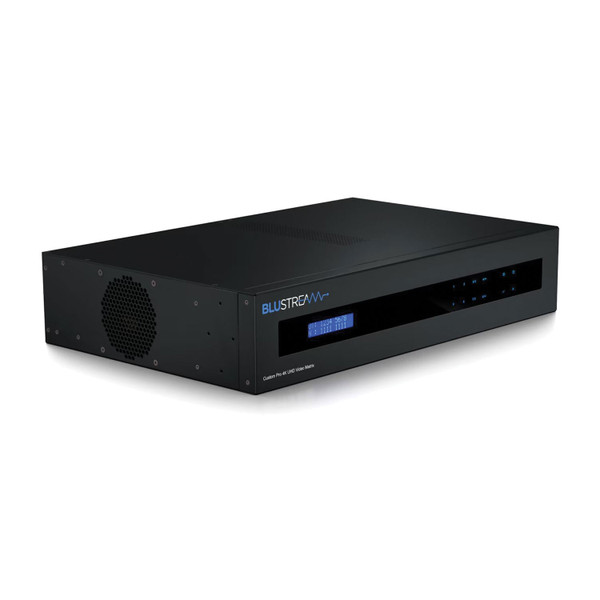

This Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix - 70m offers unprecedented 4K HDR performance for the custom installation market.
The PRO48HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K with HDR up to 40m)
Independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
The Matrix also provides advanced features including audio breakout and a web browser interface module for control and configuration of the matrix.
Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix - 70m Features:
- HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Features 4 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
- 1080p 60Hz (for screens that do not support 4K)
- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
- Supports 4K HDR
- Extends HDMI 1080p video up to 70m
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
- Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
- Analogue audio input can be embedded onto any HDMI input
- Web interface module for control and configuration of Matrix
- Supports bi-directional IR
- Supplied with Blustream IR receivers and emitters
- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
- 3rd Party drivers available for major control brands
- 2U Design for 19" rack mount integration - Mounting kit included
- Advanced EDID management
- HDCP 2.2 compliant
- To be used with the HEX70CS-RX receivers
Why not buy this Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix - 70m from HDTV Supply today?
Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix - 70m Specifications:
- Video Input Connectors: 4 x HDMI Type A, 19-pin, female
- Video Output Connectors: 8 x HDBaseT™ RJ45 connector
- Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
- TCP/IP Control: RJ45, female
- Ethernet / Network: RJ45, female
- IR Input Ports: 9 x 3.5mm stereo jack
- RS-232 Serial Port: DB-9, female
- Rack Mountable: 2U rack height, rack ears included
- Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
- Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
- Shipping Weight: 5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 24V/8A DC
Why not buy this Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix - 70m from HDTV Supply today?
Why not buy this Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT CSC Matrix - 70m from HDTV Supply today?
Q: What is the Blustream PRO48HBT70CS Custom Pro 4x8 HDBaseT Matrix?
A: The Blustream PRO48HBT70CS is a 4x8 HDBaseT matrix that distributes four HDMI sources to eight displays over long distances using HDBaseT technology.
Q: What video resolution does this matrix support?
A: It supports up to 4K UHD resolution with advanced color processing, ensuring high-quality video output.
Q: What is the maximum transmission distance?
A: It supports signal transmission up to 70 meters over standard CAT cable using HDBaseT technology.
Q: Can different sources be displayed on each screen?
A: Yes, each of the eight outputs can independently display any of the four input sources.
Q: What is CSC in this matrix?
A: CSC (Color Space Conversion) ensures compatibility between different display formats by converting video signals as needed.
Q: Does it support audio distribution?
A: Yes, it supports audio transmission along with video over HDBaseT for complete AV distribution.
Q: What control options are available?
A: It supports control via front panel, IR, RS-232, and IP control for seamless system integration.
Q: What applications is this matrix suitable for?
A: It is ideal for commercial AV installations such as hotels, conference centers, digital signage, and large residential setups.
Q: Is installation and setup easy?
A: Yes, it is designed for easy installation using standard CAT cabling and integrates well with existing AV systems.
