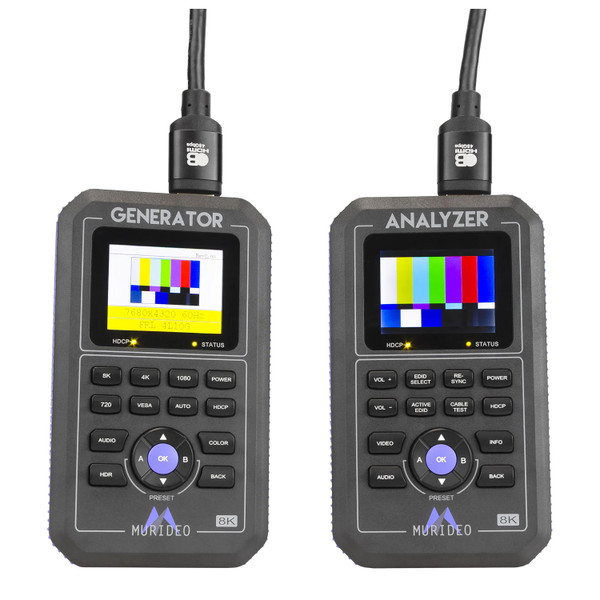

This AVPro Edge MU-FXHD-KIT-8K 8K Fox & Hound Testing and Troubleshooting Kit was developed to be a definitive, all-inclusive, generator and analyzer kit for use by integrators worldwide to determine why audio-video signals fail to reach intended endpoints. NextGen-ready with 40Gbps bandwidth capabilities, each unit hosts a unique set of test tools for thorough system signal flow generation and analysis.
It is not uncommon for technology categories to vary within an installation ecosystem, ranging from 1080p video walls, 4K projectors, up to 8K OLED displays where critical video evaluations are assessed.
With performance that belies its compact size and look-twice affordability, the inimitable 8K Fox & Hound kit is an easy to use troubleshooting solution that will quickly offset its level of investment with labor hour savings.
Never again experience a feeling of hopelessness on-site when a relentless regimen of trial and error fails to resolve an inconsequentially simple setback.
The Murideo 8K Fox & Hound kit quickly tracks the origin of any conceivable in-field issue and short of device failure, leads you on the path to resolution. Simply put: If not in your tool kit, the 8K Fox & Hound should be on your wish list.
The 8K Fox & Hound On The Hunt: Substitute the generator for a source device while also connecting the analyzer to the signal path leading into the display. The units will send and collect data that travels through system infrastructure.
The Fox & Hound generator is capable of sending a pattern duplicating source resolution from 720p up to 8K. If the endpoint fails to display the sent signal, move the analyzer back through the device chain sequentially, until the chokepoint is discovered.
With guesswork eliminated, time spent is specifically devoted to the solution, with verification in minutes.
It’s an old adage but wholly applicable: You can’t afford to be without an 8K Fox & Hound.
AVPro Edge MU-FXHD-KIT-8K 8K Fox & Hound Testing and Troubleshooting Kit Features:
- Generator:
- HDMI 2.1a (1.4, 2.0b compatible)
- Hot Plug Detect and HDCP indication LEDs
- Selectable HDCP helps to determine if source, repeaters and display will
- successfully “handshake”
- EDID management functionality
- 40Gbps maximum video bandwidth
- 720/60p up to 8K/60 4:2:0, 10-bit
- VESA 640x480/60 up to 1680x1050/60
- 4K 10, 12, 16-bit support
- HDR injector with metadata management
- Audio confidence testing, 2-8 channels
- Optimized ergonomics with 2” LCD color display
- Portable / battery operable
- 7.4v Lithium-ion 2600mAh internal rechargeable battery
- Analyzer:
- HDMI 2.1a (1.4, 2.0b compatible)
- HDCP testing
- Analysis of any HDMI signal up to 40Gbps
- Cable test copper-based HDMI cables up to 40Gbps
- Visually confirm Active Optical Cables
- View content up to 40Gbps
- 40Gbps maximum bandwidth
- EDID analysis including read or write functions
- Analyze HDR content with metadata
- Audio confidence testing, 2-8 channels
- Optimized ergonomics with 2” LCD color display
- Portable / battery operable
- 7.4v Lithium-ion 2600mAh internal rechargeable battery
Why not buy this AVPro Edge MU-FXHD-KIT-8K 8K Fox & Hound Testing and Troubleshooting Kit from HDTV Supply today?
AVPro Edge MU-FXHD-KIT-8K 8K Fox & Hound Testing and Troubleshooting Kit Specifications:
| Video: | |
| HDMI Version | HDMI 2.1 (FRL5 40Gbps) |
| HDCP Version | Up to HDCP 2.3 |
| HDCP ON/OFF | Yes |
| Maximum Clock Rate | 600 Mcsc (594 MHz) |
| Maximum Throughput Per Channel | 10.0 Gbps (40 Gbps Total) |
| Resolution Timings | 8k: 24Hz, 25Hz, 30Hz, 50Hz, and 60Hz 4k: 24Hz, 30Hz, and 60Hz 1080 (HD): 24Hz, 30Hz,50Hz and 60Hz 720: 50Hz and 60Hz vesa: 60hZ AUTO (Auto read/output based on EDID) |
| Video Encoding | RGB, YCbCr |
| Video Sampling Models | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Color Bit Depth | 8, 10, 12, and AUTO EDID Read |
| Audio: | |
| Audio Channels | Up to 8 (7.1) |
| Audio Output | 2 CH LPCM and 8CH LPCM |
| VU Meter Channels | Up to 8 (7.1) |
| Ports: | |
| HDMI | Type A |
| Firmware | Micro USB |
| Environmental: | |
| Operating | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power: | |
| Power (Single Unit) | 7.4V 2600mAh Internal Battery or Wall Adapter |
| Power Consumption (Total for single unit) | 7.5 watts max |
| Power Supply (X2) | Input: AC 100-240V ~ 50/60Hz Output: DC 12V 2A |
| Dimensions: | |
| Dimensions (Single Unit Only - Height/Depth/Width) | mm: 30.25 X 78.4 X 135 inch: 1.19 X 3.09 X 1.19 |
| Dimensions (Case - Height/Depth/Width) | mm: 127 x 279.4 x 333.5 inch: 5 x 11 x 13.13 |
| Weight (Single Unit) | 0.58 LBS/0.26 KG |
| Weight (Case and accessories) | 6 LBS/2.7 KG |
| *Specifications subject to change without notice. Mass & dimensions are approximate | |
