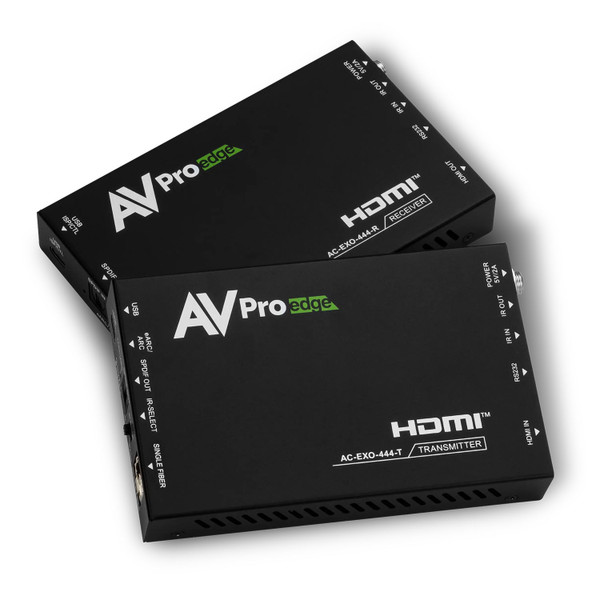

This AVPro Edge AC-EXO-444-KIT 2-Km 18Gbps Fiber Optic Extender Kit extends 18 Gbps HDMI 4K/60 fps content, including HDR, HDR10+, HLG, and Dolby Vision (@ 24 fps or 30 fps) to distances as great as 1.25 miles (2 kilometers) using single-mode OS2 fiber optic cabling.
AVPro Edge’s Invisible Compression Technology (ICT) preserves metadata during transmission to deliver a visually lossless 4K High Dynamic Range image free from banding artifacts and color shift.
Fiber removes any possibility of EMI/RFI interference that plagues Category cabling. Pixel-level details are preserved, making the AC-EXO-444-KIT ideal for Control Rooms, Data Centers, Surveillance facilities, and all noise-prone hostile commercial/industrial installations. Expansive residential projects also benefit from the distance boost that challenges Category cable-based extension devices.
AVPro Edge AC-EXO-444-KIT 2-Km 18Gbps Fiber Optic Extender Kit Features:
- Extend content up to 4K/60 fps: Distance is no longer an obstacle to transmitting content, including signals featuring high dynamic range metadata. The AC-EXO-444-KIT spans the expanse of nearly any project demand. Readily available 10G SFP+ interface modules provide extension options if additional distance is required.
- Downscaling Capable: Precision downscaling circuitry is incorporated into the AC-EXO-444-KIT transmitter to scale 4K, including HDR to 1080p, where a legacy display device remains in use. System resolution does not need to conform to the lowest denominator.
- EDID Management: Dynamic EDID management, including EDID Copy, preserves system interoperability.
- Control Signal Transport: Three-way bidirectional IR passthrough and RS-232 throughput provide control capabilities to/from devices tethered to the AC-EXO-444-KIT. I-PASS accepts direct control system commands via a mono 3.5 mm cable.
- ARC Capable: Audio Return Channel enables HDMI ARC pass-through audio from the receiver to the transmitter. NOTE: No downmixing occurs; original signals up to Dolby Digital+ are passed through via TOSLINK. Dolby Atmos is passed over HDMI ARC.
- Onboard Troubleshooting Aids: LED chassis indicators on the RX and TX provide visual status confirmation for power and HDMI signal presence. The RX unit generates HD and UHD test patterns via button press. The TX unit is capable of test pattern generation; however, this is available only via the API command line.
Why not buy this AVPro Edge AC-EXO-444-KIT 2-Km 18Gbps Fiber Optic Extender Kit from HDTV Supply today?
AVPro Edge AC-EXO-444-KIT 2-Km 18Gbps Fiber Optic Extender Kit Specifications:
| Video | |
| Video Resolutions | Up to 4K/60 Hz 4:4:4 |
| HDR Formats | HDR10, HDR10+, Dolby Vision, HLG |
| Color Space | YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Bit Depth | Up to 16-bit (1080p), Up to 12-bit (4K) |
| Down Scaling | 4K to 1080p |
| Audio | |
| Audio Formats Supported (HDMI) | LPCM up to 7.1-Ch @ 192 kHz 24-Bit, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC-4, DTS-Digital Surround, DTS-ES Discrete, DTS-HD High Res Audio, DTS-HD Master Audio, DTS:X |
| Audio Formats Supported Extracted (TOSLINK, TX Only) |
LPCM 2.0 Ch, Dolby Digital, DTS 5.1, Dolby Digital Plus |
| ARC/eARC | |
| Formats Supported HDMI ARC/eARC Out TX | LPCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Atmos |
| Formats Supported Toslink Out TX | LPCM 2.0 Ch, Dolby Digital, DTS 5.1, Dolby Digital Plus |
| Fiber | |
| Type | Single-Mode OS2 |
| Connector | Simplex LC (Lucent Connector) |
| Recommended Fiber | OS2 Cleerline SSF™ Single-Mode Fiber |
| Distance | |
| Single-Mode (OS2) | Up to 2 km |
| HDMI In/Out (4K/60 Hz 4:4:4) | Up to 50 ft. (using Bullet Train HDMI) |
| HDMI In/Out (w/ AOC Cable) (4K/60 Hz 4:4:4) | Up to 130 ft. (using Bullet Train AOC) |
| Other | |
| Bandwidth | 18 Gbps |
| HDCP | HDCP 2.3 and earlier |
| Ports | |
| HDMI (TX & RX) | HDMI Type A 19-pin, female |
| Audio (Extracted Digital) (TX Only) | TOSLINK |
| IR TX (TX & RX) | 3.5 mm Mono (2-Conductor) |
| IR RX (TX & RX) | 3.5 mm Stereo (3-Conductor) |
| RS-232 (TX & RX) | 3-Pin Euroblock |
| ISP/CTL | USB-C |
| Power In (TX & RX) | Barrel Connector |
| Environmental | |
| Operating Temperature | 23° to 125° F (-5° to 51° C) |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Humidity Range | 5% to 90% RH (No Condensation) |
| Power | |
| Power Consumption (Total) | 6 W Maximum |
| Power Supply | Input: 100-240 VAC ~ 50/60 Hz Output: 48 VDC, 0.5 A |
| Physical / Dimensions | |
| Mounting | Mounting brackets (screws included) |
| Dimensions (Unit Length/Width/Height) | mm: 82.55 x 130.175 x 20.638 inches: 3.25 x 5.125 x .8125 |
| Dimensions (Packaged Length/Width/Height) | mm: 136.53 x 192.1 x 84.14 inches: 5.4 x 7.6 x 3.313 |
| Weight (Unit) | 0.6 lbs. (0.27 kg) |
| Weight (Packaged) | 3.8 lbs. (1.7 kg) |
| Regulatory | CE/FCC |
| Product Warranty | 10 Years |
| *Specifications subject to change without notice. Mass & dimensions are approximate | |
