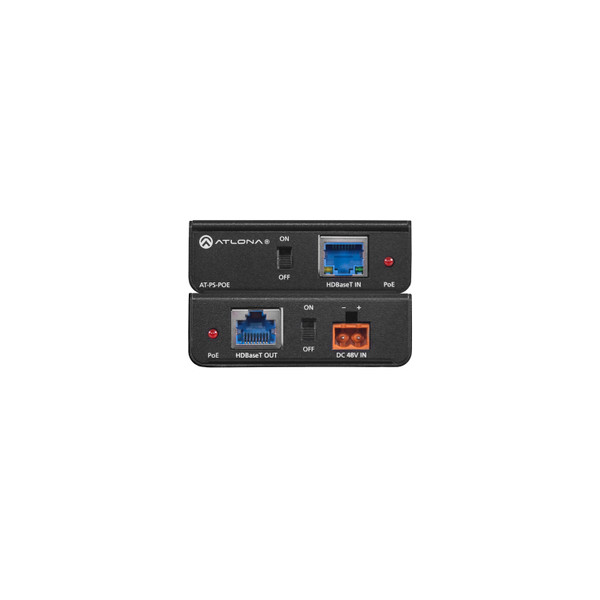

This Atlona AT-PS-POE HDBaseT Mid-Span Power Supply is a 48 VDC mid-span power injector designed to send remote power to HDBaseT products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows either or both HDBaseT endpoint devices to be remotely powered. The power supply features two power switches to selectively send power upstream or downstream. The PS-POE is housed in a compact enclosure and can be conveniently placed anywhere between the transmitter and receiver.
The PS-POE is ideal for Atlona HDBaseT endpoint devices used with HDBaseT-equipped products that do not provide power, including projectors, switchers, or third-party endpoints.
Atlona AT-PS-POE HDBaseT Mid-Span Power Supply Feature:
- Power supply for remotely powering devices on HDBaseT transmission lines
- Supplies 48 VDC to Atlona HDBaseT endpoint devices using IEEE 802.03af Power over Ethernet
- Industry standard powering scheme for HDBaseT products
- Mid-span power supply
- Routes power to upstream and downstream lines simultaneously
- Saves cost with a single power injector
- Power switches for incoming and outgoing line
- Power can be turned off in the direction of a non-remotely powered device
- Sends power only as needed
- Supports 4K/UHD signals
- 10.2 Gbps bandwidth power supply supports 4K/UHD resolutions, multi-channel audio formats, HDCP 2.2, and offers full 3D pass-through
- Ideal for ultra-high resolution signals
- Upgrade for legacy PoCc systems
- Allows UHD-EX Series receivers to be used with PRO2HD Series or HD-CAT Series systems
- Maintains ROI on legacy systems that need an additional signal extension or receiver upgrade / replacement
- Low-profile, discreet enclosure
- Easy insertion anywhere into HDBaseT transmission line including confined spaces
- Keeps devices out-of-sight when placed in public spaces
- Included accessories
- User guide, 48 VDC power supply, and mounting brackets
Why not buy this Atlona AT-PS-POE HDBaseT Mid-Span Power Supply from HDTV Supply today?
Atlona AT-PS-POE HDBaseT Mid-Span Power Supply Specifications:
- Buttons and Indicators
- Switches
- ON/OFF – 2 – Slide switch
- Indicators
- PoE – 1 – LED, red
- Switches
- Connectors
- HDBaseT IN 1 – RJ45
- HDBaseT OUT 1 – RJ45
- DC 48V IN 1 – Euroblock, 2-pin
- Environmental
- Operating Temperature +32 to +122 Fahrenheit | 0 to +50 Celsius
- Storage Temperature -4 to +140 Fahrenheit | -20 to +60 Celsius
- Operating Humidity (RH) 20% to 90%, non-condensing
- Power
- Consumption Max: 15.2 W
- External Power Supply
- Input: 100 – 240 V AC, 50/60 Hz
- Output: 48 V / 0.83 A DC
- Dimensions (H x W x D)
- Unit 0.96 x 2.89 x 2.77 Inches | 24 x 73 x 70 Millimeters
- Power Supply (AT-PS-54-L) 1.42 x 1.81 x 4.41 Inches | 36 x 46 x 112 Millimeters
- Weight
- Device 0.09 Pounds | 0.19 Kilograms
- Certification
- Device CE, FCC
- Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC
