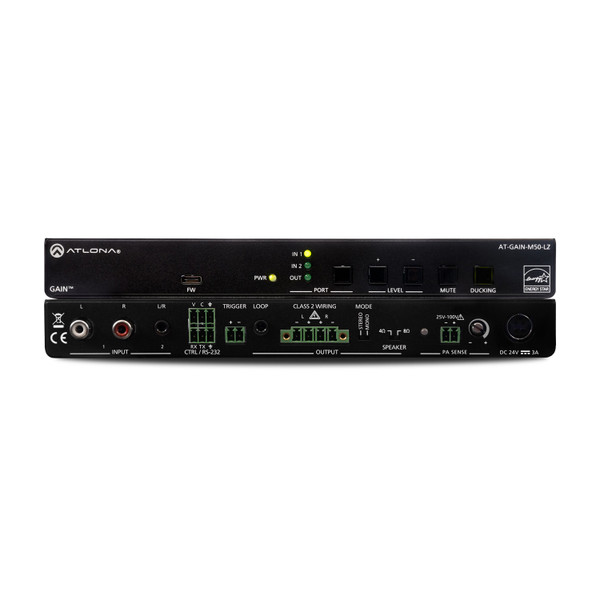

This Atlona AT-GAIN-M50-LZ 50 Watts - Mixer Amplifier is a two-input mixer amplifier designed for low impedance education and commercial applications. The amplifier delivers either two channels of 25 watts each into 4 or 8 ohms, or a single channel of 50 watts. The GAIN-M50-LZ features two unbalanced stereo audio inputs on RCA and 3.5 mm connections with independent level control for each. An unbalanced 3.5 mm output allows the mixed signal to be passed to an assistive listening system or separate amplifier
Atlona AT-GAIN-M50-LZ 50 Watts - Mixer Amplifier Feature:
- Two-Input mixer amplifier
- Unbalanced stereo line level inputs available on RCA or 3.5 mm connectors
- 2 x 25 watts @ 4/8 ohms amplifier (stereo) or 1 x 50 watts @ 4/8 ohms (bridged)
- Unbalanced line level output allows the mixed signal to be passed to an assistive listening system or separate amplifier
- Ducking lowers the level of input one when audio is present on input two
- Supports audio mute with trigger contact or PA sense so announcements can be heard clearly
- UL 2043 plenum rated for installation in air-handling spaces
- Energy Star® qualified
- Two standby modes available for reducing power consumption and energy costs when not in use
- Compact enclosure for mounting under a desk or table, on the wall behind a display, or in the ceiling
- RS-232 for configuration and control from Velocity or third-party automation systems
- User controls for level, mute, ducking, and PA sense
- Status LEDs for power, port, and PA sense
- Optional AT-GAIN-VOL volume control wallplate
- Includes captive screw connectors, screws, mounting brackets, rubber feet, and external universal power supply
Why not buy this Atlona AT-GAIN-M50-LZ 50 Watts - Mixer Amplifier from HDTV Supply today?
Atlona AT-GAIN-M50-LZ 50 Watts - Mixer Amplifier Specifications:
- Input Signal
- RCA: 3.162 Vrms unbalanced, < 0.1% THD
- 3.5 mm stereo jack: 1 Vrms unbalanced, < 0.1% THD
- Output Signal
- Nominal: 0.316 Vrms balanced, 20 Hz – 20 kHz, < 150 Ω
- Maximum: 3.162 Vrms balanced, 20 Hz – 20 kHz, < 150 Ω
- Amplifier
- Type: Class D
- Frequency Response: 20 Hz – 20 kHz, ±2 dB
- THD+N: < 0.1% @ 1kHz and < 0.3% @ 100 Hz - 16 kHz
- IMD (ITU-R): < 1%, 100 Hz - 15 kHz
- Crosstalk: -80 dB, 20 Hz – 20 kHz, +4 dBU, channel-to-channel
- RS-232
- Port: 2 x 3-pin captive screw
- Use: Unit and external device control and configuration
- Baud Rates: 9600, 19200, 38400, 57600, 115200
- Data Flow: Bidirectional
- Buttons and Indicators
- Buttons: PORT, LEVEL+ / LEVEL-, MUTE, DUCKING – 5 x momentary, tact-type
- Indicators: PWR, IN1, IN2, OUT – 4 x LED, green
- Connectors
- INPUT: 2 x RCA-type, female, unbalanced: 20 kΩ
- INPUT: 1 x 3.5 mm mini-stereo
- OUTPUT: 1 x 4-pin, 5.08 mm lock-down screw connector
- CTRL / RS-232: 2 x 3-pin captive screw
- TRIGGER: 1 x 2-pin captive screw
- LOOP: 1 x 3.5 mm mini stereo
- PA SENSE 25V – 100V: 1 x 2-pin captive screw
- HUB: 1 x USB type C, female
- DC 24V / 3A: 1 x 4-pin DIN
- Environmental
- Operating Temperature: +32 to +122 °F / 0 to +50 °C
- Storage Temperature: -4 to +140 °F / -20 to +60 °C
- Operating Humidity (RH): 20% to 90%, non-condensing
- Power
- Standby Mode: Powers down after 5 – 25 minutes (adjustable) of no signal; complies with ErP power consumption limits of < 0.5W in standby mode
- Idle Consumption: 3.6 W
- Maximum Power: 64.3 W
- BTU/h: 12.3 (idle); 67.9 (maximum power)
- Supply: 100 – 240 V AC, 50/60 Hz
- Output: 24 V / 3 A DC
- Dimensions (H x W x D)
- Unit: 1.02 x 8.62 x 5.98 inches / 26 x 219 x 152 millimeters
- Power Supply (AT-PS-243-D4): 1.42 x 1.81 x 4.41 inches / 36 x 46 x 112 millimeters
- Weight
- Device: 1.93 pounds / 0.88 kilograms
- Certification
- Device: CE, RoHS, FCC
- Power Supply: CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC
- Compliance
- NDAA-889: Yes
- TAA: Yes
