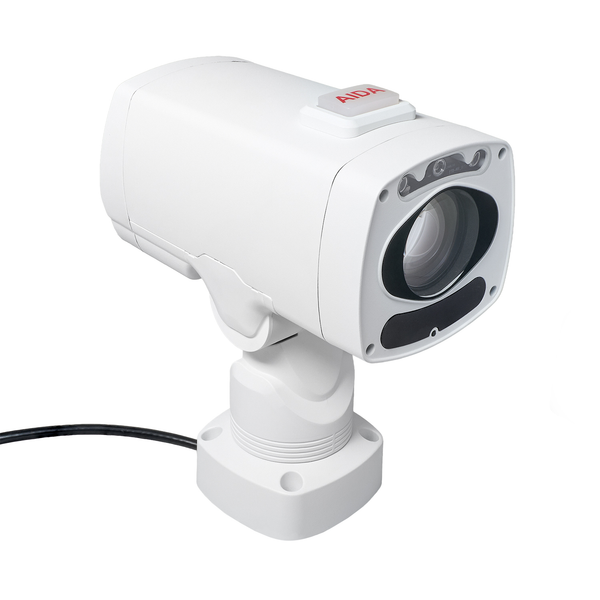

AIDA Imaging PTZ4KWP-NDI3-X30 4K UHD Output (60p) Weatherproof PTZ Camera

AIDA Imaging

$3,295.00
Part Number:
AIDA-Imaging-PTZ4KWP-NDI3-X30
UPC:
783970765239
Condition:
New
Availability:
Coming Soon
1:
IP66 Rated Shell
2:
AIDA's Weatherproof PTZ
3:
Exposure, WB and More
4:
White LED / IR Filter
11:
2-Year AIDA Imaging Warranty
12:
Ships with the Latest Firmware
5:
Save 5% w/Check or Wire Transfer
6:
International Shipping - Call
15:
Free USA Insured Shipping

This AIDA Imaging PTZ4KWP-NDI3-X30 4K UHD Output (60p) Weatherproof PTZ Camera, bought from HDTV Supply, is AIDA’s first weatherproof PTZ camera, designed to deliver reliable 4K performance in environments where conditions are anything but predictable.

With full IP output support including NDI HX2/3, SRT, RTMP, and RTSP - alongside a rugged IP66-rated housing, this camera is built for outdoor deployment without compromise.

From long-range visibility to auxiliary environmental controls like heating and cooling, this camera is a complete solution for capturing clear, controlled video in the real world.

AS ALWAYS, HDTV SUPPLY OFFERS FREE SHIPPING, FREE RETURNS, FREE LIFETIME TECHNICAL SUPPORT, SHIPPING ON THE SAME DAY, GIVES YOU TRACKING NUMBERS, ALWAYS SHIPPED PRODUCTS WITH THE LATEST FIRMWARE, AND MORE.

READ MORE

AIDA Imaging PTZ4KWP-NDI3-X30 4K UHD Output (60p) Weatherproof PTZ Camera, bought from HDTV Supply Features:

  • Weatherproof IP66 Design: Built for outdoor environments, the rugged housing protects against dust, heavy rain, and challenging weather conditions for reliable deployment anywhere.
  • 4K UHD Output (60p): Capture sharp, detailed video with support for multiple broadcast and ProAV resolutions up to 2160p60.
  • Full-IP PoE++ PTZ Support: Stream via NDI HX2 / HX3, SRT, RTMP, and RTSP for flexible integration across new and existing modern IP and broadcast systems. Using PoE++, you can establish those satisfying 1 cable runs to power the camera!
  • UHD 30X Optical Zoom with Sony CMOS: Our powerful 30X UHD optical zoom can capture up to 120ft with detail! Paired with a Sony 1/1.8" CMOS, the dynamic duo is unparalleled when it comes to long-range clarity in low-light performance and depth.
  • On-Air Tally / Low Light Capture: With a On-Air Tally controlled by NDI commands, your talent knows exactly where to look during showtime. If thats not enough, during low-light scenarios the IR filter can be toggled, or white LED lights triggered to brighten the scene.

This AIDA Imaging PTZ4KWP-NDI3-X30 4K UHD Output (60p) Weatherproof PTZ Camera, bought from HDTV Supply product comes with free USA shipping, the latest firmware, a 2-year warranty, and 30-day returns. Why not buy this AIDA product from HDTV Supply today?

AIDA Imaging PTZ4KWP-NDI3-X30 4K UHD Output (60p) Weatherproof PTZ Camera, bought from HDTV Supply Specifications:

  • Video
    • Image Sensor Size: 1/1.8" Progressive CMOS
    • Effective Pixels: Horizontal: 1920, Vertical: 1080
    • Pixel Size: 2.0μm (H) x 2.0 μm (V)
    • Resolution: 1080p, 1080i, 720p
    • Resolution Rates
      • 2160 60p/59.94/50p/30p/29.97p/25p/24p
      • 1080 60p/59.94/50p/30p/29.97p/25p/24p
      • 1080 60i/59.94i/50i
      • 720 60p/59.94p/50p
    • Output: IP (NDI HX/SRT/RTMP/RTSP)
    • Color Space: 4:2:2 (YcbCr) 10bit
    • Min Illumination: 0.2Lux (day), 0.1Lux (night)
  • Pan-Tilt Motor
    • Pan Rotation Angle: +167° ~ -167° (334° range)
    • Tilt Rotation Angle: +49.5° ~ -59.5° (109° range)
    • Pan Rotation Speed: 0.5°/s ~ 60°/s (24 steps)
    • Tilt Rotation Speed: 0.2°/s ~ 34.2°/s (24 steps)
  • Optical / Audio
    • Lens: 30X UHD Optical Zoom
    • Lens F-Stop: F1.35~F4.6
    • Lens HFOV (angle): 60° Wide, 2° Tele
    • Audio Input: 3.5mm TRS Stereo Audio Input
    • Audio Embed: Over All IP Streams
    • Sample Rate: 16/24/32 Bits
  • Power / Dimensions
    • Control: I/O Cable, IR Remote Commander (included), WebUI (UDP/NDI)
    • Dimensions (home position): 10.1" x 5.92" x 12.1" / 25.5 cm x 12.5cm x 30.5cm
    • Dimensions (min clearance needed for full movement): 10.1" x 9.5" x 14.0" / 25.5 cm x 24.0 cm x 35.5 cm
    • Operation Temperature: °F ~ 104°F / 0°C ~ 40°C
    • Auxiliary Controls: Heating up to 104°F/40°C and Cooling Fan
    • Weight: 11 lbs / 4.8kg
    • Power: 12VDC (+9 - +15VDC) or PoE++ (IEEE 802.3bt)

This AIDA Imaging PTZ4KWP-NDI3-X30 4K UHD Output (60p) Weatherproof PTZ Camera, bought from HDTV Supply product comes with free USA shipping, the latest firmware, a 2-year warranty, and 30-day returns. Why not buy this AIDA product from HDTV Supply today?

What IP streaming protocols does this camera support?

A: It supports NDI HX2/HX3, SRT, RTMP, and RTSP over IP.

What color sampling and bit depth does the camera provide over IP?

A: It outputs 4:2:2 (YcbCr) at 10-bit color.

What zoom and image sensor does the PTZ use for long-range shots?

A: It uses a 30X UHD optical zoom paired with a 1/1.8" progressive CMOS image sensor.

What are the pan and tilt travel ranges and speed limits?

A: Pan travels ±167° for a 334° range and tilt travels +49.5° to -59.5° (109°); pan speed is 0.5°/s–60°/s and tilt speed is 0.2°/s–34.2°/s.

Can I send stereo audio into the camera and have it embedded in the IP streams?

A: Yes — there is a 3.5mm TRS stereo audio input and audio is embedded over all IP streams, with sample rates listed at 16/24/32 bits.

What protection and environmental controls does the camera provide for outdoor use?

A: The housing is IP66-rated for dust and heavy rain, and the unit includes auxiliary heating (up to 104°F/40°C) plus a cooling fan for environmental control.

Can I power this camera with a single Ethernet cable?

A: Yes — the camera supports PoE++ (IEEE 802.3bt), enabling single-cable power-and-network runs when your infrastructure provides PoE++.

Will this camera work in low-light conditions and can I toggle IR or white LEDs?

A: Yes — minimum illumination is listed at 0.2 Lux (day) and 0.1 Lux (night), and the IR filter can be toggled or white LED lights triggered for additional scene brightness.

How much physical clearance do I need for the camera to move through its full range?

A: Minimum clearance required for full movement is 10.1" x 9.5" x 14.0" (25.5 cm x 24.0 cm x 35.5 cm).

Does the camera provide an on-air tally indicator controlled over the network?

A: Yes — an On-Air Tally is available and is controlled by NDI commands.

Why not buy this AIDA Imaging PTZ4KWP-NDI3-X30 4K UHD Output (60p) Weatherproof PTZ Camera from HDTV Supply today?
