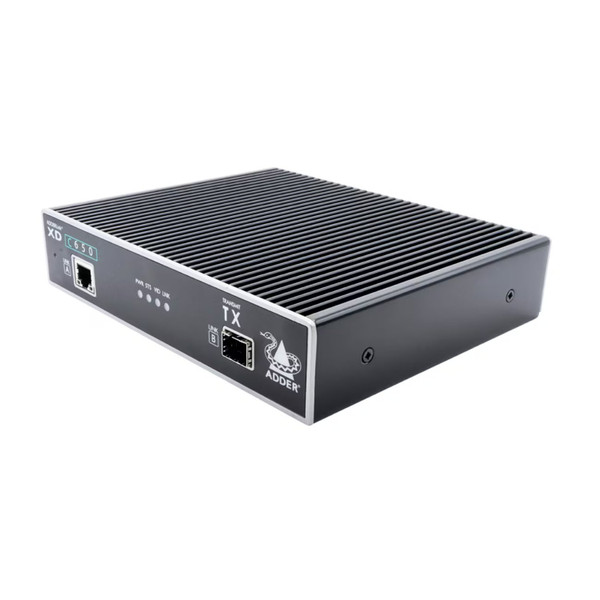

This AdderLink XD-C650P-DP-US High-Resolution Quad-Head KVM Extender that is designed to provide reliable and real-time access to critical computers while maintaining the same user desktop experience.
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance 4K KVM extension for superior functionality and flexibility.
AdderLink XD-C650P-DP-US High-Resolution Quad-Head KVM Extender Features:
- Quad-Head High-Definition Video: Supports quad-head 1920x1200@60Hz or single head 4096x2160@60Hz (DCI 4K60). Quad-head enabled over a single cable using DisplayPort 1.2 Multi-Stream Transport (MST) technology.
- Up to 4km Extension: Supports both copper and fiber interfaces. Provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link (Fiber SFP modules sold seperately).
- Emulated and Hi-Speed USB 2.0: USB 2.0 emulation ensures reliable connection of full and low speed HID devices (mouse or keyboard). Mass storage devices and isochronous devices, such as webcams and audio headsets can also be used through the transparent USB 2.0 Hi-Speed port.
- Plug and Play: Uses a low-latency point-to-point protocol over a single CATx or fiber cable that works as soon as it is connected. No network set-up, driver or software is required.
- Digital Audio over DisplayPort: Supports two channels of 24-bit, 192kHz sampled PCM audio over the DisplayPort connection.
- Analog Audio: Plug analog line in/out and headphones directly into the receiver. Audio is transmitted as bi-directional stereo 24-bit/96kHz using either an analog or USB connection to the host.
- Monitor Flexibility: EDID management allows the monitor capabilities to be passed back to the host computer for optimum compatability.
- Serial communications: RS232 can be passed between the units to a maximum rate of 115200 baud with RTS/CTS flow control.
Why not buy this AdderLink XD-C650P-DP-US High-Resolution Quad-Head KVM Extender from HDTV Supply today?
AdderLink XD-C650P-DP-US High-Resolution Quad-Head KVM Extender Specifications:
Transmitter
| Video Information (For 1 Screen) | |
|---|---|
| Maximum Resolution | 4096 x 2160 |
| Frame Rate | 60 |
| Colour Depth | 8 bpc |
| Video Information (For 2 Screens) | |
| Maximum Resolution | 2560 x 1600 |
| Frame Rate | 60 |
| Colour Depth | 8 bpc |
| Video Information (For 3 Screens) | |
| Maximum Resolution | 1920 x 1200 |
| Frame Rate | 60 |
| Colour Depth | 8 bpc |
| Video Information (For 4 Screens) | |
| Maximum Resolution | 1920 x 1200 |
| Frame Rate | 60 |
| Colour Depth | 8 bpc |
| Additional Video Information | |
| Additional Information | Supports HD60 Quad-Head or 4K60 Single-Head |
| Computer Connections | |
| USB B (True Emulation) | 1× 2.0 True Emulation (HID Only), Full Speed |
| USB B (Transparent) | 1× 2.0 Transparent, High Speed |
| Full Size DisplayPort | 1× 1.2 |
| Link Ports | |
| 8p8c (RJ45) | 1× |
| SFP+ | 1× |
| Serial Ports | |
| Serial Connection | 1× |
| Serial Standard | RS232 |
| Maximum Baud Rate | 115200 |
| Serial Additional Information | with RTS/CTS flow control |
| Serial Connection Type (console) | RJ12 (6p6c) |
| Audio Connections | |
| Audio Type | Analog/Digital |
| Channels | 2 |
| Audio In Ports | 1× 3.5mm jack |
| Audio Out Ports | 1× 3.5mm jack |
| Audio Direction | Bi-directional |
| Size (bit) | 24 |
| Speed (kHz) | 96 |
| Additional Information | Also supports 2 channels of 24-bit/192kHz PCM audio over the DisplayPort connection. |
| Network Support | |
| 10/100 Support | No |
| Power Source | |
| 12V 3-pin | 1× |
| Input Power Supply | PSU 18W |
| Power Additional Information | 100-240 VAC, 47/63Hz. 12 VDC 18W output from power supply unit |
| Physical Design | |
| Construction Material | Robust metal construction |
| Width | 186mm / 7.3in |
| Height | 39mm / 1.5in |
| Depth | 148mm / 5.80in |
| Weight | 1.29kg / 2.8lb |
| Front Panel Features | |
| Multi color status LEDs | 4× |
| Compatibility | |
| OS Compatibility | All known operating systems |
| Ordering Information | |
| Code | XD-C650P-DP-XX |
| Description | ADDERLink HD quad-head transparent USB2.0 extender |
Receiver
| Video Information (For 1 Screen) | |
|---|---|
| Maximum Resolution | 4096 x 2160 |
| Frame Rate | 60 |
| Colour Depth | 8 bpc |
| Video Information (For 2 Screens) | |
| Maximum Resolution | 2560 x 1600 |
| Frame Rate | 60 |
| Colour Depth | 8 bpc |
| Video Information (For 3 Screens) | |
| Maximum Resolution | 1920 x 1200 |
| Frame Rate | 60 |
| Colour Depth | 8 bpc |
| Video Information (For 4 Screens) | |
| Maximum Resolution | 1920 x 1200 |
| Frame Rate | 60 |
| Colour Depth | 8 bpc |
| Additional Video Information | |
| Additional Information | Supports HD60 Quad-Head or 4K60 Single-Head |
| Console Connections | |
| USB A (True Emulation) | 3× 2.0 True Emulation (HID Only), Full Speed |
| USB A (Transparent) | 1× 2.0 Transparent, Full Speed |
| Full Size DisplayPort | 2× 1.2 |
| Link Ports | |
| 8p8c (RJ45) | 1× |
| SFP+ | 1× |
| Serial Ports | |
| Serial Connection | 1× |
| Serial Standard | RS232 |
| Maximum Baud Rate | 115200 |
| Serial Additional Information | With RTS/CTS flow control |
| Serial Connection Type (console) | RJ12 (6p6c) |
| Audio Connections | |
| Audio Type | Analog/Digital |
| Channels | 2 |
| Audio In Ports | 1× 3.5mm jack |
| Audio Out Ports | 2× 3.5mm jack |
| Audio Direction | Bi-directional |
| Size (bit) | 24 |
| Speed (kHz) | 96 |
| Additional Information | Also supports 2 channels of 24-bit/192kHz PCM audio over the DisplayPort connection |
| Network Support | |
| 10/100 Support | No |
| Power Source | |
| 12V 3-pin | 1× |
| Input Power Supply | PSU 18W |
| Power Additional Information | 100-240 VAC, 47/63Hz. 12 VDC 18W output from power supply unit |
| Physical Design | |
| Construction Material | Robust metal construction |
| Width | 186mm / 7.3in |
| Height | 39mm / 1.5in |
| Depth | 148mm / 5.80in |
| Weight | 1.24kg / 2.7lb |
| Compatibility | |
| OS Compatibility | All known operating systems |
| Ordering Information | |
| Code | XD-C650P-DP-XX |
| Description | ADDERLink HD quad-head transparent USB2.0 extender |
Why not buy this AdderLink XD-C650P-DP-US High-Resolution Quad-Head KVM Extender from HDTV Supply today?
Adder XD-C650P-DP-US Datasheet
Adder XD-C650P-DP-US Datasheet (Transmitter)
Adder XD-C650P-DP-US Datasheet(Receiver)
Why not buy this AdderLink XD-C650P-DP-US High-Resolution Quad-Head KVM Extender from HDTV Supply today?
Q: What is the AdderLink XD C650P DP-US Quad Head KVM Extender?
A: The AdderLink XD C650P DP-US is a high-performance KVM extender designed to transmit keyboard, video, and mouse signals over long distances. It supports quad-head DisplayPort video, making it ideal for control rooms, command centers, and professional AV environments.
Q: What video resolution does this KVM extender support?
A: This KVM extender supports up to 2560 x 1600 resolution per display, ensuring clear image quality across all four screens.
Q: How many monitors can be connected?
A: It supports up to four monitors in a quad-head configuration.
Q: What is the maximum transmission distance?
A: The extender can transmit signals up to 100 meters (328 feet) over a CATx cable.
Q: Does it support USB devices?
A: Yes, it supports USB devices such as keyboards and mice.
Q: Is it suitable for professional environments?
A: Yes, it is designed for control rooms, broadcast setups, and other mission-critical applications.
Q: What cables are required?
A: Standard CAT5e, CAT6, or CAT7 cables are used.
Q: Does it support audio?
A: Yes, it supports audio along with video and USB signals.
Q: Is installation easy?
A: Yes, it offers simple plug-and-play installation.
