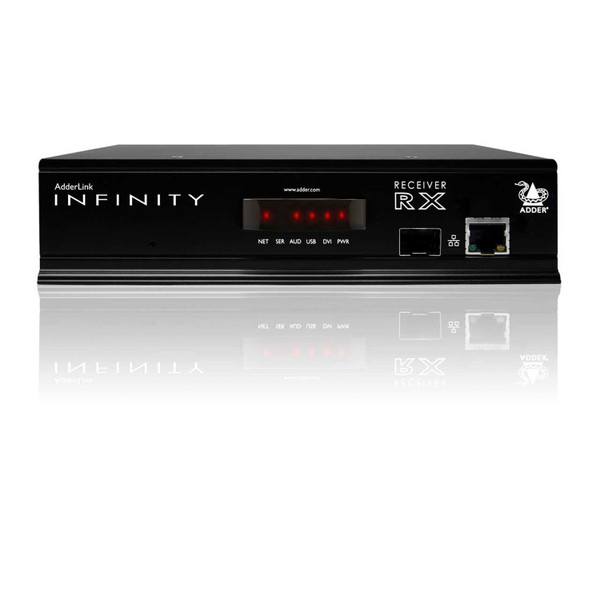

This AdderLink Infinity ALIF1002R-US USB2.0 KVM Extender Receiver is a high performance KVM (Keyboard, Video and Mouse) extender receiver that forms part of the ADDERLink™ INFINITY matrix solution.This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, whilst maintaining a Pixel-Perfect desktop experience.
Part of the ADDERLink™ INFINITY range the 1002 is configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 6.21 miles/10km. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (AIM).
Using a spatially-lossless encoding system, with 1:1 pixel mapping, ADDERLink™ INFINITY provides pixel-perfect and color accurate video with no artifacts. The digital video you receive is the same as the digital video leaving the remote computer.
Please note: The ALIF1002R receiver requires at least one ALIF1002T transmitter to operate.
AdderLink Infinity ALIF1002R-US USB2.0 KVM Extender Receiver Features:
- Plug and play
- 100m/300ft extension distance on single CATx; unlimited using standard IP network
- From 500m/1500ft up to 10km/6 miles over fiber
- Single link or single head configuration
- 1920x1200 @60Hz maximum resolution
- USB mass storage supported plus: keyboard, mouse tablet and touch
- Support for MacPro®
- Redundant network operation
Why not buy this AdderLink Infinity ALIF1002R-US USB2.0 KVM Extender Receiver from HDTV Supply today?
AdderLink Infinity ALIF1002R-US USB2.0 KVM Extender Receiver Specifications:
- Hardware Compatibility: All computers with DVI-D, USB, Audio, RS232 - requirement dependent.
- DVI-D - Digital Visual Interface (digital only): The system supports a Single Link DVI-D resolution to a maximum of 1920 x 1200 @ 60Hz.
- USB 2.0 with Class Control: Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).
- Digital Stereo Audio: The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.
- RS232: RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.
- Software Compatibility: All known operating systems.
- Computer Connections Transmitter (TX): 1 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.
- Peripheral Connections Receiver (RX): 1 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.
- Physical Design: 1U compact case, robust metal construction. 198mm/7.92" (w), 44mm/1.76" (h), 150mm/6.0" (d), 1.1kg/2.7lbs.
- Power: 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.
- Operating Temperature: 0 to 40°C / 32 to 104°F.
- Approvals: CE, FCC.
Why not buy this AdderLink Infinity ALIF1002R-US USB2.0 KVM Extender Receiver from HDTV Supply today?
