8x18 DVI Matrix Switcher with In & Out Scaling

WolfPack

$4,850.00
Part Number:
8x18MMDVI
UPC:
728370330861
Availability:
Usually ships in 5-7 business days
1:

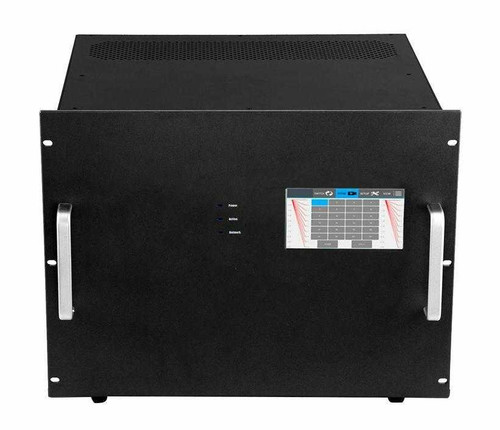

WolfPack 8x18 DVI Matrix Switcher with HDCP 1.4
2:
Scaling up & down on all input & output cards
3:
Control via 7 Color Touchscreen, iPad/Android App, Web GUI & RS232"
4:
Seamless switching speed of 100ms (0.1 sec)
5:
Includes DVI adapters that support HDMI, CVBS/Y-Pb-Pr & VGA Video
6:
Separate Embedded Audio In and De-embedded Audio Out
WolfPack DVI SwitchersHDTV Supply's WolfPack™ 8x18 DVI Matrix Switcher is a preconfigured DVI video and separate audio modular DVI matrix Switcher. The 18x18 chassis backplane allows any DVI input to be switched to any output, or any input to be routed to all outputs, or any combination. Since you are only using 8-DVI inputs and 18-DVI outputs with this 8x18 DVI Matrix Switcher you can add more DVI inputs and DVI outputs in the field.

24/7/365 OPERATION: The 8x18 DVI Matrix Switcher is made up of slide-in DVI cards so the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair. You can control the WolfPack™ 8x18 DVI Matrix Switcher via front buttons, WEB GUI control, or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android app.

The core of the 8x18 DVI Matrix Switcher consists of an 18x18 Modular Matrix chassis and its highly configurable backplane that supports 18 input cards and 18 output cards. The 8x18 DVI Matrix Switcher is HDCP 1.4 compliant.

Separate Embedded Audio In and De-embedded Audio Out: The DVI matrix allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the DVI input cards 3.5mm audio connector and then de-embedding the audio on the DVI output cards 3.5mm audio.

Universal Input and Output cards. The matrix is also supplied with universal adapters for each DVI input and DVI output that converts the DVI connector to HDMI, VGA, composite video and component video.

Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the manual scaling up/down. Each DVI card has a 8-pin DIP switch to select multiple resolution settings to conform to your DVI source devices and the DVI destination devices. See above FAQ.

Reasons that sets our WolfPack™ 8x18 DVI Matrix Switcher apart from others:

  1. DVI input and DVI output cards are DVI 1.1 & HDCP 1.4 compliant
  2. Separate Embedded Audio In and De-embedded Audio Out
  3. Seamless switching speed of 100ms (0.1 sec)
  4. Hardware Scaling via DIP Switches on both in and out cards (See FAQ)
  5. Control via 7" Color Touchscreen, an iPad, Android, Web GUI & RS232
  6. Optionally uses the best HDBaseT HDMI or DVI to CATx extenders with POC (Power Over Cable)
  7. 40 - Preset scenes that can be Saved and Recalled
  8. Closed Caption (CC) Pass-through
  9. No latency
  10. 2-Year WolfPackCare Advance Replace Warranty
  11. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  12. Other in & out cards available like VGA, HDMI, Fiber, SDI, CVBS, YPbPr and Audio
  13. Optional built-in Video wall Processor

WolfPack™ 8x18 DVI Matrix Switcher Configuration:

  • 1 - 18-card in and 18 card out card cage
  • 8 - 1-port DVI input cards = 8-DVI inputs
  • 18 - 1-port DVI output cards = 18-DVI outputs
  • 10 - Input slots for future expansion to 18-total inputs
The WolfPack 8x18 DVI Matrix Switch manages DVI signals for the inputs and outputs. This 8x18 DVI Matrix Switcher supports long haul transmissions, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 8x18 DVI Matrix Switcher also can support high-resolution DVI sources routed to DVI displays, monitors and projectors. The EDID can be selected between multiple modes or copied from the attached displays.

8x18 DVI Matrix Switcher Feature:

  • Chassis size: 18 input and 18 outputs cards
  • Input Cards Supported:
    • 8 - female DVI single port cards = 8 - DVI inputs
  • Output Cards:
    • 18 - female DVI single port cards = 18 - DVI outputs
  • Input DVI cable distance: Up to ~12 feet with an AWG24 DVI high speed cable
  • Input DVI cable distance: Up to ~35 feet with an AWG24 DVI high speed cable
  • Flexible card type design supporting 18 input cards and 18 output cards
  • 1080p/60 compatible
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel LCD display for status feedback
  • Front-panel push buttons for local switching
  • IP controlled (WEB GUI) via a built-in web server and LAN
  • RS-232 Serial interface for remote control
  • Supports 100ms fast switching, no black/ blue/ split screen while switching
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Hot-pluggable
  • Control via 7" Color Touchscreen, an iPad, Android, Web GUI & RS232
  • 2U Rack-mountable

Why not buy this 8x18 DVI Matrix Switcher with In & Out Scaling today?

Seamless Switching Speed of 100ms (0.1 sec): The 8x18 DVI Matrix Switcher allows switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The Modular DVI Matrix Switchers advanced processor allows it to process live signals simultaneously which means it can seamlessly & instantly switch (~100ms) between DVI inputs & DVI outputs. Most non-seamless matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.

Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.

WolfPack 8x18 DVI Matrix Router Specs:

  • Modular Configuration: 18 inputs/18 outputs card cage
  • Output cable distance: ~35 feet AWG24 DVI high speed cable
  • Supported Input & Outputs Signals:
    • DVI 1.0 and 1.1
  • Power Supply: 100 to 240VAC, 50-60Hz
  • Power Consumption: 50W 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: -25℃ to 55℃

Why not buy this 8x18 DVI Matrix Switcher with In & Out Scaling today?

DVI Input Card DIP Switch Settings

DVI Output Card DIP Switch Settings

Why not buy this 8x18 DVI Matrix Switcher with In & Out Scaling today?

Free Android and iOS App: The IOS App for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.

For the Android App click the following link and download it. Go to Android App for control of this DVI matrix switch.

Here is the RS232 User Manual if you want to write your own drivers.

Also, CLICK HERE for our DirecTV™ & DVI Matrix Control Software for Bars & Restaurants

Why not buy this 8x18 DVI Matrix Switcher with In & Out Scaling today?

HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other DVI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring DVI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

These modular DVI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and "Failed" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.

Why not buy this 8x18 DVI Matrix Switcher with In & Out Scaling today?

Q: How many Preset scenes can I Save and Recall?
A:
40.

Q: What are the HDCP options?
A:
You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.

Mix-n-Match combinations:

Non-HDCP source to a HDCP compliant TV

HDCP source to a non-HDCP compliant TV

Q: What is you test procedure?
A:
Our testing procedure is:

  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship
Q: What are the dimensions of the chassis?
A:
It is 18x18: 4U - 482x390x178mm - 18.97x15.35x7.01 inches (L/W/H)

Q: Do you have any tips in the unlikely event the unit fails?
A:
Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on. A: Unlike other HD distribution technologies, HDBaseT is
