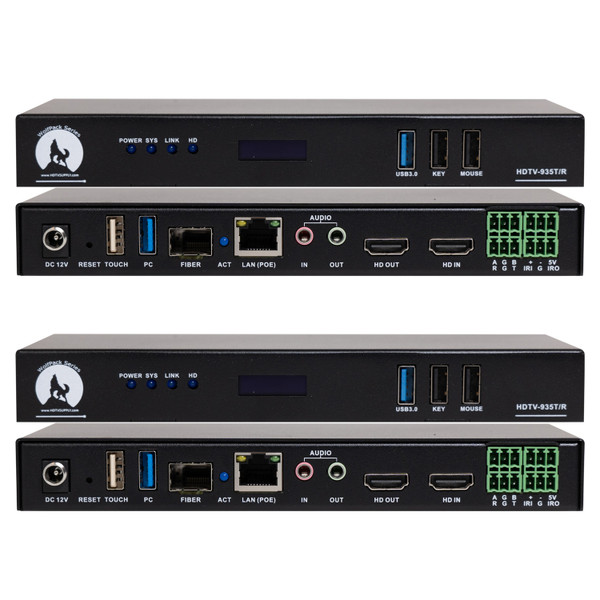

This WolfPack 4K 60 Hz HDMI Over IP Matrix Switcher with Apps family sends & receives a 4K 60 Hz HDMI video/audio signal to up to 450 feet in a 4K 60 HDMI format with CAT6. It includes multiple POE HDMI 4K Transmitters (TX) and POE 4K HDMI Receives (RX). They are installed using 1 piece of a twisted pair CAT6/7 cable and are transmitted digitally over that single cable without any signal loss.
It is a true AV Over IP matrix switcher allowing any input to be routed to any output; or the same input to be routed to all outputs, or any combination
Internal formats of MPEG4-AAC and LPCM stereo adapt to available network bandwidth if needed. It supports both H.264 & H.265 (switchable). Since this uses H.264/265 technology our 4K AV over IP system total bandwidth is 1G. Either with 4K60 input or Quad-view outputs, the total bandwidth never exceeds 1G.
4K 60 Hz HDMI Over IP Matrix Switcher with Apps Features:
- Real Time Video Preview of all Sources on any Wireless Tablet
- Real time video seen on a tablet
- 4K 60 Hz AV Over IP Technology with Live Streaming
- Video Wall Support to any size or quantity of TVs
- Supports Multi-view
- Uses one extender for TX and RX (setup in PC software)
- Unlimited Sources
- Unlimited Computers
- Unlimited KVM
- Unlimited HDMI In & Out
- Any In to Any Out
- Wireless iPad and Android Tablet control
- Any size video walls
- Any quantity video walls
- Optionally 90°, 180° & 270° rotation
- USBs
- Uses CAT6 for connection
- Extends a 4K 30 Hz signal to 300' w/CAT6
- H.265 protocol
- HDCP compliant
- 4K 60 Hz video over 1G Switch
- 80ms Switching & Latency
- Separate Audio Outs
- Scalable Ins & Outs
- Rack mountable (Rack Mount Available)
- Windows Software Support
- Unlimited Field Upgradeable
Our 4K 60 Hz HDMI Over IP Matrix Switchers also supports 4K60 KVM. Also, unlike a traditional card cage matrix, you only buy the exact input and output combination you need, saving you money by not buying unused ports.
The unique feature of these 4K 60 Hz HDMI Over IP Matrix Switchers are that the transmitter and receivers are the same unit, and you just select what you want them using the PC software.
These WolfPack 4K HDMI Over IP Switchers use the H.265 technology to work together with WolfPack 4K Transmitters (POE Encoders) and 4K Receivers (POE Decoders) to provide a complete end-to-end streaming system. They can also provide a video wall up with input and output HDMI resolutions supporting up to 4K 30 Hz. .
