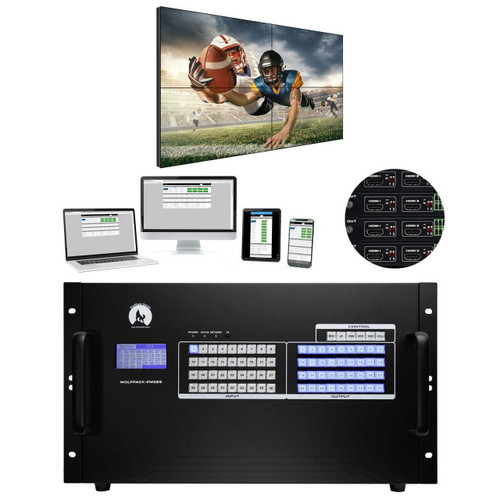

4K60 12x32 HDMI Matrix Switch

WolfPack

4K60 12x32 HDMI Matrix Switch
$3,950.00
Part Number:
HDTV-12x32
UPC:
728370347104
Condition:
New
Availability:
In Stock
1:
4K 60 8x32 HDMI Matrix Switch
2:
Free Apps, WEB GUI, RS232 & Front Control
3:
Configured with 4K 60 4-Port HDMI slide-in cards
8:
HDCP 2.3 & HDMI 2.0 Compliant

★★★★★ Verified Choice: Trusted by 10,000+ Customers & Professional AV Integrators

Route any of 12 HDMI sources to any of 32 displays with full 4K60 18Gbps performance.

The WolfPack 4K60 12x32 HDMI Matrix Switch is the gold standard for sports bars, churches, and corporate offices. Its modular design ensures that your AV system is not only powerful today but easily serviceable for years to come.

How the 12x32 WolfPack Works

1. Connect Your Sources Plug in up to 12 HDMI sources like DirecTV boxes, media players, or PCs.
2. Connect Your Displays Route those sources to up to 32 TVs, projectors, or monitors.
3. Take Control Use your iPad, a web browser, or your existing control system (Control4, Crestron, etc.) to switch sources in seconds.
4. Future Proof If a port fails, simply swap a 4-port card. No need to replace the entire $5,000+ switch.

Why Choose Modular Over Fixed Switches?

Feature WolfPack Modular Standard Fixed Switch
Serviceability Replace individual cards on-site Must replace entire unit
Reliability Dual Redundant Power Supplies Single Power Supply
Customization Mix HDMI, HDBaseT, and SDI Fixed inputs only
Support Free Lifetime Tech Support Limited Support

How do you control the WolfPack 12x32 Matrix?

Managing 32 TVs shouldn't be complicated. This system offers 5 easy ways to switch:

  • iOS/Android App: Visual switching from your tablet or phone.
  • Web GUI: Access the matrix from any computer on your network.
  • Third-Party Control: Ready-to-use drivers for Control4, Crestron, Elan, and RTI.
  • RS-232 / TCP/IP: Professional serial commands for custom automation.
  • Front Panel: Direct manual switching for emergency overrides.

Ideal for High-Traffic Applications

Sports Bars Send 12 different games to 32 TVs simultaneously.
Houses of Worship Route lyrics, cameras, and video to sanctuary and overflow rooms.
Data Centers Monitor 12 servers across 32 monitoring stations.
Digital Signage Manage complex menu boards and advertisements from one rack.

Why not buy this 4K60 12x32 HDMI Matrix Switch today?

Technical Specifications

Model WolfPack 4K60 12x32 Matrix
Bandwidth 18Gbps (4K at 60Hz 4:4:4)
Compliance HDMI 2.0 / HDCP 2.3 / HDR10
Inputs 12 HDMI (Modular 4-Port Cards)
Outputs 32 HDMI (Modular 4-Port Cards)
Chassis 6U Rack-mountable Heavy Duty Steel
Audio Embedded & De-embedded Audio Support
Warranty 2-Year WolfPackCare Advance Replace

Frequently Asked Questions

Does this support 4K60 on all ports?

Yes. This matrix is designed for full 18Gbps performance, supporting 4K60 4:4:4 across every input and output card.

What happens if a power supply fails?

The unit features dual redundant power supplies. If one fails, the second takes over instantly to prevent system downtime.

Do I need an expensive controller to use the App?

No. You can use our free WolfPack App or Web GUI directly over your local network without any additional hardware.
