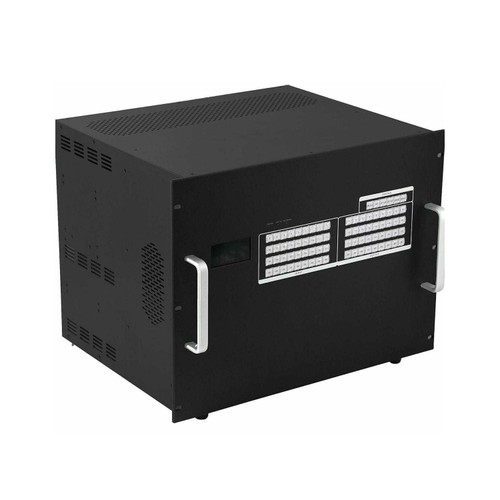

4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS

4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS - Extra Image 14K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS - Extra Image 24K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS - Extra Image 3
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS


4K 60 Hz 4x16 HDMI Matrix Switcher

HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS

100ms Seamless Switching

3.5mm embedded/de-embedded audio

Has a Video Wall Processor

iPad/Android, WEB GUI, RS232 & Front Control

Up & Down Scaling on all Outputs

Part # MM4K604x16
Usually ships in 5-7 business days
Today's Price: $5,500.00
Ask Our WolfPack Experts

Features

WolfPack HDMI Switchers HDTV Supplys Mini WolfPack™ 4K/60 4x16 HDMI Matrix Switcher w/iPad & Android Control is a pre-configured integrated HDMI video and HDMI audio modular HDMI matrix router. The 36x36 chassis's back plane allows HDMI technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs.

The core of the 4K/60 4x16 HDMI Matrix Switcher w/iPad & Android Control consist of an 36x36 Modular Matrix chassis and its highly configurable WolfPack backplane that supports 36 input cards and 36 output cards. You can control the 4x16 HDMI Matrix Switcher w/iPad & Android Control via front Touch Screen, WEB GUI control, the RS-232 serial port & the supplied iOS/Android App. The matrix does not have IR nor a remote control.

By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.

Reasons that sets our WolfPack™ HDMI Modular Matrix Switchers apart from others:

  1. 4K/60 4:4:4 at 18GBS for the best picture
  2. HDR Compliant
  3. Dolby Vision Compliant
  4. HDMI 2.0, HDCP 2.2 compliant on all input and output cards
  5. 4K/60 4:4:4 HDR @ 10GBPS on all inputs & outputs
  6. HDR and Dolbyvision support
  7. 100ms Seamless Switching
  8. 3.5 mm de-embedded/embedded audio
  9. 40 - Preset scenes that can be Saved and Recalled
  10. Closed Caption (CC) Pass-through
  11. Control via an iPad App, Android App, Web Browser (WEB GUI), RS232 & Front Buttons
  12. No latency
  13. 2-Power Supplys w/automatic switch-over if a problem occurs
  14. 2-Year WolfPackCare™ Advance Replace Warranty
  15. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  16. Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
  17. Optional low cost Video wall Processors
The 4K/60 4x16 HDMI Matrix Switcher w/iPad & Android Control manages HDMI input signals for the inputs and female HDMI outputs for HDMI cabling. This 4K/60 WolfPack 4x16 HDMI Matrix Switcher w/iPad & Android Control support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 4K/60 WolfPack 4x16 HDMI Matrix Switcher w/iPad & Android Control also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.

4K/60 WolfPack 4x16 HDMI Matrix Switcher w/iPad & Android Control Features:

  • Chassis size: 36 input and 36 outputs cards
  • Input Cards Supported:
    • 4 - 4K/60 female HDMI single port cards = 4 - HDMI inputs
  • Output Cards:
    • 16 - 4K/60 female HDMI single port cards = 16 - HDMI Output
  • Input HDMI cable distance: ~12 feet AWG24 HDMI 2.0 high speed cables
  • Output HDMI cable distance: ~35 feet AWG24 HDMI 2.0 high speed cables
  • Flexible card type design supporting 36 input cards and 36 output cards
  • Hot Swappable with easy plug n play
  • RS232 serial control port, using serial commands
  • TCP/IP control via Ethernet
  • Global presets to save and recall the Summary
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel push buttons for local switching
  • IP controlled via built-in web server and LAN
  • RS-232 Serial interface for remote control
  • Supports seamless switching, no black/ blue/ split screen while switching
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Uses a dual control system
  • Control via Web / RS232 and Front Buttons control (no remote control)
  • Rack-mountable
SwiftSwitch™ SEAMLESS SWITCHING: Our WolfPack™ Modular HDMI Matrix switcher can be configured with instantaneous video switching which delivers full 1080p video powered by our WolfPack engine implemented at each output port. This high-performance engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input and the display outputs and scaling inputs for the best output resolution while setting the output clock timing and using a frame buffer to retain the input signal information for the fastest output.

The WolfPack™ Modular HDMI Matrix switcher allows switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The WolfPack™ Modular HDMI Matrix Routers advanced processor allows it to process live signals simultaneously which means it can seamlessly and instantly switch (~100ms) between HDMI inputs and outputs. Most non-seamless matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.

EDID Explained: The 4K/60 WolfPack 4x16 HDMI Matrix Switcher w/iPad & Android Control provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.

Modular Matrix switchers WEB GUI management Drag the outputs to the TV Walls set up area
All our Modular Matrix switchers can support the TV Wall function with the 4K/60 HDMI 2.0 cards. Here's a demo from the 18x18 card cage with 12-HDMI 2.0 output cards to 12 TVs. It can support multiple TV Walls WEB GUI management Drag the outputs to the TV Wall set up area

Why not buy this 4K/60 4x16 HDMI Matrix Switcher w/iPad & Android Control today?

Specs

Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.

Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply will seamlessly take over the matrices power needs.

Modular HDMI Matrix Switcher Specs:

  • Modular Configuration: 36 inputs and 36 outputs
  • Input cable distance: ~15 feet AWG22 4K/60 HDMI 2.2 high speed cable
  • Output cable distance: ~35 feet AWG22 4K/60 HDMI 2.2 high speed cable
  • Supported Input & Outputs Signals:
    • HDMI and Display Port: up to 4K at 60 Hz at 4:4:4
    • CATx: HDBaseT technology to 1080p at 70/100m Extension (work with extenders)
  • Control TCP/IP, RS232 and front buttons
  • Power Supply 100 to 240VAC, 50-60Hz
  • Power Consumption 50W 70W
  • Operating Temperature -10℃ to 50℃
  • Storage Temperature -25℃ to 55℃

Why not buy this 4K/60 4x16 HDMI Matrix Switcher w/iPad & Android Control today?

Compatibility

HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and "Failed" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 User's Manual has and will work to control the matrix directly.

Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants

Why not buy this WolfPack Lite 4K/60 4x16 HDMI Matrix Switcher w/iPad & Android Control today?

Reviews

Make Offer

Videos





Our engineer in China made this video to show our 4K 60Hz Modular Matrix Switcher with a 4K 60Hz HDMI 2.0 input and an HDBaseT output to the POC HDBaseT receiver. It shows our seamless (100ms) switching without any black or blue screen interruption during the HDMI switching. It also shows our 3.5mm audio embedded and de-embedded function, the iPad control and the quick 2-key switching.













Below is a video of the WolfPack 9x9 card cage model showing the fast switching speed and its features. The larger card cage models will operate exactly the same but will allow more input and output cards.



Why not buy this 4K/60 4x20 HDMI Matrix Switcher w/iPad & Android Control today?

3D

Q/A

WolfPack HDMI Switchers

Q: How do I customize the output card resolution?
A:
See the DIP switch settings here for the 4K60 HDMI2.0 output cards.

Q: How many Preset scenes can I Save and Recall?
A:
40.

Q: What are the HDCP options?
A:
You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.

Mix-n-Match combinations:

Non-HDCP source to a HDCP compliant TV

HDCP source to a non-HDCP compliant TV

Q: What are the dimensions of the chassis?
A:
9x9: 2U - 482x390x88mm - 18.97x15.35x3.46 inches (L/W/H)

Q: Do you have any tips in the unlikely event the unit fails?
A:
Turn it OFF & then disconnect the matrix from the AC power & all cables. Pull out each board from the rear & push back in. Plug all cables back in & turn it on.

Q: What is you test procedure?
A:
Our testing procedure is:
  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship
Q: How is HDBaseT technology different than others?
A:
Unlike other HD distribution technologies, HDBaseT is the only technology which enables CAT5/6/7 connectivity from 70 meters to 100 meters, depending upon the specific product, for uncompressed full HD multimedia content and up to 100 watts of charging power via a single cable. HDBaseT is optimized for video applications and can connect all HDBaseT enabled home entertainment devices. Also, HDBaseT technology has the capacity to deliver double the resolution available today to future 2K and 4K formats. Other existing solutions also require a specific cable and/or a new proprietary connector while HDBaseT utilizes the existing Ethernet infrastructure. These WolfPack HDBaseT matrix systems have with (POC) Power Over Ethernet so you don't need AC adapters.

HDMI HDbaseT Extender Helpful Tips & Recommendations:

  • Keep cables away from any equipment with an electromagnetic wave, e.g., mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines, etc.
  • CAT5/6 cables should not exceed 220 feet or (70m).
  • Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
  • Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).

Why not buy buy this 4K/60 4x16 HDMI Matrix Switcher today?

Warranty

487-Year
Click Here for Product Warranty

Pictures

4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS
Ask a Question

Questions & Answers


Ask a question about the 4K/60 4x16 HDMI Matrix Switcher w/HDMI 2.0, HDCP 2.2, 4:4:4 HDR @ 18GBPS or Call 800-841-9238

Your email:
Your question:
Software

Free Android and iOS App: The IOS App for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.

For the Android App click the following link and download it. Go to Android App for control of this HDMI matrix switch.

Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants
