Up To 48-TVs 4K 60 HDMI In & CAT6 Out w/Video Wall
- Uses a 48x48 (16U) Card Cage
- Supports up to 4K 60 Hz Resolution at 4:4:4 and 18-GBPS
- Includes Free Video Wall Processing
- Includes 4-Port 4K 60 Hz HDMI Input Cards
- Includes 4-Port 4K 60 Hz over CAT6 Out Cards
- Includes 4K 60 Hz CAT6 Receivers
- Fast switching speed w/o latency
- 40-Scene Saving Settings
- HDMI Scaling on each card
- Audio In & Audio Out on each card
- Front 7" Color Touch Screen for control
- Free iOS & Android Apps & WEB GUI
- Optional Crestron, RTI, Elan & Control4 Drivers
- 2-Power Supplies
- Optional Sports Bar Control System (Shown)

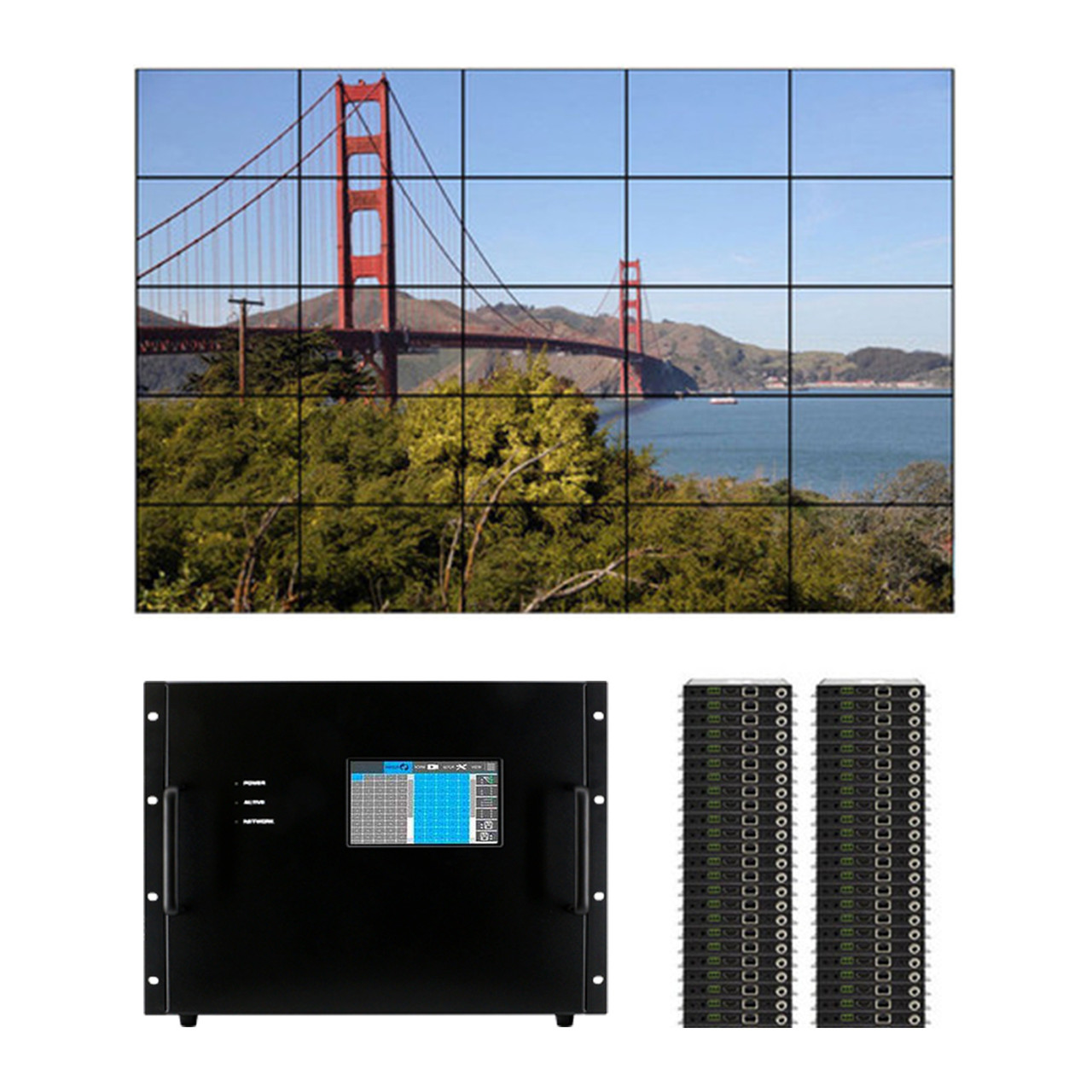

These WolfPackGold Preconfigured 4K 60 HDMI Matrix Switchers over CAT6 allow any input to be routed to any output, or the same input to be routed to all outputs, or any combination. They are created with a 4K 60 48x48 card cage chassis with 4-port 4K 60 HDMI cards, 4-Port 4K 60 (RJ45) Out Cards and 4K 60 HDMI to CAT6 Receivers. They support various 4K 60 4-Port HDMI input & HDMI to CAT6 cards, up to a total of 48-HDMI 4K 60 inputs and 4K 60 48-HDMI to CAT6 outputs within the 4K 60 Card Cage Modular Matrix System.
Not only is this product a 4K 60 HDMI matrix switch, but it is also designed to support multiple video wall configurations. Your tablet is used to create video walls, and the number of video walls is only limited by the number of outputs that you have. It supports Drag-N-Drop Video Wall Processing & setups.
These 4K 60 HDCP 2.2 compliant, 4K 60 HDMI Matrix Switchers over CAT6 are controlled via Front 7" Color Touch Screen, a WEB GUI control, 2-TCPIP & RS-232 serial ports & the free iOS and Android Apps. All the below have spare slots for you to expand in the future when you want to add more sources or TVs.
Below are just some preconfigured 4K 60 HDMI Matrix systems we have and if you need more, or less, HDMI inputs & outputs design your own with the system in the below upper left-hand corner or call us at 833-WOLFPACK (833-965-3722).
