4K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall

4K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall
4K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall
4K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall - Extra Image 14K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall - Extra Image 24K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall - Extra Image 3
4K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall
4K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall
4K 4x6 HDMI via LAN/Fiber w/Remote IR, Separate Audio & VideoWall

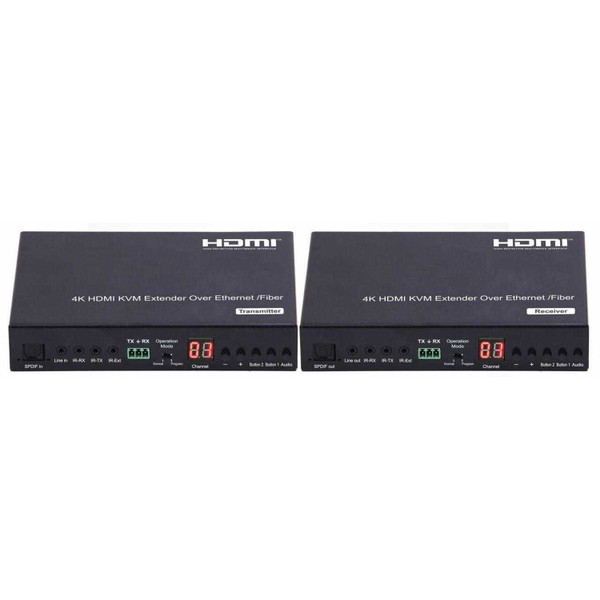

WolfPack 4K 4x6 HDMI Over LAN / USB & Fiber Adapter

Supports a Video Wall with Video Rotation

Sends a 4K HDMI video/audio signal up to 100 meters

Audio Embedding and De-embedding

Bidirectional IR Remote Control

Part # HDTVSXEX57-4x6
Today's Price: $1,250.00
Out Of Stock
Ask Our WolfPack Experts

Features

WolfPack HDMI Extenders HDTV Supplys WolfPack™ 4K 4x6 HDMI Over LAN Adapter set is a solution for audio, video, fiber & USB signal extension via Local Area Network (LAN). It can be used as audio, video and KVM extender over IP & applied to point to point, point to multi-point, multi-point to multi-point and video wall broadcast system controlled by USB, RS232, IR & configured the 4K HDMI & USB over IP Extender by a WEB GUI & a PC GUI. An easy installation system built up with Gigabit Ethernet switch which has IGMP function & CATx cables for extension or broadcast. Our WolfPack 4K 4x6 HDMI Over LAN w/Remote IR is IP addressable. The supplied remote control allows you to choose the source & the LED shows the group ID.

NOTE: This product has been discontinued. See the above SIMILAR Tab for equivalent products or, if not there, call us at 833-WOLFPACK (833-965-3722) right now to discuss your needs.

The conversion to TCP/IP allows you to forego the limitations of point-to-point extender systems and transmit directly over your network. You can also use this set as a typical point-to-point extender and transmit for up to 394 feet over a single CAT6 cable or 330 feet over a CAT5e cable. In a one-to-many configuration the transmitter (TX) features a static IP address and can be paired with up to eight receivers on the same network. A network switch is not supplied.

WolfPack 4K 4x6 HDMI Over LAN Features:

  • 4K UHD HDMI over IP/Fiber Extension
  • USB 2.0 over IP extension
  • Supports a transmission distance 120m over single Cat5e/6 cable
  • Supports Fiber optical up to 60KM (Single Mode)
  • Supports input 4K@60 Hz YUV 420 (Max) and output 4K@30 Hz (Max)
  • HDCP 2.2 / HDCP1.4 compliant
  • Supports Bi-Directional Wide Band IR (38KHZ to 56KHZ) Pass through
  • Supports RS232 pass through and control & Telnet command
  • Includes an IR remote to control the Group ID with an LED to show the Group ID
  • Supports Dolby True HD and DTS-HD Master Audio
  • Input audio: SPDIF 5.1 and L/R Stereo analog Line mixed
  • Output audio: SPDIF 5.1 and L/R Stereo Analog audio extraction
  • Supports an Unicast / Multicast Video Wall system (Max 8x16) with output video Rotation
  • 10 - Gigabit IGMP Ethernet Switch can be cascaded for many layers
  • Complys with TCP/IP protocol
  • LED channel display
  • Front panel channel plus/minus buttons
  • IR remote control for channel selections
  • Support LPCM audio format
  • Support Dynamic Host Configuration Protocol (DHCP)
  • Wide-band IR control (38KHz to 56KHz)
  • With IR Remote to choose the source with LED to show the Group ID
  • By pass 2 way UART/RS232 (Up to 115200)
  • Uses a remote controller to select 8 group Baud rate
  • Supports one to one, one to many, many to one, many to many modes, with large cascade
  • Supports PC tool control
  • HDCP 2.2/1.4 Compliant
  • Supports 3D

This 4K 4x6 HDMI Over LAN uses the advanced H.264 as the compression type, which makes it occupy lower bandwidth and transmit over the LAN more smoothly. It supports 330 feet over single cat5e/6 cable at point to point, as well as point to many and many to many over Ethernet switch. The over IP solution is widely used in various locations, like meeting room, class room, metro, airport, home, mall advertisement...etc.

The WolfPack 4K 4x6 HDMI Over LAN consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection with the above network Ethernet switch. Support for multiple transmitters requires a managed network switch.

Why not buy this 4K WolfPack 4x6 HDMI Over LAN & Fiber Adapter w/Remote IR today?



Specs

Our WolfPack 4K 4x6 HDMI Over LAN System provides one-to-one extension at distances up to 394 feet as well as many-to-many matrix switching of multiple devices, all with convenient channel-viewing using the front panel LED display.

4K HDMI Over LAN Adapter Per TX and RX Set Contents:

  • 1 - Operating Instructions
  • 1 - Transmitter
  • 1 - Receiver
  • 2 - IR-TX cables
  • 4 - IR-RX cables
  • 8 - screws
  • 4 - detachable mounting ears
  • 2 - Phoenix plugs for RS232 cable termination
  • 2 - Remote controller
  • 2 - Power adapters 5V 1A

Why not buy this 4K 4x6 HDMI Over LAN & Fiber Adapter w/Remote IR today?

Compatibility

This HDMI Over LAN Adapter works with the following devices:

  • Number of local and remote units that can be used is dependent on the backplane bandwidth of the switch.
  • For a point-to-many connection, a standalone network switch, hub, or router can be used instead of a managed network switch.
  • If possible, it is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.
  • Uses M-JPEG technology to process image compression on a fixed bandwidth.
  • Note: At high resolutions, characters on PCs may get slightly fuzzy due to image compression and decompression process so use the Sharpness, Contrast, Brightness and Tint controls on the TVs to optimize the image.
  • Local and remote units must be in the same LAN. The units do not support WAN connections.

Why not buy this 4K WolfPack 4x6 HDMI Over LAN & Fiber Adapter w/Remote IR today?
