16x56 DVI Matrix Switcher with In & Out Scaling

16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling

16x56 DVI Matrix Switcher with In & Out Scaling - Extra Image 116x56 DVI Matrix Switcher with In & Out Scaling - Extra Image 216x56 DVI Matrix Switcher with In & Out Scaling - Extra Image 3
16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling

WolfPack 16x56 DVI Matrix Switcher with HDCP 1.4

Control via an iPad/Android App, Web GUI & RS232

10" Color Touch Screen for control & status

Seamless switching speed of 100ms (0.1 sec)

Includes DVI adapters that support HDMI, CVBS/Y-Pb-Pr & VGA Video

Separate Embedded Audio In and De-embedded Audio Out

Scaling up & down on all input & output cards

Order Information
Part Number:MMDVI16x56
Price:$13,800.00
Availability:Usually ships in 1-2 weeks
30 Day Returns
Same Day Shipping
Live U.S. TEXT Support
135,000+ Items Shipped
100% Safe SSL Shopping
65,000+ Happy Customers
Free Lifetime Tech Support
Over 10,000 ✭✭✭✭✭ Reviews
Choose From Over 11,000 Items
Live U.S. Telephone Tech Support

Quantity:
Show All Tabs

Features

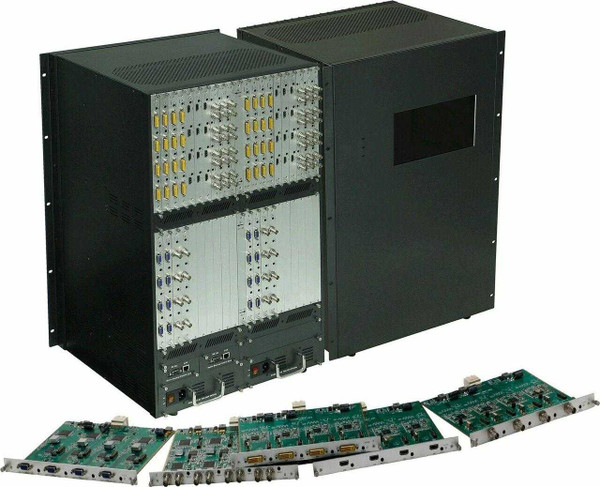

WolfPack DVI SwitchersHDTV Supply's WolfPack™ 16x56 DVI Matrix Switcher is a preconfigured DVI video and separate audio modular DVI matrix Switcher. The 80x80 chassis backplane allows any DVI input to be switched to any output, or any input to be routed to all outputs, or any combination. Since you are only using 16-DVI inputs and 56-DVI outputs with this 16x56 DVI Matrix Switcher you can add more DVI inputs and DVI outputs in the field.

24/7/365 OPERATION: The 16x56 DVI Matrix Switcher is made up of slide-in DVI cards so the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair. You can control the WolfPack™ 16x56 DVI Matrix Switcher via front buttons, WEB GUI control, or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android app.

The core of the 16x56 DVI Matrix Switcher consists of an 80x80 Modular Matrix chassis and its highly configurable backplane that supports 80 input cards and 80 output cards. The 16x56 DVI Matrix Switcher is HDCP 1.4 compliant.

Separate Embedded Audio In and De-embedded Audio Out: The DVI matrix allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the DVI input cards 3.5mm audio connector and then de-embedding the audio on the DVI output cards 3.5mm audio.

Universal Input and Output cards. The matrix is also supplied with universal adapters for each DVI input and DVI output that converts the DVI connector to HDMI, VGA, composite video and component video.

Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the manual scaling up/down. Each DVI card has a 8-pin DIP switch to select multiple resolution settings to conform to your DVI source devices and the DVI destination devices. See above FAQ.

Reasons that sets our WolfPack™ 16x56 DVI Matrix Switcher apart from others:

  1. 4-Port DVI input and DVI output cards are DVI 1.1 & HDCP 1.4 compliant
  2. Separate Embedded Audio In and De-embedded Audio Out
  3. Seamless switching speed of 100ms (0.1 sec)
  4. Hardware Scaling via DIP Switches on both in and out cards
  5. Control via an iPad, Android, Web GUI, RS232 & Front Buttons
  6. Optionally uses the best HDBaseT DVI to CATx extenders with POC (Power Over Cable)
  7. 40 - Preset scenes that can be Saved and Recalled
  8. Closed Caption (CC) Pass-through
  9. Control via an iPad, Android, Web Browser (WEB GUI), RS232 & 10" Color Touch Screen for control & status
  10. No latency
  11. 2-Year WolfPackCare Advance Replace Warranty
  12. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  13. Other in & out cards available like VGA, HDMI, Fiber, SDI, CVBS, YPbPr and Audio
  14. Optional built-in Video wall Processor

WolfPack™ 16x56 DVI Matrix Switcher Configuration:

  • 1 - 80x80 Card cage chassis
  • 4 - 4-port input cards = 16 DVI inputs
  • 14 - 4-port HDMI output cards = 56 DVI outputs
The WolfPack 16x56 DVI Matrix Switch manages DVI signals for the inputs and outputs. This 16x56 DVI Matrix Switcher supports long haul transmissions, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 16x56 DVI Matrix Switcher also can support high-resolution DVI sources routed to DVI displays, monitors and projectors. The EDID can be selected between multiple modes or copied from the attached displays.

16x56 DVI Matrix Switcher Feature:

  • Chassis size: 80 input and 80 outputs cards
  • Input Cards Supported:
    • 4 - 4 port female DVI port cards = 16 DVI inputs
  • Output Cards:
    • 14 - 4 port female DVI port cards = 56 DVI outputs
  • Input DVI cable distance: Up to ~12 feet with an AWG24 DVI high speed cable
  • Input DVI cable distance: Up to ~35 feet with an AWG24 DVI high speed cable
  • Flexible card type design supporting 80 inputs and 80 outputs
  • 1080p/60 compatible
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel LCD display for status feedback
  • Front-panel push buttons for local switching
  • IP controlled (WEB GUI) via a built-in web server and LAN
  • RS-232 Serial interface for remote control
  • Supports 100ms fast switching, no black/ blue/ split screen while switching
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Hot-pluggable
  • Control via Web / RS232 and Front Buttons control (no remote control)
  • 2U Rack-mountable

Why not buy this 16x56 DVI Matrix Switcher with In & Out Scaling today?



Specs

Seamless Switching Speed of 100ms (0.1 sec): The 16x56 DVI Matrix Switcher allows switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The Modular DVI Matrix Switchers advanced processor allows it to process live signals simultaneously which means it can seamlessly & instantly switch (~100ms) between DVI inputs & DVI outputs. Most non-seamless matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.

Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.

WolfPack 16x56 DVI Matrix Router Specs:

  • Modular Configuration: 80 inputs/80 outputs card cage
  • Output cable distance: ~35 feet AWG24 DVI high speed cable
  • Supported Input & Outputs Signals:
    • DVI 1.0 and 1.1
  • Power Supply: 100 to 240VAC, 50-60Hz
  • Power Consumption: 50W 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: -25℃ to 55℃

Why not buy this 16x56 DVI Matrix Switcher with In & Out Scaling today?

Compatibility

HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other DVI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring DVI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

These modular DVI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and "Failed" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.

Why not buy this 16x56 DVI Matrix Switcher with In & Out Scaling today?

Reviews

Similar

Make Offer

Videos











Below is a video of this WolfPack 9x9 card cage model showing the fast switching speed and its features. The larger card cage models will operate exactly the same but will allow more input and output cards.

Why not buy this 16x56 DVI Matrix Switcher with In & Out Scaling today?

3D

Q/A

Q: How many Preset scenes can I Save and Recall?
A:
40.

Q: What are the HDCP options?
A:
You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.

Mix-n-Match combinations:

Non-HDCP source to a HDCP compliant TV

HDCP source to a non-HDCP compliant TV

Q: What is you test procedure?
A:
Our testing procedure is:
  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship
Q: What are the dimensions of the chassis?
A:
It is 16x56: 8U - 482x390x355mm or 18.97x15.35x13.98 inches (L/W/H)

Q: Do you have any tips in the unlikely event the unit fails?
A:
Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on. A: Unlike other HD distribution technologies, HDBaseT is

Why not buy this 16x56 DVI Matrix Switcher with In & Out Scaling today?

Warranty

2-Year
Click Here for Product Warranty

Why not buy this 16x56 DVI Matrix Switcher with In & Out Scaling today?

Pictures

16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling
16x56 DVI Matrix Switcher with In & Out Scaling
Ask a Question

Questions & Answers


Ask a question about the 16x56 DVI Matrix Switcher with In & Out Scaling or Call 800-841-9238

Your email:
Your question:
Software

Free Android and iOS App: The IOS App for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.

For the Android App click the following link and download it. Go to Android App for control of this DVI matrix switch.

Here is the RS232 User Manual if you want to write your own drivers.

Also, CLICK HERE for our DirecTV™ & DVI Matrix Control Software for Bars & Restaurants

Why not buy this 16x56 DVI Matrix Switcher with In & Out Scaling today?

FAQ

DVI Input Card DIP Switch Settings

DVI Output Card DIP Switch Settings

Why not buy this 16x56 DVI Matrix Switcher with In & Out Scaling today?
