4K 14x28 HDMI Matrix Over Wireless LAN with iPad App

WolfPack

4K 14x28 HDMI Matrix Over Wireless LAN with iPad App

Discontinued

Part Number:
14x28-HDBIT-MATRIX
UPC:
796168569694
Condition:
New
Availability:
Contact us for availability
1:
WolfPack 4K 14x28 HDMI Matrix Over LAN
2:
iOS & Android App & PC Control
3:
Sends & Receives 4K UHD HDMI up to 400'
4:
Remote IR controls Sources from TVs
5:
Wireless Operation

WolfPack HDMI Switchers HDTV Supplys WolfPack™ 4K 14x28 HDMI Matrix Over LAN is a simple to install preconfigured HDMI matrix switch over IP. This HDbitT HDMI video matrix over IP allows for the distribution and switching of high definition 4K video & audio signals using off-the-shelf Gigabit IGMP switches. The 14x28 HDbitT HDMI video matrix uses advanced HDbitT technology supporting a video resolution up to 4Kx2K@30Hz Ultra HD. You can control the WolfPack™ 14x28 HDMI Matrix Over LAN with a PC, remote IR & with its iOS or Android app. Configure any-size HDMI matrix switch using HDMI over IP with only the number of ports available on the Ethernet LAN switch (above) limiting the ins & outs of your design. Multiple receivers can simultaneously connect to many transmitters to form a virtual matrix of multiple HDMI inputs with up to 65,000 HDMI receivers (TVs).

NOTE: This product has been discontinued. See the above SIMILAR Tab for equivalent products or, if not there, call us at 833-WOLFPACK (833-965-3722) right now to discuss your needs.

This HDMI Over Network Send & Receive Adapter taps into the benefits of Ethernet standards to overcome the inherent limitations of TMDS. The HDMI Over Network Adapter allows reliable cable runs up to 120m with easy splitting and distribution of HDMI audio and video signals with perfect signal integrity. The Ethernet switch must have an IGMP function and we use the TP-LINK TL-SL3428. Other switches also may be used if they conform to a IGMP function

This HDMI Over Network Adapter is compliant with HDCP 1.4 specifications, supports copy protection with 128-bit AES encryption and overcomes traditional key verification limitations enabling very large system sizes while maintaining full HDCP compliance. And unlike first-generation Megabit implementations of IP technology, this HDMI Over Network Adapter means picture quality that is virtually indistinguishable from the source & suitable for the most discerning viewer.

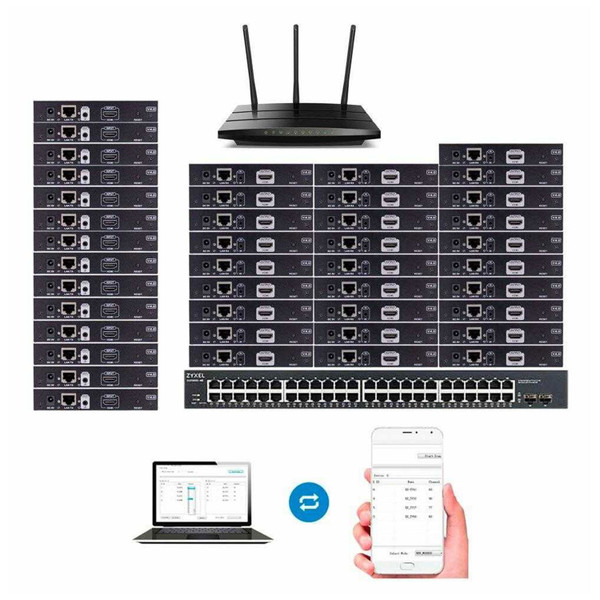

4K 14x28 HDMI Matrix Over LAN is pre-configured with:

  • 14 - 4K HDMI to LAN Transmitters
  • 28 - 4K LAN to HDMI Receivers
  • 1 - Companion 48 port Ethernet switch
  • 1 - iOS / Android Wireless controller

What sets this 14x28 HDMI Matrix Over LAN apart from others:

  • Supports IR pass back function to control the source devices from the receivers location.
  • Zero Latency & Switching Times
  • Can send and receive HDMI audio and video up to 300 feet
  • iOS and Android App Control
  • PC controlled via the Ethernet switch
  • 4K/30 UHD Compliancy

HDMI Over Network Transmitter & Receiver Features:

  • Plug and play.
  • Apply advanced HDbitT over IP technology.
  • Transmission distance is up to 120 meters or 400 feet via CAT6.
  • Resolution supported is up to 4K@30Hz ultra HD.
  • Supports scalable and flexible input and output matrix configurations allowing 100 inputs to an infinite output.
  • Supports select and switch source device input from the receiver via remote control and hard button
  • Support APP control. The user can scan, preview and build their configuration by using a phone or tablet easily
  • Supports IR pass back function to control the source device from the receiver location.
  • Supports computer control software to select and switch source device input.
  • HDMI signal extension up to 100 meters or 330 feet.
  • Supports L/R stereo audio.
  • Supports one-to-one, one-to-many and many to many connections via managed switch.
  • Supports up to theoretically 65,000 receivers.
  • IR pass-through.
  • Compliant with HDMI 1.4 and HDCP 1.4 standards.
  • Audio and video are transmitted digitally over an 100 Ohm CAT6 cable for lower signal loss.
  • TV will show display source channel, which is easier for end user to control.

48-Port HDMI Over Network Managed Ethernet Switch Features:

  • 10/100Mbps Ports Managed Switch
  • Advanced standards-based enterprise features: IEEE 802.1d, 802.1x, 802.1Q, 802.1p, IGMP Snooping, SNMP and more
  • SNMP, Web-based, Telnet, Console management

Why not buy this 14x28 HDMI Matrix Over LAN today?

HDbitT HDMI Video Matrix over IP Specification (Per TX or RX):

  • HDMI signal: HDMI1.4 and HDCP compliant
  • Network bandwidth: 28Mbps
  • HDMI input resolution supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K @24/25/30Hz
  • Audio format supported: L/R stereo audio
  • TMDS signal: 0.7~1.2Vp-p
  • DDC signal: 5Vp-p
  • Includes an IR Remote control
  • IR passback: Supports 20~60KHz IR devices
  • APP control: Support APP control, user can scan, preview, build up their configuration by using a phone/tablet easily, OS system supports IOS and Android
  • Matrix configuration: Up to 100 source signals can be connected and switched to infinite outputs
  • Voltage/Current: 5V/2A
  • Power consumption: TX≤6W；RX≤5W
  • Weight: TX: 320g；RX: 310g
  • Dimensions(LxWxH): 164x107.6x23.6mm
  • Working temperature: 0~60ËšC
  • Storage temperature: -20～70ËšC
  • Humidity: 0～95%(no condensation)
  • Color: Black

Why not buy this 4K 14x28 HDMI Matrix Over Wireless LAN with iPad App today?

User Manual

Don't use EZ45 Connectors

CAT6 Installation Tips (Don't Use Patch Panels)

Why not buy this 4K 14x28 HDMI Matrix Over Wireless LAN with iPad App today?

The Ethernet switch must have an IGMP function and we use the TP-LINK TL-SL3428. Other switches also may be used if they conform to a IGMP function

Why not buy this 4K 14x28 HDMI Matrix Over Wireless LAN with iPad App today?

What Is a WolfPack Fixed HDMI Matrix Switcher?

A WolfPack Fixed HDMI Matrix Switcher is a single-chassis device that routes any HDMI source — such as a cable box, satellite receiver, streaming player, or computer — to any TV or display in a building, simultaneously and independently. Unlike an HDMI splitter (which sends one source to many screens) or a simple HDMI switch (which selects one source for one screen), a matrix switcher lets you show a different channel on every TV at the same time. HDTV Supply has sold WolfPack fixed matrix switchers to sports bars, restaurants, hotels, churches, schools, and commercial AV integrators since 2000.

Fixed vs. Modular: Which Do You Need?

WolfPack comes in two families: Fixed and Modular. Fixed matrix switchers have a set number of inputs and outputs built into one box — for example, 4 inputs × 4 outputs (4×4) or 8 inputs × 8 outputs (8×8). They are plug-and-play, rack-mountable, and the right choice when your input/output count won't change. Modular matrix switchers use a chassis with swappable I/O cards, scaling from a few ports up to 80×80 or beyond. If you know exactly how many sources and screens you need today, a fixed unit is typically lower cost and simpler to deploy.

Available Fixed WolfPack Configurations

HDTV Supply offers WolfPack Fixed HDMI Matrix Switchers in the following sizes:

  • 4Ă—2 — 4 sources to 2 displays
  • 4Ă—4 — 4 sources to 4 displays
  • 8Ă—8 — 8 sources to 8 displays
  • 8Ă—9 — 8 sources to 9 displays
  • 16Ă—16 — 16 sources to 16 displays
  • 16Ă—32 via CAT6 — extends signal up to 450 feet over CAT6 cable

Select models include built-in video wall processing, multiview, and picture-in-picture (PIP) — allowing two or more sources to display on a single screen simultaneously.

Control Options for Fixed Matrix Switchers

Every WolfPack Fixed HDMI Matrix Switcher supports multiple control methods so you can integrate it into any environment:

  • Front-panel buttons — manual source switching directly on the unit
  • IR remote control — included with most models
  • RS-232 serial control — for integration with Crestron, Control4, AMX, and similar systems
  • TCP/IP (LAN) control — send hex commands over your network from any device
  • Web GUI — browser-based interface for switching without additional software
  • Free iOS and Android apps — available for select WolfPack models

For RS-232 hex command strings and TCP/IP control protocols, see our WolfPack HEX Code Reference and TCP/IP Control Guide.

Frequently Asked Questions

What is the difference between a fixed HDMI matrix switcher and a modular HDMI matrix switcher?

A fixed HDMI matrix switcher has a set number of HDMI inputs and outputs built into a single unit — for example, 8 inputs and 8 outputs. A modular matrix switcher uses a chassis with interchangeable I/O cards, so you can configure it for many different port counts and expand it later. Fixed units are simpler and more affordable; modular units offer flexibility for larger or changing installations.

Can a WolfPack fixed matrix switcher show different channels on different TVs at the same time?

Yes. A matrix switcher routes any input to any output independently. In an 8×8 configuration, all 8 displays can show 8 completely different sources simultaneously, or multiple displays can share the same source — in any combination you choose.

Can I control a WolfPack fixed matrix switcher from a Crestron or Control4 system?

Yes. WolfPack Fixed HDMI Matrix Switchers support RS-232 and TCP/IP control, which are standard integration protocols supported by Crestron, Control4, AMX, and other third-party control systems. HDTV Supply provides hex command strings and driver documentation to support custom integrations.

What resolution do WolfPack Fixed HDMI Matrix Switchers support?

Resolution support varies by model. WolfPack fixed matrix switchers are available in 1080p (Full HD) and 4K 30Hz configurations. Select 4K models also support HDR and HDCP 2.2. Always check the individual product specification sheet for confirmed resolution, color depth, and HDCP version.

How far can I run HDMI from a WolfPack fixed matrix switcher?

Standard HDMI outputs on fixed matrix switchers support runs up to approximately 25–50 feet depending on cable quality and resolution. The WolfPack 16×32 model transmits over CAT6 cabling for distances up to 450 feet per run. For longer distances with other fixed models, HDMI extenders can be added at each display.

What is the best HDMI matrix switcher for a sports bar?

For sports bars with up to 16 TVs, a WolfPack Fixed 16×16 HDMI Matrix Switcher is a popular choice — it handles 16 independent sources (cable boxes, satellite receivers, streaming devices) and routes any of them to any TV. For larger venues with 20–80+ TVs, HDTV Supply's WolfPack Modular Matrix Switchers or AV Over IP systems are typically the better fit. Call 833-WOLFPACK (833-965-3722) for a free consultation.

Need Help Choosing?

HDTV Supply has been helping AV integrators, sports bars, hotels, and homeowners select the right matrix switching system for 25 years. Call us at 833-WOLFPACK (833-965-3722) or email kent@hdtvsupply.com and we'll recommend the right unit for your source count, display count, resolution requirements, and control system.
