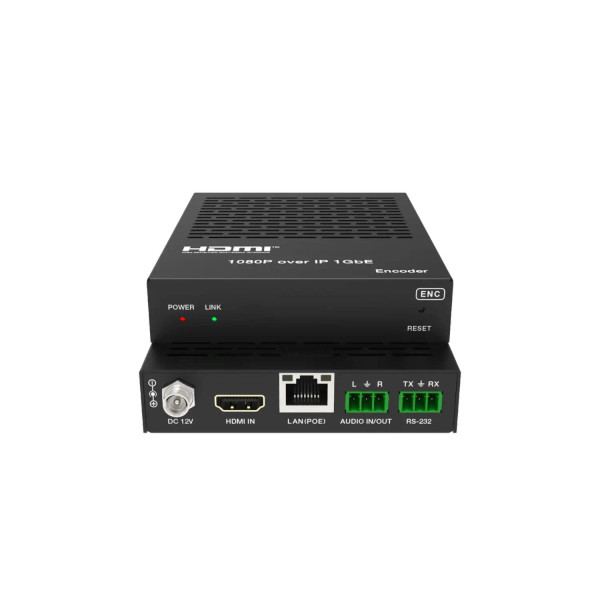

This Zenty ZT-490 1080P H.265 AV over IP with Video Wall Processing enables the distribution of multiple HD video streams to multiple HD displays over a standard 100Mbps or 1Gbps network switch. It features configurable, high-quality H.265/H.264 video compression with low bandwidth requirements and supports resolutions up to 1920×1200@60Hz (4:4:4). Video signals can be transmitted up to 328 feet (100 meters) using CAT5e/6/6A/7 cables. The system also supports analog audio embedding and extraction, RS-232 control (including pass-through and guest modes), and matrix switching via RS-232—without the need for a controller box.
Zenty ZT-490 1080P H.265 AV over IP with Video Wall Processing Features:
- High-Quality Video & Audio: Supports HDMI 1.3, HDCP 1.4, resolutions up to 1920x1200@60Hz (4:4:4), 4.95Gbps bandwidth, LPCM 2.0CH audio, and audio embedding/extracting
- Flexible Signal Distribution: Enables point-to-point extension, signal distribution, multicast, matrix switching, and video wall setups (up to 9x9) over a 1G network
- Extended Transmission Range: Transmits signals up to 328ft (100m) over CAT5e/6/6A/7 cables
- Advanced Control Options: Configurable via Web GUI, RS-232, TCP/IP, or Controller Box; supports pass-through & guest RS-232 modes and dual-stream encoding
- Efficient & Easy Installation: PoE support (802.3af, Class 3), smart networking, and intelligent video wall management for flexible deployment
