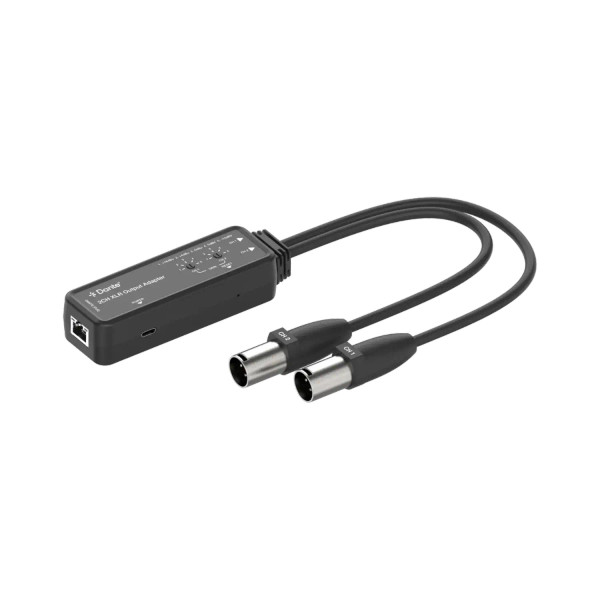

This Zenty ZT-473 Dante 2CH Analog Audio with PoE (XLR) Decoder is an audio converter based on the Dante® Ultimo 2x2 solution. It converts Dante ® 2CH digital audio into two- channel balanced/unbalanced XLR analog audio. Analog audio output supports 5-level gain adjustment.
The adapter supports local USB-C port power supply and PoE function
Zenty ZT-473 Dante 2CH Analog Audio with PoE (XLR) Decoder Features:
- Dante ® 2CH digital audio to two-channel XLR analog audio
- Balanced/unbalanced XLR analog audio output
- Dante ® audio sampling rate supports 44.1/48/88.2/96KHz@24bit
- Dante ® audio delay supports 1/2/5ms (configurable)
- Analog audio output supports 5-level gain adjustment (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv)
- Supports local USB-C port power supply and PoE function (Class 0802.3af PoE)
- Compact design for easy and flexible installation
Why not buy this Zenty ZT-473 Dante 2CH Analog Audio with PoE (XLR) Decoder from HDTV Supply today?
Zenty ZT-473 Dante 2CH Analog Audio with PoE (XLR) Decoder Specification:
- Input: Dante® 2CH digital audio
- Output: Two-channel balanced/unbalanced XLR analog audio
- Control Method: Dante® Controller
- Video Network Bandwidth: 100M
- Audio Latency: Configurable Dante® device latency (1, 2, or 5 ms configurable via Dante® Controller)
- Audio Formats:
- DANTE IN: Digital audio input, PCM 2CH, 44.1K-96KHz, 16/24bit
- XLR OUT: Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu
- Audio Parameters:
- XLR Analog Audio Out:
- Input Impedance: 600 Ω balanced, 300 Ω unbalanced
- Line Input Level (Max): +18dBu (6.15Vrms) balanced, +12dBu (3.08Vrms) unbalanced
- Frequency Response: 20Hz – 20kHz (±0.5dB)
- Dynamic Range: >100dB @ 0dBu, 1kHz A-weighted
- Audio S/N Ratio: >100dB @ 0dBu, 1kHz A-weighted
- Audio THD+N: <0.01% at +4dBu, 1kHz
- Audio Output Sync Delay: <10ms
- Transmission Distance: 328 ft / 100 m (CAT6/6A/7)
- ESD Protection: IEC 61000-4-2: ±8kV (air-gap), ±4kV (contact)
- Connection:
- Input Ports: 1 x DANTE (RJ45 connector, PoE), 1 x POWER (USB-C power only, 12-pin female)
- Output Ports: 2 x CH1/CH2 XLR OUT (female, with 30cm cable)
- Others: 1 x RESET button (system reboot), 2 x GAIN knob (5-level dip switch)
- Mechanical: Housing: Plastic enclosure, Color: Black
- Dimensions: 115mm (W) x 40mm (D) x 28mm (H)
- Weight: 173g
- Power Supply: USB input: 5V/500mA, PoE input: IEEE802.3af Class 0
- Power Consumption: 1.25W (Max)
- Operating Temperature: 32°F – 104°F (0°C – 40°C)
- Storage Temperature: -4°F – 140°F (-20°C – 60°C)
- Operating Humidity: 20% – 80% RH (non-condensing)
- Storage Humidity: 10% – 90% RH (non-condensing)
