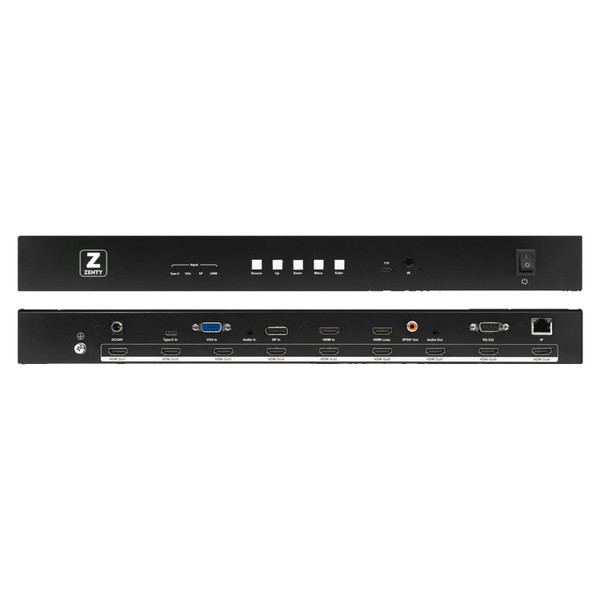

This Zenty ZT-382 3x3 4K 30Hz Video Wall Controller w/ 4 Input Interfaces is a 4K@30Hz video wall controller that provides 9 HDMI outputs for a 3x3 video wall image. It features 4 different input type ports; USB-C, VGA, DP, and HDMI, to allow for flexibility regarding connecting different types of input source devices. This video wall controller can also be cascaded to create a 3x4, 4x5, 5x6, and a maximum of 10x10 video wall image. It supports 180° output image rotation, and offers EDID management to help with video compatibility issues between the source device and displays.
Users can also take advantage of the audio extraction feature via SPDIF or 3.5mm analog audio out ports, and extract the audio from the incoming A/V signal, sending it to their favorite external sound systems. The ZT-VWC49 can be controlled via front panel buttons, included IR remote, RS232 commands, and web interface. Third party platform control is supported via RS232 port or LAN.
Zenty ZT-382 3x3 4K 30Hz Video Wall Controller w/ 4 Input Interfaces Features:
- Supports USB TYPE-C /VGA /DP / HDMI input.
- Supports 4K 3x3 video wall, cascading to create 3x4,4x5, 5X6,and max 10x10 video wall.
- Supports output image 180° rotation.
- Supports highest resolution up to 4K30HZ 4:4:4.
- Supports EDID management:Two default EDID: 4K30HZ, 1080P.
- Supports HDCP2.2/1.4.
- Supports panel button; IR remote; RS232 command and Web GUI to control.
- Supports SPDIF and Analog audio extraction
- Supports third-party platform control via RS232 port or LAN.
- 1U rack design ,easy installment.
- DC 24V 2A power supply.
- Unit size:L438x W274x H44 mm
Why not buy this Zenty ZT-382 3x3 4K 30Hz Video Wall Controller w/ 4 Input Interfaces from HDTV Supply today?
Zenty ZT-382 3x3 4K 30Hz Video Wall Controller w/ 4 Input Interfaces Specification:
- Operating Temperature Range: 0 to +40°C (32 to +104°F)
- Operating Humidity Range: 5 to 90 % RH (no condensation)
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Video Format Supported: Ultra HD TV/FHD TV: 4K @ 30Hz / 1080P
- Audio Format Supported: LPCM 16 bit 24bit 44.1KHz, 48KHz
- Input Ports: 1x USB TYPE-C, 1x DP, 1x VGA, 1x HDMI
- Output Ports: 9x HDMI, 1x HDMI Loop out
- Splitter Mode: 1x 9 HDMI Splitter
- Video Wall Mode: 1x1; 1x3; 1x4; 2x2; 2x3; 2x4; 3x1; 3x2; 3x3; 4x1; 4x2; 4x3-1; 4x3-2; 3x4-1; 3x4-2; 4x4-1; 4x4-2
- Cascade Video Wall Mode: 4x3; 4x4; 5x5; 6x6; etc. Max 10x10
- Control Way: Panel control; Web control; Remote control; RS232 control
- Power Consumption: 33 watts (Maximum)
- Dimension (mm): L438 x W274 x H44
