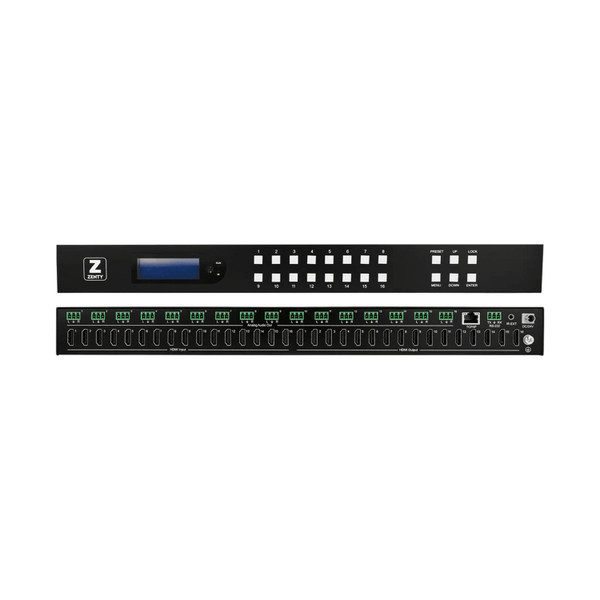

This Zenty ZT-226 16x16 4K 60Hz HDMI Matrix Switcher with Audio Routing that can support up to 4K 60Hz resolution, and has support for HDR, HDR10, and Dolby Vision. 16 Analog (3-pin phoenix) ports are available for audio routing, while the 4K > 1080P downscaling feature ensures that you can mix and match displays of different resolution within the setup without any hassle.
Control the ZT-MT16AR via front panel buttons, IR remote, RS232 PC software, TCP/IP control via web-based interface, and utilize our Crestron drivers to integrate it with your control system. Packed with a ton of features, the ZT-MT16AR is the perfect companion for any residential or commercial audio/video distribution center.
Zenty ZT-226 16x16 4K 60Hz HDMI Matrix Switcher with Audio Routing Features:
- 16 x HDMI Inputs | 16 x HDMI Outputs
- HDMI 2.0 | HDCP 2.2 / 1.4 compliant
- HDR | HDR10 | Dolby Vision support
- Digital audio; LPCM up to 7.1, Dolby Digital, Dolby Atmos etc.
- 16 x Analog Audio (3-pin phoenix port) Matrix
- Supports ARC (audio return channel)
- 4K > 1080P downscaling feature
- Smart EDID management
- FW updating through RS-232 port
- Control via: Front panel buttons & LCD | IR remote control | RS232 control | TCP/IP control | Crestron drivers available
Why not buy this Zenty ZT-226 16x16 4K 60Hz HDMI Matrix Switcher with Audio Routing from HDTV Supply today?
Zenty ZT-226 16x16 4K 60Hz HDMI Matrix Switcher with Audio Routing Specification:
- Operating Temperature Range: -5 to +40°C (23 to +104 °F)
- Storage Temperature Range: -10 to +60°C (-14 to +140 °F)
- Operating Humidity Range: 5 to 90 % RH (no condensation)
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Bandwidth: 18G
- Video Format Supported:
- 4K@60Hz, YUV4:4:4 8bit
- 4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i
- HDCP Compliant: HDCP 2.2 and HDCP 1.4
- Output Video: HDMI 2.0 Version
- Audio Format Supported: LPCM up to 7.1, Dolby Atmos and DTS-X Atmos
- Power Consumption: 80watts (Max.)
- Dimensions: L438 x W334 x H44 mm / 17.2 x 13 x 1.7 inches
- Mass (Main Unit): 5.38 KG / 11.86 lbs.
