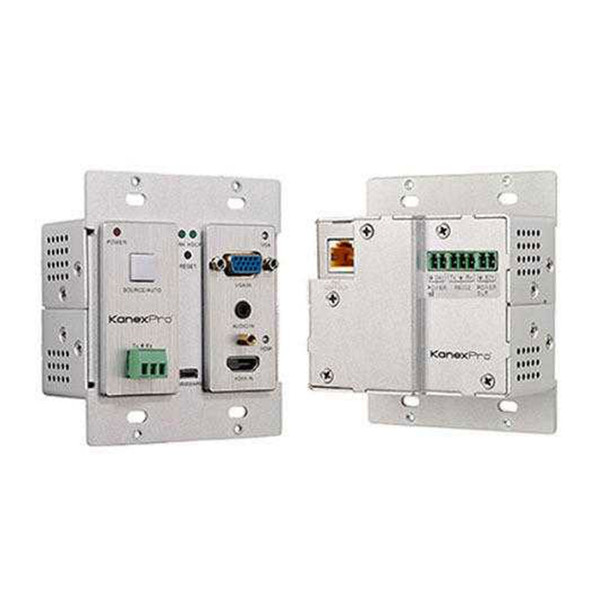

KanexPro WP-HDBASETX HDBaseT Wall Plate Transmitter

KanexPro

Call for availability

Part Number:
WP-HDBASETX
UPC:
814556017562
Availability:
Usually ships the same business day
1:
HDBaseT Wall Plate Transmitter w/VGA + HDMI 4K scaler
2:
Auto Switch, Extend & Control HDMI & Analog video signals up to 230 feet (70m)
3:
Free Shipping & Free 3-Year Warranty
4:
Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support
KanexPro HDBaseT Wall Plate Transmitter w/VGA + HDMI 4K scaler

The KanexPro WP-HDBASETX HDBaseT Wall Plate Transmitter w/VGA + HDMI 4K scaler is a compact 2-input transmitter for sending HDMI or 15-pin HD analog video, audio and control up to 230 feet (70m) over a shielded CAT6. This Decora style 2-gang wall plate also supports PoE (power over Ethernet) to the receiver.

Based on HDBaseT technology, this wall plate extender is HDCP and EDID compliant ensuring proper output to displays.

Applications:

Ideally used in classrooms, lecture halls, boardrooms, where HDMI and/ or analog VGA based source devices are combined to present high-resolution signals up to 4K.

Do not use couplers between the RJ-45/ CAT6 cables, this will cause degradation or damage to the unit. To reduce video dropout problems from lightings, ceiling fans and other EMI issues, it is strongly recommended that you terminate shielded CAT6 or CAT5e cables and use shielded RJ45 connectors with our extender products.

HDTV Supply is proud to be a Kanex Pro Authorized Reseller and provide a 3-YEAR WARRANTY at no cost to you. HDTV Supply also will Price Match if you find a lower price from an Authorized Kanex Pro Reseller conforming to the specs on this product page. All Kanex Pro products come with insured FREE SHIPPING together with Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support.

KanexPro HDBaseT Wall Plate Transmitter w/VGA + HDMI 4K scaler Features:

  • Transmits HDMI or analog video, control, and analog audio up to 200 feet (70 meters) over a shielded CAT6 cable
  • Auto-switching between inputs
  • Supports computer and video resolutions up to 1920x1200, including 1080p/60 and 4K
  • Remote power supporting PoE
  • HDCP & EDID compliant
  • RS-232 for control
  • Supports high bandwidth up to 10.2 Gbps
  • Locking HDMI connector
  • High grade aluminum design for commercial grade applications

Why not buy this KanexPro HDBaseT Wall Plate Transmitter w/VGA + HDMI 4K scaler today?

KanexPro HDBaseT Wall Plate Transmitter w/VGA + HDMI 4K scaler Specifications:

  • Input Signal: 1 x HDMI (female), 1x VGA(female), 1x Audio (3.5mm Mini jack)
  • Input Connector: 1 x HDMI, 1x VGA, 1 x 3.5 mm mini-jack and 1 x RS-232 Connector
  • HDMI Video Signal: HDMI1.4
  • Audio: Digital audio transmitted through HDMI audio & VGA thru 3.5mm Stereo Jack
  • Output Signal: 1 x HDBaseT
  • Output Connector: 1 x RJ-45
  • Resolutions supported:
    • VGA outputs resolution up to: 1080p
    • 800x600 to 1920x1200
    • 3D formats
    • 4K x 2K for HDMI
  • Transmission Mode: HDBaseT Lite Technology
  • General:
  • Resolution Range:
  • From 800x600 ~ 1920x1200, 4K
  • Transmission Distance:
  • Maximum distance: 197 feet (60 Meters)
  • Gain: 0dB ~ 10dB@100MHz
  • Differential Phase Error: 10 @ 135MHz_100M
  • SNR: >70dB@ 100MHz-100M
  • Bandwidth: 10.2Gbps
  • Return Loss: <-30dB@5KHz
  • THD: <0.005%@1KHz
  • Min. ~Max. Level <0.3V ~ 1.45Vp-p
  • Impedance: 75Ω
  • Temperature: -20 ~ +60?
  • Humidity: 10% ~ 90%
  • Power Supply: 24V DC
  • Power Consumption: 9.6 Watts
  • Unit Dimension: W.H.D: 104.5 x 89 x 44 mm
  • Net Weight: 1.76 lbs (0.8Kg)
  • Chassis Dimension: Universal Decora Style 2-Gang Wall plate
  • Helpful Tips & Recommendations:
    • CAT-5e/6a cables should not exceed 230 feet or (70m)
    • Solid Core Shielded twisted pair cable recommended
    • Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
    • Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).
    • Do not use crossover cables, patch cables or Ethernet couplers to extend two CAT6 cables. This may damage the TX & Rx.
    • If the power LED indicator on the Tx/Rx unit is not on, check to make sure that the CAT6 cables are not crossed i.e., Ethernet to Link instead of Ethernet to Ethernet.
Warranty HDTV Supply includes a 3 Year Limited Warranty on all Kanex Pro products. The warranty states that (a) its products (the will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the Product will be free from defects in materials & workmanship under normal use & service for a period of 3 years. In order to get a warranty replacement for a defective item, HDTV Supplys and Kanex Pros Support Team will verify the product is eligible for warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested and all components included. HDTV Supply also sells a 5 Year Extended U.S. Warranty for this Long-Runner HDMI 100M Extender. Please go to Extended Warranties or see the above Options to purchase it.
