4K 60 4:4:4 16x16 SDVoE HDMI Matrix Switch Over LAN with Video Wall & HDR10

WolfPack

$20,800.00
Part Number:
4K6016x16LAN
UPC:
796168585915
Availability:
In Stock
1:
4K 60 16x16 SDVoE HDMI Matrix Switch via LAN
2:
4:4:4 at 18GBPS & 100ms Switching
3:
HDR10, Dolby Vision, HDMI 2.0 & HDCP 2.2
4:
Zero Frame Latency & Zero Compression
5:
Selectable Resolutions: 720p to 4K
6:
Video Wall Processing w/Bezel Correction
ADD OPTIONS:
WolfPack HDMI ExtendersHDTV Supply's WolfPack™ 4K 60 16x16 SDVoE HDMI Matrix Switch Over a LAN is a network AV encoder/decoder system with both HDMI & DisplayPort female connector inputs that support up to 4K 60Hz 4:4:4, 18 GBPS & HDR. It is designed for HDMI/DP transmissions over an IP SDVoE network with external audio & control signals at distances up to 330 feet over CAT6/7 copper cables from the Ethernet switch. It works with one control PC (Wake on LAN) & 10GbE SDVoE Switchers to control its variety of its built-in functions.

The WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN features uncompressed video with zero-latency from encoder to decoder, seamless switching, Video wall functions, 10G Ethernet, IR, RS232, audio embedding/de-embedding, audio down-mixing, and more. The control PC merges all the functions into a Web-GUI meaning that the user control system functions over multiple OS which then can support any browser anywhere on the same local area network. Compared with traditional HDBaseT matrix AV Switching, the WolfPack™ SDVoE 4K 60 16x16 HDMI Matrix Switch Over a LAN features easy installation, more interoperability and increased flexibility. It is ideal for distributing AV over a 10 Gigabit SDVoE Ethernet switch in enterprises and other large-scale installations.

The WolfPack™ 4K 60 16x16 SDVoE HDMI Matrix Switch Over a LAN provides one of the most advanced IP Streaming solutions on the market utilizing AptoVision BlueRiverTM NT+ technology, which synergizes various IP/AV standards to work together as one. It combines a variety of 4K IP technologies and features under one unified protocol controlled by a simplified single WEB GUI.

These 4K 60 SDVoE 4:4:4 HDMI Matrix Switchers Over IP Feature:

  • Uses the latest SDVoE technology
  • 4K 60 HDMI Over LAN w/Video Wall Processing
  • 4:4:4, 10GBPS and HDCP 2.2
  • IR, WEB GUI & RS232 Control
  • HDR10 & Dolby Vision compatible
  • In & out CAT6 lengths to ~300 feet
  • Audio Embedding and De-embedding
  • No latency
  • No compression
  • 100ms Seamless Switching
  • Zero-latency AV-over-IP solution for AV equipment (under 100 microseconds / 1/150th of a video frame)
  • Full stack, 7-later solution - providing an approach to every layer of the OSI (Open Systems Interconnection) network model from physical infrastructure to API (application programming interface)
  • Comprehensive API provides simple interface to control complex AV system tasks such as video routing, scaling, aspect ratio management, video wall processing, image compositing, audio downsizing, etc.
  • Fully uncompressed transmission for HD and 4K AV signals
  • Multi-channel audio and independent audio routing
  • RS-232 and IR control signal support
  • 1Gbps embedded Ethernet support
4K/60 16x16 Network HDMI switch SDVoE Configuration:
  • 16 - 4K/60 SDVoE HDMI Transmitters (TX) + their AC Adapters
  • 16 - 4K/60 SDVoE HDMI Receivers (RX) + their AC Adapters
  • 1 - 10 GBPS SDVoE Network Ethernet Switch (Not Supplied)
  • Field expandable by simply buying more TVs, sources and SDVoE Transmitters and SDVoE Receivers

WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN Features:

  • Streams uncompressed video with zero-latency, audio and control, with the flexibility of transmitting them together or to separate network destinations.
  • Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4 8bit and 1080P 3D.
  • 18Gbps high bandwidth and supports HDR 10 and Dolby Vision.
  • Supports distances up to 330 feet over CAT6/7 copper cables from in and out of the Ethernet switch
  • Automatically detects and switches HDMI and DP inputs.
  • Transmits and receives RS232 and IR to any units by using an Unicast or Broadcast IPV4 protocol or local control by an API server.
  • Our WolfPack family is HDCP 2.2 compliant from encoder (TX) to the decoder (RX).
  • Allows a video source to be stretched across multiple displays.
  • Seamless switching between different encoder with selectable output resolutions up to 4K 60 & with a scaling ability.
  • Encoder route HDMI audio, external audio as an independent streaming for decoder embedding.
  • BlueRiver NT+ Series is compatible with SDVoE, offering zero-latency AV-over-IP with true 4K/60 and video processing.
  • AptoVision BlueRiverTM NT+ technology. NT1000 chip is implemented in the transmitter and NT2000 chip is implemented in the receiver.
About 10G Networks: Unlike traditional AV extension technology such as HDBaseT where transmitters and receivers are connected point to point or joined together using a custom matrix switch, transmitters (TX) and receiver (RX) units based on BlueRiver NT and NT+ technology are interconnected using standard of the shelf 10G Layer 2/3 network switches. This flexibility in signal routing enables multiple applications including: matrix switching, scalers and video-walls.

Through this architecture all signals are now packed into data packets that are independently routed. Not only does this allow sending data from one transmitter to one receiver (1 to 1) or one transmitter to many receivers (1 to many). An added benefit of packet data transmission is that each signal type (video, audio, RS232 etc.) is routed independently and not necessary to the same destination. As an example, HDMI video received by particular Transmitter goes to 4 Receivers, while the audio goes to all receivers.

Why not buy this WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN today?

HDTV Supply's implementation of the SDVoE technology replaces the traditional matrix switch with a more flexible, scalable, reliable and more affordable solution. Ethernet ports are bidirectional so you no longer have to consider inputs vs. outputs...just how many ports you need. Ethernet switches can be stacked and scaled to thousands of ports.

Also, our SDVoE processing engines are capable of powerful video manipulations such as scaling, cropping and stretching. These basic processing blocks can be used to create video walls of arbitrary size and shape. Software tells each receiver its position in an array, and the correct image is displayed on the screen. An added benefit is that SDVoE receivers know how to keep all wall outputs perfectly synchronized. The result is easy-to-implement video walls with no extra cost on top of your switching and distribution system.

WolfPack™ 4K/60 SDVoE HDR HDMI Over IP Specification:

  • WolfPack™ 4K/60 SDVoE HDR HDMI Over IP Transmitter:
    • Extension, IP switching and processing
      • All HDMI 2.0 formats including
        • 4K/60 8-bit 4:4:4
        • 4K/60 10-bit 4:2:2
        • High dynamic range content (HDR10)
      • Multichannel digital audio embed, de-embed and transport
      • 10/100/1G Ethernet (internal GbE switch)
      • Bidirectional RS-232, IR and USB 2.0
    • Independent, breakaway routing of each signal type (audio, video, data, control) through standard Ethernet switches
    • Zero-latency operating mode (0.1 milliseconds)
    • Extension to 100 meters on category cable (via 10GBaseT PHY) or 30 kilometers on fiber (via SFP+ module)
    • System level HDCP 2.2 / HDCP 1.2 digital content protection support (via external transceiver)
    • All 3D video modes including frame packing, top-bottom, field/line alternative, side-by-side and 2D + Depth

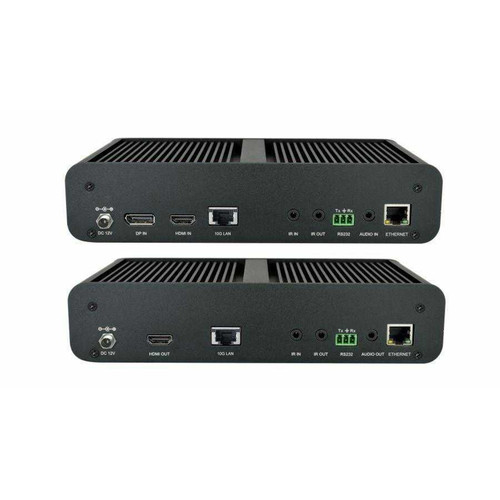

    • Video Input: (1) HDMI, (1) DP
    • Video Input Connector: (1) Type-A female HDMI, (1) DisplayPort
    • HDMI Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
    • DP Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
    • Audio Input: (1) AUDIO
    • Audio Input Connector: (1) 3.5mm jack
    • Control: (1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232, (1) ETHERNET
    • Control Connector: (2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
  • WolfPack™ SDVoE 4K/60 HDR HDMI Over IP Receiver:
    • Video Output: (1) HDMI
    • Video Output Connector: (1) Type-A female HDMI
    • HDMI Output Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
    • Audio Output: (1) AUDIO
    • Audio Output Connector: (1) 3.5mm jack
    • Control: (1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232, (1) ETHERNET
    • Control Connector: (2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
  • WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN General Info:
    • External Power Supply: Input: AC 100~240V, 50/60Hz, Output: 12V DC 2A
    • Power Consumption: TX:19W (Max), RX:21W (Max)
    • Operation Temperature: -10˚C ~ +55˚C
    • Storage Temperature: -25˚C ~ +70˚C
    • Relative Humility: 10%-90%
    • Dimension (W*H*D): 224.0mm x 49.2mm x 110.0mm
    • Net Weight: TX:1.15KG; RX:1.18KG

4K/60 SDVoE HDR HDMI Over IP Contents:

4K/60 HDR HDMI Over IP Transmitter
  • 16 - WolfPack™ SDVoE 4K 60 16x16 HDMI Matrix Switch Over a LAN Transmitter (Encoder)
  • 32 - Mounting Ears with 6 Screws
  • 64 - Plastic Cushion
  • 16 - 3-pin Terminal Block
  • 16 - Power Adapter (12V DC 2A)
  • 16 - User Manual
4K/60 SDVoE HDR HDMI Over IP Receiver
  • 16 - WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN Receiver (Decoder)
  • 32 - Mounting Ears with 6 Screws
  • 64 - Plastic Cushion
  • 16 - 3-pin Terminal Block
  • 16 - Power Adapter (12V DC 2A)
  • 16 - User Manual

Why not buy this WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN today?

4K/60 HDR HDMI Over IP User Manuals

Why not buy this WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN today?

Software

Why not buy this WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN today?

SDVoE is a game-changer. It turns the potential benefits of 4K/60 AV over IP that have been talked about into tangible, measurable reality, by sweeping away the limitations of previous attempts to deliver pixel-perfect, zero-latency high-quality video: easily, flexibly, getting rid of the complexity of previous AV approaches.

Furthermore, it has already got a robust set of supporting manufacturers, adopters and contributors who view it as the platform for the next generation of AVoIP distribution.

Why not buy this WolfPack™ 4K 60 SDVoE 16x16 HDMI Matrix Switch Over a LAN today?

The SDVoE platform allows system designers and integrators to enable and develop new applications to provide 'virtual' matrix switches, KVM switches, videowall controllers and multi-view image processors. Therefore, SDVoE technology will create new classes of AV control applications, eliminating the need for matrix/switch/control hardware devices.

Q: What is SDVoE?
A:
We recommend that SDVoE Ethernet switchers only be used with these 4K/60 HDR HDMI Over IP Transmitters and Receivers.

SDVoE = Software Defined Video Over Ethernet. It is universally acknowledged that the transition of the AV industry to IP-based solutions is inevitable. Moving AV distribution to IP offers the possibility to create dramatically new architectures and entirely new user experiences. However, too many different approaches exist and are confusing the market and customers. Furthermore, many technologies simply fail to meet the performance needs of pro AV. For these reasons, adoption of AV over IP has been slow.

The SDVoE Alliance is bringing leading companies in the space together around a standardized hardware and software platform. The SDVoE platform will disrupt the pro AV industry by enabling applications that were previously unrealizable. All AV distribution applications that demand zero-latency, uncompromised video can benefit from SDVoE technology. SDVoE network architectures are based on off-the-shelf Ethernet switches thus offering substantial cost savings and greater system flexibility and scalability over traditional approaches. Markets that benefit from SDVoE technology include education, healthcare, enterprise, entertainment, hospitality, retail, houses of worship, government, military, industrial and security.
