HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It

HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It
HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It

HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It - Extra Image 1HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It - Extra Image 2HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It - Extra Image 3
HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It
HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It
HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It

HDMI Matrix Switch Over Coax w/80-Selectable Frequency Channels

Extends HDMI up to 1,500 feet with one coaxial cable per TV

Pick Qty of HDMI Transmitters & HDMI Receivers to meet your needs

TVs must have HDMI inputs

Order Information
Part Number:hdmi-matrix-switch-over-coax
Pick required passive input coax splitter:
Pick required passive coax output splitter:
10dB coax attenuators for <300' input:
Pick required HDMI to coax transmitters:
Pick required Coax to HDMI receivers:
$5 ea. HDMI cables for above Extenders:
Price:$100.00
Availability:Usually ships the same business day
30 Day Returns
Live U.S. Telephone Tech Support
Same Day Shipping
135,000+ Items Shipped
100% Safe SSL Shopping
Choose From Over 4,000 Items
60,000+ Happy Customers
Over 6,800 ✭✭✭✭✭ Reviews
Free Lifetime Tech Support

Quantity:


HDTV Supplys HDMI Matrix Switch Over Coax extends a single HDMI video and stereo audio signal to dozens of widescreens over a signal point-to-point coax cable to TVs that can be 1,500 feet away. The HDMI Matrix Switch Over Coax provides digital coding processing for HDMI signal with our DTV technology. The HDMI to Coax Splitter adopts our RF modulation technology to transmit the one HDMI signal up to 80 - TVs via a coaxial cable per the TVs HDMI input. No fiber and no special training required as well as you don't have the limitations on distance like you find in HDMI cabling and HD-SDI systems.

This HDMI Matrix Switch Over Coax is designed to convert an HDMI source to an HD digital signal via a coaxial cable. This conversion is different than standard CATV as it uses 64QAM mode to convert the HDMI source to a HD digital TV signal. This type of signal can transmit over long distances on coaxial cable, and gives the user the ability to split and combine several signals with a common CATV splitter/combiner. With the advantages of good image quality, resistance to interference, and hundreds of channels available, it can be used in many applications including: CCTV, outdoor projection screens, shopping malls, advertising, etc.

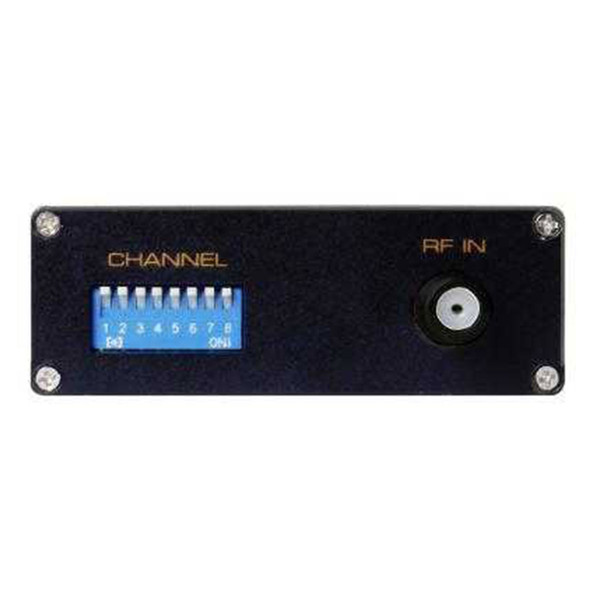

You set it once with the DIP switches and change the DIP switches when you want to send different sources to different TVs.

By adding the above DTV network mixers (coax splitters) attached in line with the RF cable you can achieve many different kinds of transmission modes like similar to an HDMI splitter operating over 1,500 feet. For example you could configure a 1x25 HDMI splitter for one PC going to 25 widescreens up to 1,500 feet away by wiring one coax cable per TV.

NOTE 1: The HDMI transmitters are very powerful so it can be part of the system to go 1,500 feet. If your distance from your source device(s) are 300 feet, or less, to the passive coax splitter you will need the above 10dB attenuators on each transmitter coax cable. If you need more info, call us.

Our HDMI Matrix Switch is a true HDMI matrix switch allowing any input to be routed to any outputs or the same input to be routed to all outputs, or any of the millions of combinations. See the above FAQ for examples.

What set this HDMI Matrix Switch Over Coax apart from other HDMI Matrix switchers?

  • The source devices can be over 1,000 feet away from the TVs
  • You probably can use the home run coax cables already installed
  • You set it once with the DIP switches and change the DIP switches when you want to send different sources to different TVs
  • The cost is very low like a 16x16 HDMI matrix is ~$3,500
NOTE 2: The matrix setup using multiple transmitters and multiple receivers is setup via the 8-DIP switches on each unit. The HDMI Matrix Switch Over Coax cannot be controlled any other way.

HDMI to Coax Splitter Features:

  • Contains any number of transmitters (TX) and any number of receivers you pick plus their AC adapters.
  • Support HDMI resolution up to 1080P/60Hz.
  • The transmission distance up to 500 meters by SYV-75-5 coaxial cable without thew need of amplification.
  • Supports 80 channels for option with frequency ranges of 139MHz to 950MHz.
  • Products using the broadcast signal transmission mode, only one line can transmit 48 channels of high-definition video signal at the same time.
  • The use of digital TV communication protocol, anti interference and error correction capability is very strong.
  • Installs in minutes. Analog monitor system upgrade to HD systems can continue to use the original connector and cable.
  • Includes DC5V/1A power adapters

HDMI to Passive Coax Splitter Specs:

  • The coax bi-directional splitters provide a 1 GHz bandwidth and are ideal for this application.
  • Comes in various number of outputs, see the above Options.

Why not buy this HDMI to Coax Splitter today?




HDMI to Coax Splitter FAQ:

  1. In normal conditions the transmission distance w/o amplification can be up to 500 meters or 1,500 feet using SYV-75-5 coaxial cables
  2. The signal strength will become weakened after adding DTV network mixers and multiple outputs as used in splitter and matrix applications.
  3. If the signal frequency is high, the transmission attenuation is greater. So choose low channel for long-distance transmission.
  4. When the transmission distance is short (less than 100 meters or 33 feet) the signal may be too strong and the receiver will protect the strong signal and display "NO SIGNAL" to the display. If that is the case you should choose a higher channel via DIP switches or add an attenuator in line with the coaxial cable for signal attenuation.
Our HDMI to Coax Splitter offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

HDMI to Coax Splitter Specs:

  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • HDMI Audio Format: LPCM
  • HDMI Max bandwidth: 225MHz
  • HDMI Max baud: 6.75Gbps
  • Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
  • Input/Output DDC signal: 5Volts p-p (TTL)
  • RF frequency range: 139~950 MHz
  • RF Channel B/W: 7/8 MHz
  • The number of Channel: 80
  • RF Output power: -6dBm
  • RF Connector type: The imperial F type/BNC
  • Coaxial cable Characteristic impedance: 75Ω
  • RF transmission distance: ≤500m SYV-75-5 coaxial standard cable
  • HDMI output cable distance: ≤35 feet with AWG22 HDMI cable
  • TX Max working current: 650Ma
  • RX Max working current: 500mA
  • Power adapter format Input: AC 100V~240V 50HZ/60Hz, DC5V/1A
  • Operating Temperature range: -10 to +45℃
  • Storage Temperature range: -20 to +60℃
  • Operating Humidity range: 10 to 90%RH (No Condensation)
  • Storage Humidity range: 5 to 95%RH (No Condensation)
  • Case Dimension (L x W x H): 94x74x28 (mm)
  • Weight: 240g

HDMI to Coax Splitter Contents:

  1. Transmitter: 1
  2. Receiver: Pick the number you need
  3. AC power adapters
  4. User manual

Why not buy this HDMI to Coax Splitter today?





WolfPack 4K 16-16 HDMI Matrix Switcher - Card Cage Design
WolfPack 4K 16-16 HDMI Matrix Switcher - Card Cage Design

Price: $14,999.95Today's price: $5,499.95
(You Save: 63%)
WolfPack 4K  8-16 HDMI Matrix Switcher - Card Cage Design
WolfPack 4K 8-16 HDMI Matrix Switcher - Card Cage Design

Price: $12,999.95Today's price: $4,999.95
(You Save: 62%)
8x16 HDMI Matrix Switch Over Coax Cables to 1,500 Feet
8x16 HDMI Matrix Switch Over Coax Cables to 1,500 Feet

Price: $4,999.95Today's price: $2,499.95
(You Save: 50%)
16x16 HDMI Matrix Switch Over Coax Cables to 1,500 Feet
16x16 HDMI Matrix Switch Over Coax Cables to 1,500 Feet

Price: $7,499.95Today's price: $3,499.95
(You Save: 53%)




Q: Does this HDMI to Coax Splitter have a remote control?
A:
No, its inputs and outputs are set with the DIP switches on the side of each transmitter and receiver. When used as an HDMI splitter all DIP switch settings will be the same.

Q: What are the benefits of different frequencies?
A:
The HDMI to Coax Splitter supports 80 channels of frequency ranges from 139MHz to 950MHz. If you use many transmitters and many receivers, only the transmitter and receiver have the same frequency as it can receive the signal. This function and anti-interference and error correction allows the unit to work flawlessly.

Q: Any tips you can give me on the install?
A:
In-house and existing passive splitters drop the signal strength in half, or more, so delete all of the splitters and wire this device directly as it won't work with coax splitters. They should NOT be used in conjunction with connector adapters, signal processors, switches or amplifiers between the Source and Display device. This HDMI to Coax Splitter sends only one HDMI signal to a TV with the receive unit at the TV. It does not work any other way. If you are trying to send one coax signal to a TV with an HDMI input it won't work. One set includes a transmitter and a receiver set. Think of it as a long HDMI cable.

Q: I need to send a cable box to 12-widescreens over 200 feet away, what do I buy?
A:
You will need one 1x16 coax splitter and 12-receivers plus all cables (not supplied). The single HDMI to coax transmitter comes with it.

Q: I have 5-TVs...1-TV 6 feet away, 1-TV 75 feet away, 2-TVs 150 feet away and 1-TV 225 feet away, what do I buy?
A:
You will need one 1x8 coax splitter and 5-receivers plus all cables (not supplied). The single HDMI to CAT5 transmitter comes with it.

Q: I need to send a PC to 16-widescreens 150 feet away with all showing the same picture, what do I buy?
A:
You will need one 1x16 coax splitter and 16-receivers plus all cables (not supplied.

Q: Sometimes we see a message on the screen “Searching for TX”, what is that?
A:
That usually happens when the source is turned off or in a standby mode with the HDMI connector not outputting any signal. The (TX) transmitter is looking for a hot HDMI signal on its input.

Q: Does this HDMI to Coax Splitter support 3D or 4K?
A:
No.

HDTV Supply includes a 1 Year Limited Warranty on this HDMI to Coax Splitter. The warranty states that (a) its HDMI to Coax Splitter will perform substantially in accordance with the accompanying written materials for a period of 1 year from the date of receipt and (b) that the HDMI to Coax Splitter will be free from defects in materials & workmanship under normal use & service for a period of 1 year. In order to get a warranty replacement for a defective item, HDTV Supplys Support Team will verify the product is eligible for warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested and all components included.

HDTV Supply also sells a 3 and 5 Year Extended Warranty for this HDMI to Coax Distribution Set. Please go to Extended Warranties or see the above Options to purchase it.

Why not buy this HDMI to Coax Splitter today?


HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It
HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It
HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It

Questions & Answers


Ask a question about the HDMI Matrix Switch Over Coax to 1,500 Feet - You Design It or Call 800-841-9238

Your email:
Your question:


Here is an example of setting up an HDMI matrix over coax.

EXAMPLE 1: We have 1-DirecTV satellite receiver and 1-DVD player connected to 4-widescreens that have 500 feet home run RG6 Quad-shield coax cables between the matrix and the widescreens. You will need the users manual for this.
  1. Set the DirecTV HDMI transmitter to CHANNEL 1 ID (00000001)
  2. Set the DVD player HDMI transmitter to CHANNEL 2 ID (00000010)
  3. Set widescreens 1 and 3 HDMI receivers to CHANNEL 1 ID (00000001)
  4. Set widescreens 2 and 4 HDMI receivers to CHANNEL 2 ID (00000010)
You now have set up the following:
  1. The DirecTV is now displaying on widescreens 1 and 3
  2. The DVD is now displaying on widescreens 2 and 4
EXAMPLE 2: In another example we will have 1-DirecTV satellite receiver connected to 4-widescreens that have 500 feet home run RG6 coax cables between the matrix and the widescreens.
  1. Set the DirecTV HDMI transmitter to CHANNEL 1 ID (00000001)
  2. Set the 4-widescreens HDMI receivers to CHANNEL 1 ID (00000001)
You now have the DirecTV displaying on all 4-widescreens as you have changed the frequency to match the DirecTV transmitter box. The important thing to know is if you are constantly changing ins and outs the HDMI transmitters and receivers DIP switches must be accessible as this is the only way to control the coax matrix. Its design is best used where changing ins and outs is minimum. Full control HDMI matrix switchers operated via a remote control or front panel controls can be seen the the above SIMILAR tab.

Hard to understand, do this...hand draw a diagram of the source devices on the left, the matrix in the middle and the widescreens on the right. Mark the cable lengths and what source you want to go to what widescreen. That will get you close to how to set the DIP switches (frequencys). You have 80-input and output frequencys available to you.

Still confusing? Just call tech support at 800-841-9238 or email us at support @ hdtvsupply . com
