KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support

KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support
KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support

KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support - Extra Image 1KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support - Extra Image 2KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support - Extra Image 3
KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support
KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support
KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support

4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support

Digital Audio & IR over single CAT6a

100 meter - HDMI Extender over HDBaseT with IR, 4K Support and PoE

Free Shipping & Free 3-Year Warranty

Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support

Order Information
Part Number:EXT-HD100MHBT
Price:$499.95
Availability:Usually ships the same business day
30 Day Returns
Same Day Shipping
135,000+ Items Shipped
100% Safe SSL Shopping
61,000+ Happy Customers
Free Lifetime Tech Support
Over 7,600 ✭✭✭✭✭ Reviews
Choose From Over 4,000 Items
Live U.S. Telephone Tech Support

Quantity:


KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support

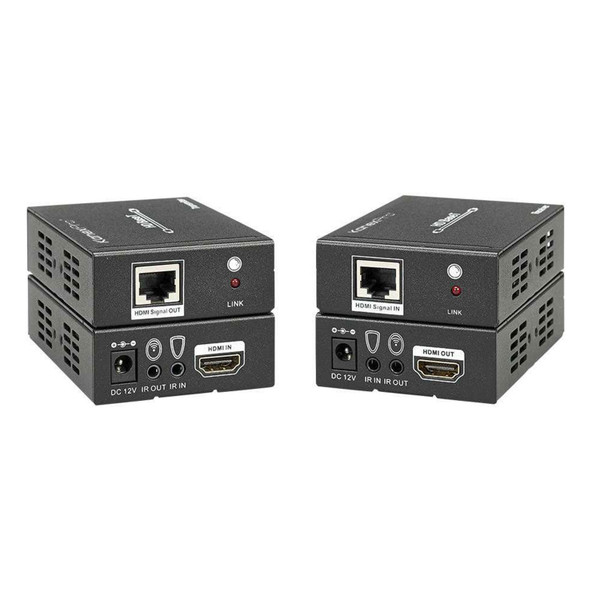

This KanexPro EXT-HD100MHBT 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support Long-Runner employs HDBaseT technology to route high-resolution HDMI signals from the source up to 330 feet (100m) to your HD display. It supports resolutions up to 4Kx2K (4 times the 1080p), multi-channel audio and IR extension over a single low cost CAT5e/6 cable.

Fully compliant with HDCP, EDID and CEC controls, the Long-runner HDMI extender is an ideal solution for HDMI extension over long distances.

Please note: This extender supports power over Ethernet, from either the Tx side or Rx side, and comes with only one power supply.

HDTV Supply is proud to be a Kanex Pro Authorized Reseller and provide a 3-YEAR WARRANTY at no cost to you. HDTV Supply also will Price Match if you find a lower price from an Authorized Kanex Pro Reseller conforming to the specs on this product page. All Kanex Pro products come with insured FREE SHIPPING together with Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support.

KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support

  • Extend HDMI signals up to 330 ft. (100m) on single CAT6 cable
  • Supports Power over Ethernet from Tx or Rx
  • 4K x 2K@30Hz Ultra HD resolutions
  • Infrared Signal Input/Output, embedded over extension
  • Supports resolutions from 1080p/60@48bit
  • High bandwidth up to 10.2 Gbps
  • Enables 3D pass-through
  • Supports CEC pass-through
  • HDCP and EDID compliant
  • Audio support: Dolby TrueHD & DTS Master Audio, 7.1 compliant
  • Uncompressed audio support such as LPCM
  • Front panel-LEDs for link activity and HDCP authentication
  • Locking power suppy & HDMI connectors
  • One external power supply 24V DC included

Why not buy this KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support today?




KanexPro 4K UHD & HDBaseTTM 100-Meter HDMI® Extender w/ PoE Support

  • Interface:
    • Transmitter
      • Input: HDMI
      • Output: HDBaseT (Cat 5e/6)
    • Receiver
      • Input: HDBaseT (Cat 5e/6)
      • Output: HDMI
  • Video Amplifier Bandwidth: 10.2 Gbps all channel
  • Vertical Frequency Range: 50/60Hz
  • IR Carrier Frequency Range: 33-55kHz at 5 volts
  • Resolutions (HDTV): 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 4K /30Hz
  • Computer Resolution: WUXGA (1920x1200)
  • Transmission Distance & Resolutions:
    • For 100 meters: up to 1080p @60Hz36bit, 3D1080p@30Hz36bit
    • For 70 meters: up to 1080p @60Hz@48bit, 1080p @120Hz@24bit, 3D 1080p@60Hz@36bit, 4K x 2K@30Hz@24bit
  • Power: 24V DC
  • Power Consumption: 9W (Maximum)
  • Regulatory Approvals Converter: FCC, CE, UL
  • Regulatory Approvals Power Supply: FCC, CE, UL
  • Dimensions: 3.93”x2.5”x1.0” (100x65x25.5mm)
  • Weight: 0.61lbs (0.28 Kg) x 2 (Tx and Rx)
  • Helpful Tips & Recommendations:
    • CAT-5 cables should not exceed 330 feet or (100m).
    • Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
    • Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).
    • Do not use crossover cables, patch cables or Ethernet couplers to extend two CAT5 cables. This may damage the Tx & Rx.
    • If the power LED indicator on the Tx/Rx unit is not on, check to make sure that the CAT5 cables are not crossed i.e., Ethernet to Link instead of Ethernet to Ethernet.








Warranty HDTV Supply includes a 3 Year Limited Warranty on all Kanex Pro products. The warranty states that (a) its products (the will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the Product will be free from defects in materials & workmanship under normal use & service for a period of 3 years. In order to get a warranty replacement for a defective item, HDTV Supplys and Kanex Pros Support Team will verify the product is eligible for warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested and all components included.

HDTV Supply also sells a 5 Year Extended U.S. Warranty for this Long-Runner HDMI 100M Extender. Please go to Extended Warranties or see the above Options to purchase it.
