4x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet

4x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet
4x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet

4x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet - Extra Image 14x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet - Extra Image 24x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet - Extra Image 3
4x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet
4x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet
4x16 Network HDMI Matrix Switch Over CAT5 To 300 Feet



4x16 Network HDMI Matrix Switch over CAT5 to 300 Feet In & Out

Allows Expansion to 3 more HDMI Transmitters and/or HDMI Receivers

Control from a PC or MAC with the provided Browser Based GUI

Browser Based GUI prevents lose of settings in case of power failure

Order Information
Part Number:HDTVSXEX22-4x16
Extend 1 yr warranty to 3 or 5 yrs:
Buy 20 - $5 ea. HDMI cables here:
Price:$4,499.95
Today's price:$1,999.95 (You Save: 56%)
Availability:Usually ships the same business day
30 Day Returns
Live U.S. Telephone Tech Support
Same Day Shipping
135,000+ Items Shipped
100% Safe SSL Shopping
Choose From Over 4,000 Items
60,000+ Happy Customers
Over 6,800 ✭✭✭✭✭ Reviews
Free Lifetime Tech Support

Quantity:


HDTV Supplys

4x16 Network HDMI Matrix Switch

is a pre-configured matrix switch using 4 - Transmitters over IP and 16 - Receivers over IP with our 24 - port Ethernet Switch. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination. It is controlled by a PC or MAC via its LAN port with the supplied Browser Based GUI.

The base model of this 4x16 Network HDMI Matrix Switch is at Network HDMI Matrix Routers w/PC Control.

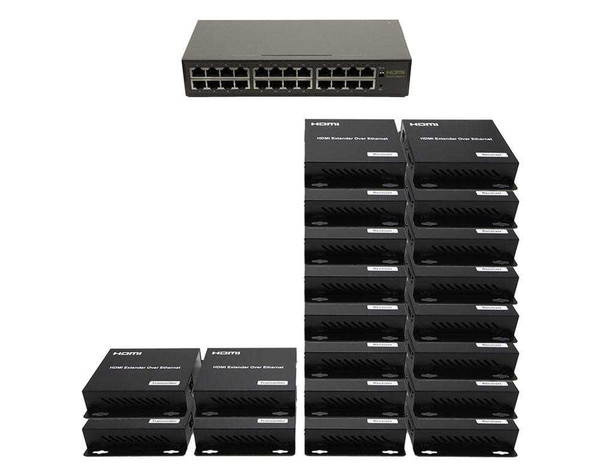

4x16 Network HDMI Matrix Switch Configuration:

  1. 4 - transmitters
  2. 16 - Receivers
  3. 24 - port Ethernet switch
  4. 21 - AC adapters

4x16 Network HDMI Matrix Switch Features:

  • Control from a PC or MAC with the Browser Based GUI provided
  • Compliant with HDCP 1.2.
  • Uses our off-the-shelf gigabit IP switches for extension and distribution.
  • Extends 1080p HDMI signals up to 300 feet over a single UTP Cat5e/6 cable.
  • Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN.
  • Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading .
  • Supports Point-to-Point, Point-to-Many and Many-to-Many network configuration.

Why not buy this 4x16 Network HDMI Matrix Switch over CAT5 today?




4x16 Network HDMI Matrix Switch Specs:

  • Supports default configuration which can be restored to overwrite the current configuration which is working on via Web GUI and Reset button of the switch.
  • Supports user management and limits one user to login.
  • 8K MAC addresses.
  • Full-duplex flow control (IEEE802.3x) and half-duplex backpressure.
  • Supports Unknown Unicast / Broadcast / Multicast Storm Control.

True HDMI High Speed Cables - All Lengths
True HDMI High Speed Cables - All Lengths

$9.95
4x1 Seamless HDMI Switcher with PIP
4x1 Seamless HDMI Switcher with PIP

Price: $1,749.95Today's price: $799.95
(You Save: 54%)
HDMI Splitter over IP
HDMI Splitter over IP

Price: $349.95Today's price: $299.95
(You Save: 14%)
Transmitter or Receiver for HDMI over IP
Transmitter or Receiver for HDMI over IP

Price: $164.95Today's price: $100.00
(You Save: 39%)




WolfPack 4K  8-16 HDMI Matrix Switcher - Card Cage Design
WolfPack 4K 8-16 HDMI Matrix Switcher - Card Cage Design

Price: $12,999.95Today's price: $4,999.95
(You Save: 62%)
HDMI Over IP Network - Configure as an HDMI Switch, Splitter or Matrix - You Design It
HDMI Over IP Network - Configure as an HDMI Switch, Splitter or Matrix - You Design It

Price: $499.95Today's price: $250.00
(You Save: 50%)


HDTV Supply has this provided in stock in our California warehouse so place your order at the above ADD TO CART button by 11AM PST and it can ship today or call us at 800-841-9238 to place your order.











Q: Does 4x16 Network HDMI Matrix Switch come with a remote control or front panel switches?
A:
No, it is controlled by a MAC or PC only via its LAN port to one of the RJ45 inputs on our Ethernet switch.

HDTV Supply includes a 1 Year Limited U.S. Warranty on this 4x16 Network HDMI Matrix Switch. The U.S. warranty states that (a) its 4x16 Network HDMI Matrix Switch will perform substantially in accordance with the accompanying written materials for a period of 1 year from the date of receipt & (b) that the Product will be free from defects in materials & workmanship under normal use & service for a period of 1 year. In order to get a warranty replacement for a defective item, HDTV Supplys Support Team will verify the product is eligible for warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested & all components included. A 30-day RETURN also comes with this warranty as well as Free Lifetime Tech Support.

HDTV Supply also sells a 3 and 5 Year Extended U.S. Warranty for this 4x16 Network HDMI Matrix Switch. Please go to Extended Warranties or see the above Options to purchase it.
