KanexPro EXT-AVIPH264TX NetworkAV over IP - H264 Transmitter 120M

KanexPro

Call for availability

Part Number:
EXT-AVIPH264TX
UPC:
813982021198
Availability:
Usually ships the same business day
1:
NetworkAV over IP - H264 Transmitter 120M
2:
Send HDMI® Audio & Video over an Ethernet network to multiple screens
3:
Transmitter over IP, POE & RS-232 , many to many
4:
Free Shipping & Free 3-Year Warranty
5:
Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support
KanexPro NetworkAV over IP - H264 Transmitter 120M

This KanexPro EXT-AVIPH264TX NetworkAV over IP - H264 Transmitter 120M is an AV over IP transmitter with an HDMI input and Ethernet out which uses advanced H.264 compression algorithm to transmit full HD 1080p from HDMI based sources with less bandwidth over LAN network. It supports PoE (power over Ethernet) with distances over a single CATx up to 394 ft. (120m) delivering one to one, one to many and many to many over the Ethernet switch.

Applications:

Ideal for digital signage and networked AV applications where full HD 1080p can be passed over IP network delivering full audio, video, power, data and control using a single Ethernet cable.

HDTV Supply is proud to be a Kanex Pro Authorized Reseller and provide a 3-YEAR WARRANTY at no cost to you. HDTV Supply also will Price Match if you find a lower price from an Authorized Kanex Pro Reseller conforming to the specs on this product page. All Kanex Pro products come with insured FREE SHIPPING together with Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support.

KanexPro NetworkAV over IP - H264 Transmitter 120M

  • Encode and extend pure 1080p resolutions up to 394' / 120 meters
  • Features real-time AV coding and decoding to broadcast 1080p
  • H.264 Compression technology
  • Can be used with DVI connection
  • Supports one to many, many to many and point to point broadcasting
  • Dual power input: 802.3af compliant w/ POE & DC 5V
  • (No need power supply when connecting with POE Switch)
  • Can be cascaded to multiple AV over IP Extenders
  • Support LPCM audio format
  • Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
  • Wide-band IR pass through to control the source (38khz to 56khz)
  • By pass 2 - way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate
  • Support one to one, one to many, many to one, many to many modes, with large cascadin

Why not buy this KanexPro NetworkAV over IP - H264 Transmitter 120M today?

KanexPro NetworkAV over IP - H264 Transmitter 120M

  • Performance
    • Protocol: H.264 encoder over TCP/IP
    • Supported Video formats: 480i/480p/576i/576p/720p/1080i/1080p@60HZ
    • Supported Audio formats: LPCM, Audio sampling rate 48KHz
    • Streaming Bit Rate: 15Mbps
    • HDCP Compliant
    • IR Frequency 38 -56 KHz
    • RS232 Baud rate: Default 2400bps, total 8 options
  • IP setting & Group ID settings:
    • Default IP:
      • TX: 192.168.1.11
      • RX: 192.168.1.12
      • Group ID Group 00 ~ group 63
      • Request for Switch/Router Support: IGMP, supports DHCP

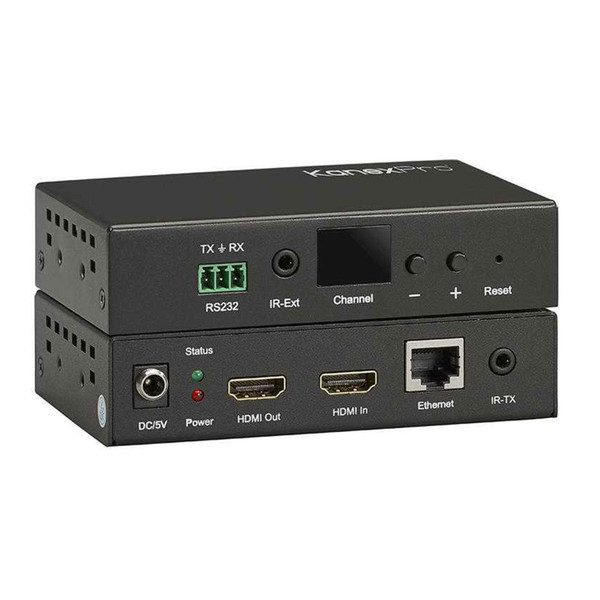

    • Connectors on Transmitter
      • Input 1xHDMI Female port
      • Output 1x RJ45 output, 1x HDMI looping output
      • RS232 Phoenix RS232 port IR IR TX port (Support 38K-56KHz)
      • IR Ext port (Support 38KHz)
    • Connectors on Receiver
      • Input 1xRJ45 input
      • Output 1x HDMI Female port looping output
      • RS232 Phoenix RS232 port
      • IR IR RX port (Support 38K-56KHz)
      • IR Ext port (Support 38KHz)
    • Environmental & Power Requirements
      • Operating temperature: -5 to +35 C (+23 to +95 F)
      • Operating Humidity Range: 5 to 90%RH (No Condensation)
      • Power supply: DC 5V 1A
      • Power consumption: Max 3 watts
    • Physical Dimensions:
      • Tx:119x79.5x28mm
      • Rx: 119x79.5x28mm
      • Net Weight TX: 0.28Kg RX:0.28Kg
  • Supported Input Resolutions:
    • 50Hz
      • 576i
      • 576P
      • 720P
      • 1080P
      • 1080i
    • 60Hz/59.94Hz
      • 480i
      • 480P
      • 720P
      • 1080P
    • 30Hz/29.97Hz: 1080P
    • 24Hz: 1080P
    • 25Hz: 1080P
  • VESA Resolutions:
    • 50Hz
      • 576i
      • 576P
      • 720P
      • 1080P
      • 1080i
    • 60Hz/59.94Hz
      • 480i
      • 480P
      • 720P
      • 1080P
    • 30Hz/29.97Hz: 1080P
    • 24Hz: 1080P
    • 25Hz: 1080P
  • Helpful Tips & Recommendations:
    • Solid core CAT5e/6 or greater with TIA/ EIA-568B crimp pattern
    • Do not share ground connection with display
    • Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).
    • If the power LED indicator on the Tx/Rx unit is not on, check to make sure that the CAT5/6 cables are not crossed i.e., Ethernet to Link instead of Ethernet to Ethernet.
